T8-DC Converter

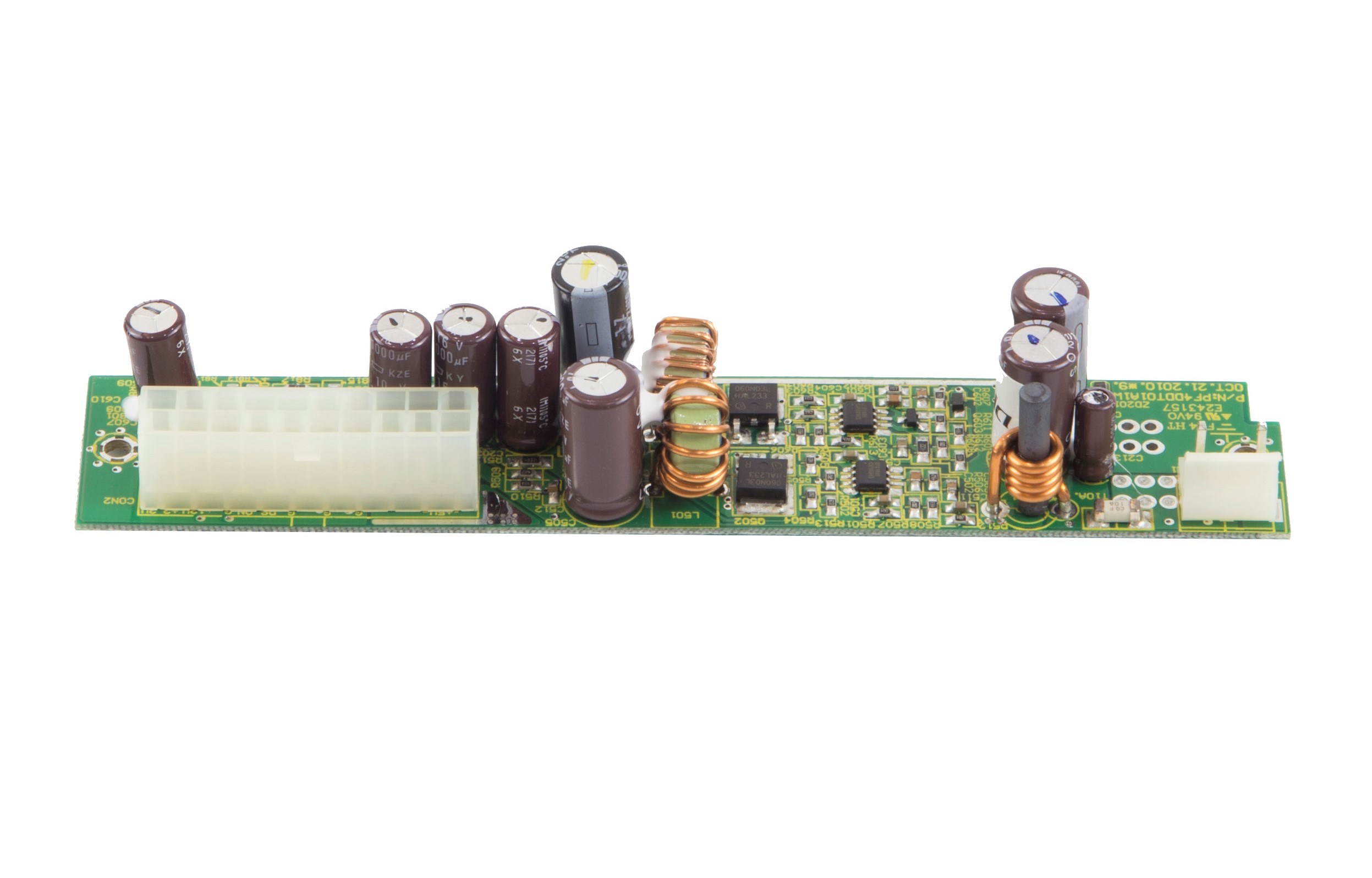

DC-DC CONVERTER BOARD - T8
P/N: 02110080003A1
P/N: 02110080003A1
| Input Required/Range | 11.5 ~ 12.7V | ||||
| Vout (Vdc) | +3.3 | +5 | +5VSB | 12 | -12 |
| Max Output Current (A) | 5A | 6A | 1A | 2.3A | 0.1A |
| Output Wattage (W) | 16.5W | 30W | 5W | 27.6W | 1.2W |
| Total Output Wattage (Max) | 80.3W | ||||
| PCB Dimension | 30.00mm(W) x 156.30mm(L) | ||||
