C4-DC Converter

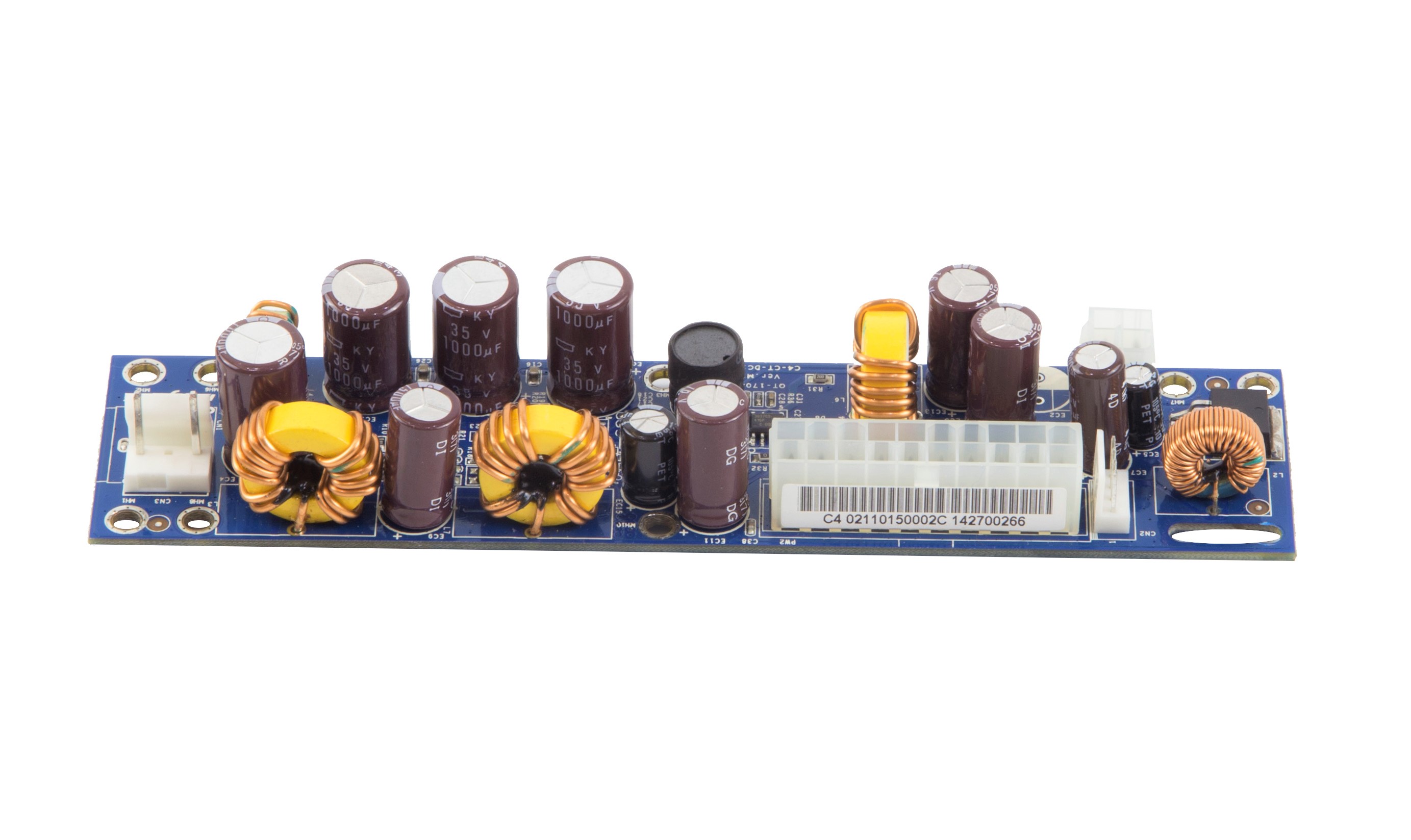

DC-DC CONVERTER BOARD - C4
P/N: 02110150002C
P/N: 02110150002C
· Low profile, single board construction
· Low cost, high reliability
· High efficiency
· Low working temperature
· Noiseless
· Built-in EMI filter, low ripple noise
· Standard PC connection, wiring interface
· 100% full load burn-in test
· Short Circuit/ Over load/ Over voltage protection
· 1 year warranty
· Low cost, high reliability
· High efficiency
· Low working temperature
· Noiseless
· Built-in EMI filter, low ripple noise
· Standard PC connection, wiring interface
· 100% full load burn-in test
· Short Circuit/ Over load/ Over voltage protection
· 1 year warranty
| Input Required/Range | 19 ~ 24V | ||||
| Vout(Vdc) | +3.3 | +5 | +5VSB | 12 | -12 |
| Max Output Current (A) | 5A | 8A | 3A | 8A | 60mA |
| Output Wattage (W) | 16.5W | 40W | 15W | 96W | 0.72W |
| Total Output Wattage (Max) | 150W | ||||
| PCB Dimension | 45.00mm(W) x 170.00mm(L) | ||||
