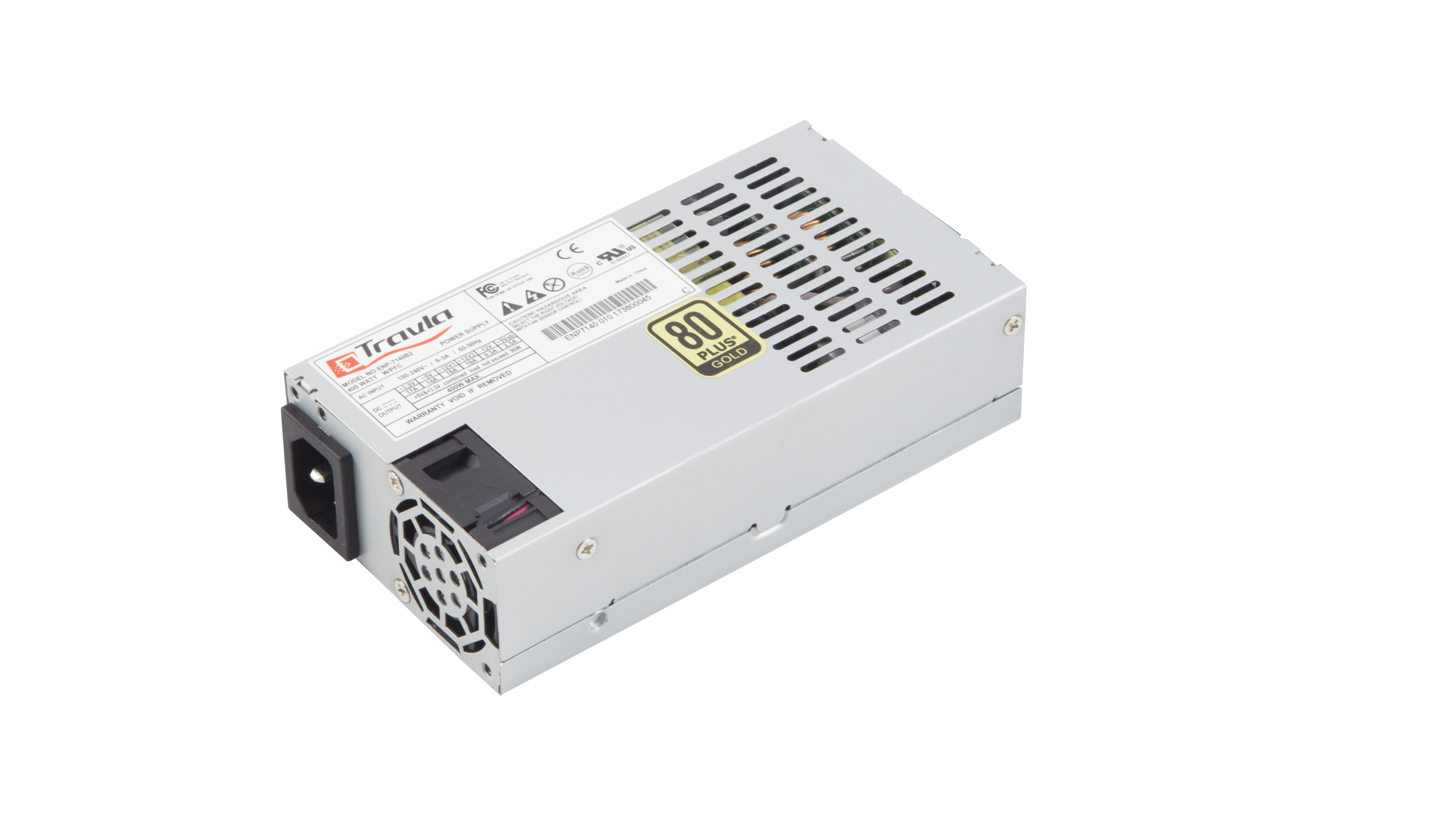

Flex-ATX 400W PSU

· Suitable for 1U/TFX/Flex-ATX Form-Factor
· Active PFC
· Universal AC Input Voltage
· Ultra Quiet Fan Speed Control Design
· Low Acoustic Noise
· Support Intel Core2 & Quad Core CPUs.
· Multiple Protection (OCP/OVP/OTP/OPP/UVP/SCP/No load operation/Brownout protection)
· High Quality Capacitors
· High Reliability MTBF>100,00 at 25 Degree Celsius
· 80 Plus Gold



Input Frequency	50 / 60 Hz
In-rush current, cold start	91A/115V
Hold up time, full load	16 mS typical
Efficiency: 220-240VAC, full load	87% typical
Efficiency: 100-120VAC, and full range	87% typical +/-1%
Dielectric withstand, input to frame/ground	1800VAC
Dielectric withstand, input to output	1800VAC
Line regulation	+/-5%, -12V / +-10%
Load regulation	+/-5%, -12V / +-10%
Cross regulation	+/-5%, -12V / +-10%
Ripple / noise	1%
MTBF, full load @ 25 C amb.	>100K hrs. (will vary w/fan type)
Active PFC, full load	>0.9



AC INPUT	100-240V 7A~ 3.5A 50 / 60Hz
DC OUTPUT	+3.3V	+5V	+12V1	+12V2	-12V	+5Vsb
	17A	14A	18A	18A	0.3A	2.5A
	90W Max.		400W Max.(not exceed)		-
