C7-DC Converter

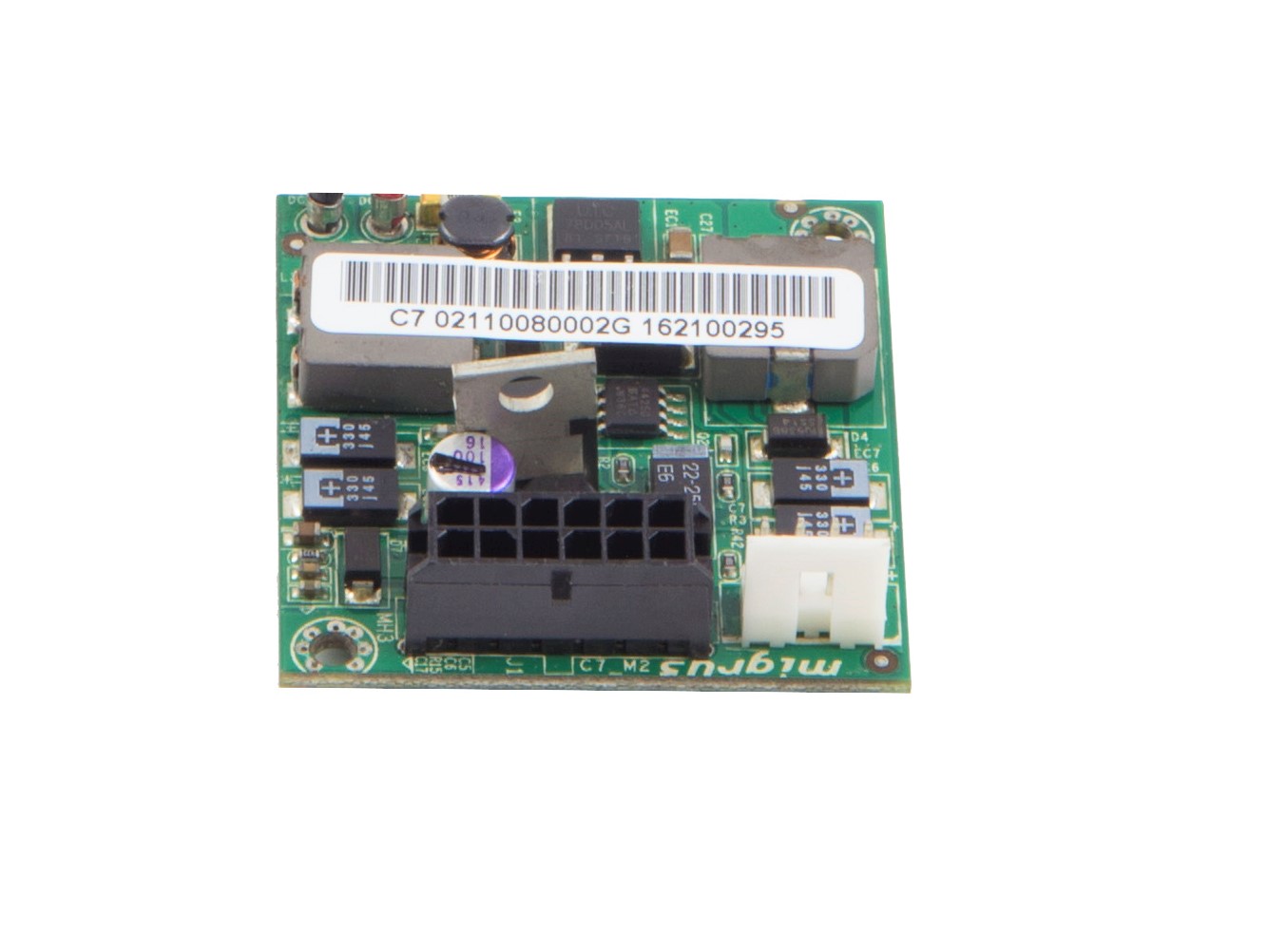

DC-DC CONVERTER BOARD - C7
P/N: 82110080002G
P/N: 82110080002G
· Low profile, single board construction
· Low cost, high reliability
· High efficiency
· Low working temperature
· Noiseless
· Built-in EMI filter, low ripple noise
· Standard PC connection, wiring interface
· 100% full load burn-in test
· Short Circuit/ Over load/ Over voltage protection
· 1 year warranty
· Low cost, high reliability
· High efficiency
· Low working temperature
· Noiseless
· Built-in EMI filter, low ripple noise
· Standard PC connection, wiring interface
· 100% full load burn-in test
· Short Circuit/ Over load/ Over voltage protection
· 1 year warranty
| Input Required/Range | 11.5 ~ 12.7V | ||||
| Vout(Vdc) | +3.3 | +5 | +5VSB | 12 | -12 |
| Max Output Current (A) | 6A | 6A | 1A | 2A | 1.2A |
| Output Wattage (W) | 19.8W | 30W | 5W | 24W | 14.4W |
| Total Output Wattage (Max) | 80W | ||||
| PCB Dimension | 48.45mm(W) x 45.00mm(L) | ||||
