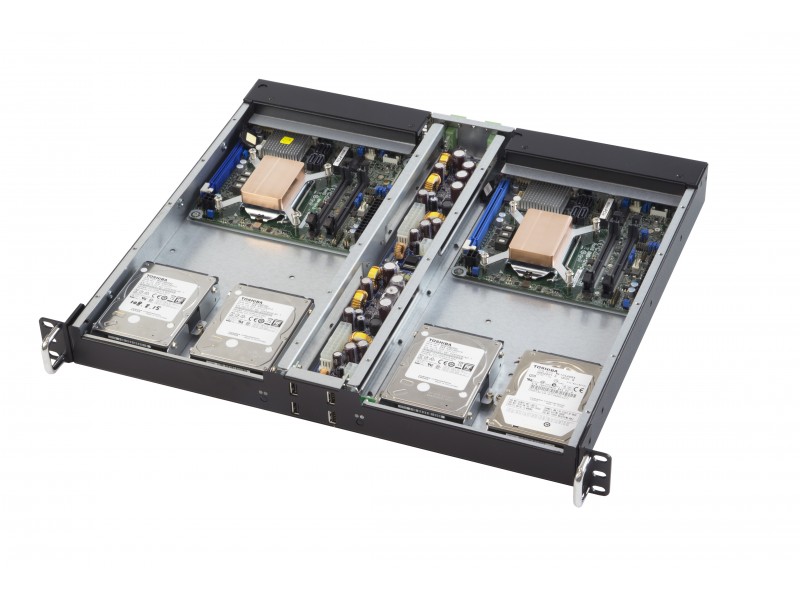

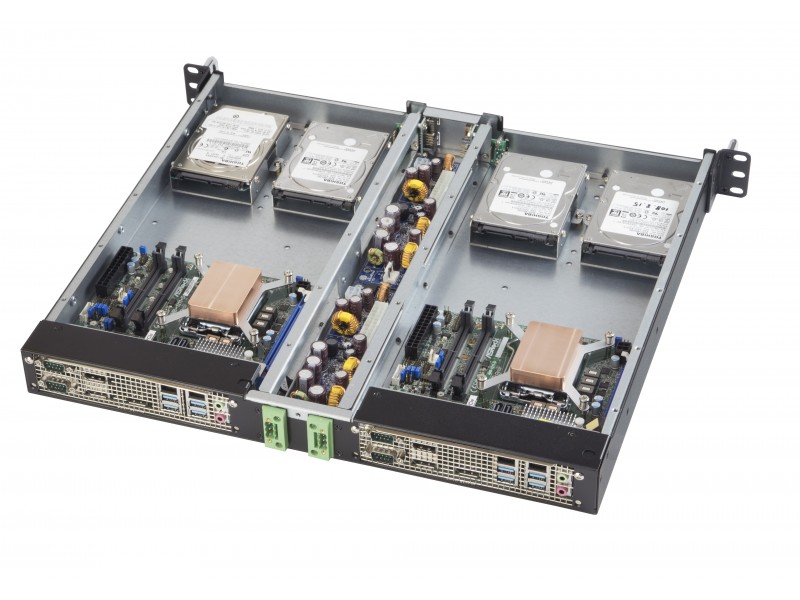

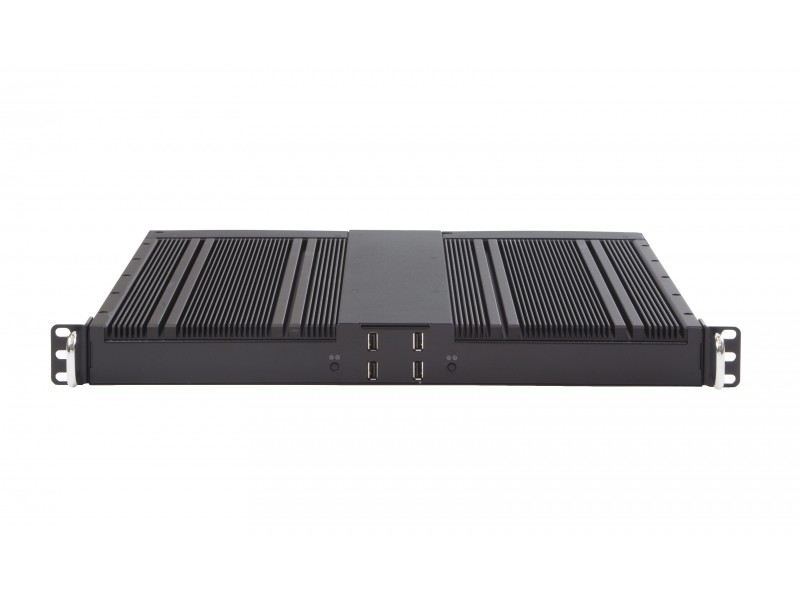

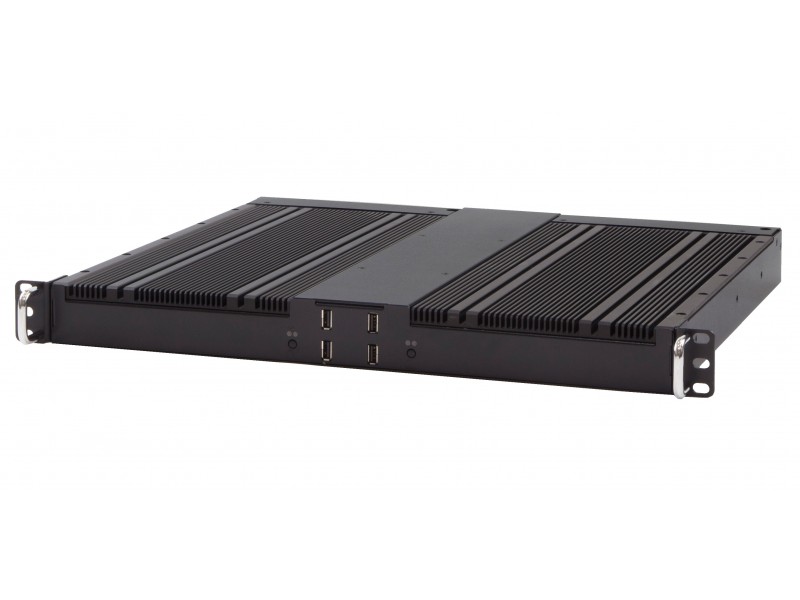

FU-F1200
1U Fanless Rackmount Chassis for Two Mini-ITX Systems
· Compatible with more than one Mini-ITX form factor MB to maximize and utilize for the business
· Easy system integration
· Dual extensive aluminum-made heatsinks
· Supports 2.5" HDD x8
· Heatsink for each system CPU: TDP 35W
· Compatible with more than one Mini-ITX form factor MB to maximize and utilize for the business
· Easy system integration
· Dual extensive aluminum-made heatsinks
· Supports 2.5" HDD x8
· Heatsink for each system CPU: TDP 35W
Specification
| Front Panel | |
| Power Switch | 2 |
| LED Indicators | HDD x2; Power x2 |
| USB Port | 4 |
| Back Panel | |
| Standard I/O Shield | Standard I/O Shield x2 |
| Internal Structure | |
| HDD/SSD # and type | 2.5" x8 |
| Mechanical & Processing | |
| Dimensions | W:19.00"(482.8mm) x D:16.10"(409.0mm) x H:1.73"(44.45mm) |
| Applied M/B Form Factor | Mini-ITX MB x2 |
| Material | SGCC |
| Surface | Black Wet Paint with Texture Coat |
| Colour | Black / Customizable Colour |
| Power Solution Option 1 | |
| Internal DC Power Board | C7(80W) DC Power Board |
| External AC Adapter | 80W: Input(AC 100~240V); Output(DC 12V@6.67A) |
| Power Solution Option 2 | |
| Internal DC Power Board | C4(150W) DC Power Board |
| External AC Adapter | 120W: Input(AC 100~240V); Output(DC 19V@6.32A) |
