Front Panel | |
Power Switch | 2 |
LED Indicators | HDD x2; Power x2 |
USB Port | 4 |
HDD/SSD # and type | 2.5" x4 |
Back Panel | |
Standard I/O Shield | Standard I/O Shield x2 |

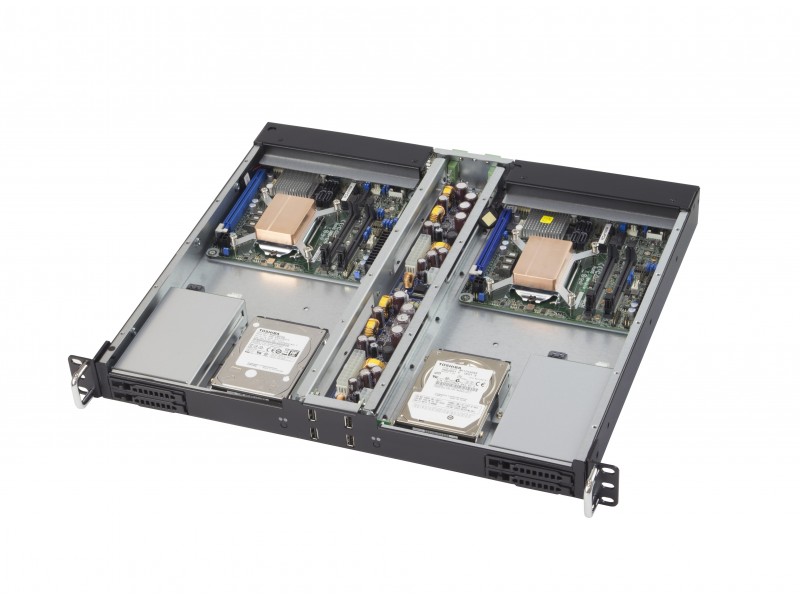

Internal Structure | |
HDD/SSD # and type | 2.5" x4 |
Mechanical & Processing | |
Dimensions | W:19.00"(482.8mm) x D:16.10"(409.0mm) x H:1.73"(44.45mm) |
Applied M/B Form Factor | Mini-ITX MB x2 |
Material | SGCC |
Surface | Black Wet Paint with Texture Coat |
Colour | Black / Customizable Colour |
Power Solution Option 1 | |
Internal DC Power Board | C7(80W) DC Power Board |
External AC Adapter | 80W: Input(AC 100~240V); Output(DC 12V@6.67A) |
Power Solution Option 2 | |
Internal DC Power Board | C4(150W) DC Power Board |
External AC Adapter | 120W: Input(AC 100~240V); Output(DC 19V@6.32A) |
