FU-F2320


2U Fanless Rackmount Chassis for Micro-ATX MB with CPU TDP 35W Max

· Adjustable heat pipe solution provides excellent compatibility
· Support 3 x expansion slot for PCIe or PCI Card
· Support 2 x 2.5" SATA tray
· Support Slim ODD



Specification

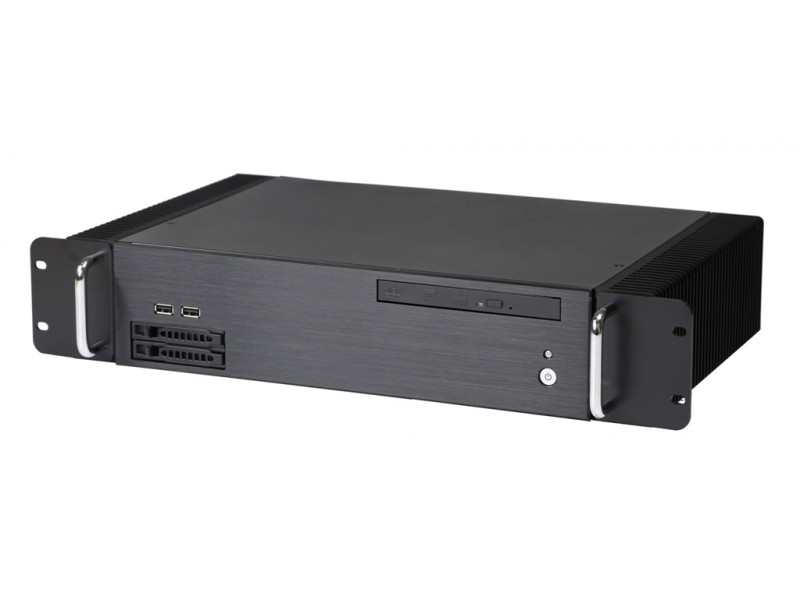

Front Panel
Power Switch 1
LED Indicators HDD x1; Power x1
USB 2.0 Port 2
Slim Optical Drive 1
HDD/SSD # and type 2.5" x2

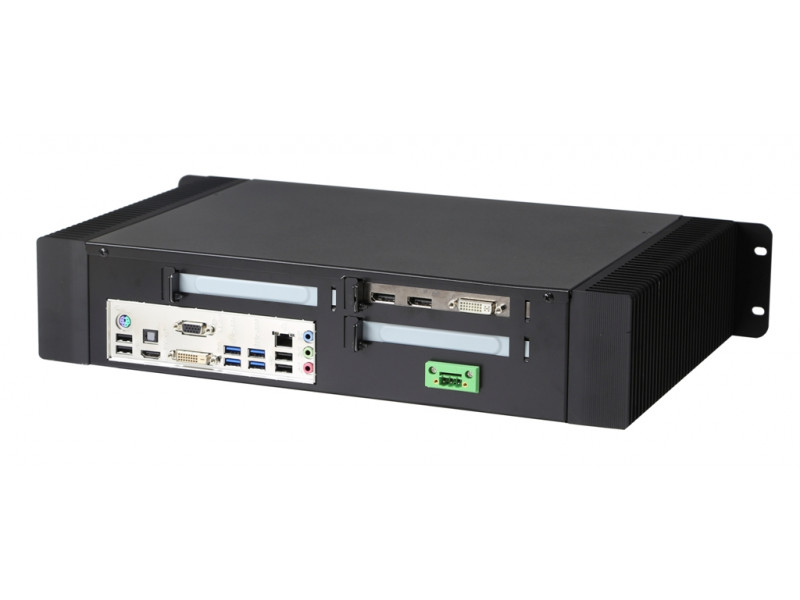

Back Panel
Standard I/O Shield 1(Not Included)
Expansion Slot 3
Terminal Block 1
Internal Structure
Heat-transfer Device Adjustable Heat Pipe Solution
Memory Height Accept Standard Size
HDD/SSD # and type 2.5" x1
Mechanical & Processing
Dimensions W:19.00"(482.80mm) x D:10.53"(267.55mm) x H:3.46"(88.00mm)
Applied M/B Form Factor      Micro-ATX
Material SGCC and Anodized Aluminum Panel
Surface Black Wet Paint with Texture Coat
Colour Black / Customizable Colour
Power Solution Option 1
Internal DC Power Board C4(150W, 19V~24V) DC Power Board
External AC Adapter 90W: Input(AC 100~240V); Output(DC 19V@4.74A)
Power Solution Option 2
Internal DC Power Board C4(150W, 19V~24V) DC Power Board
External AC Adapter 120W: Input(AC 100~240V); Output(DC 19V@6.32A)
