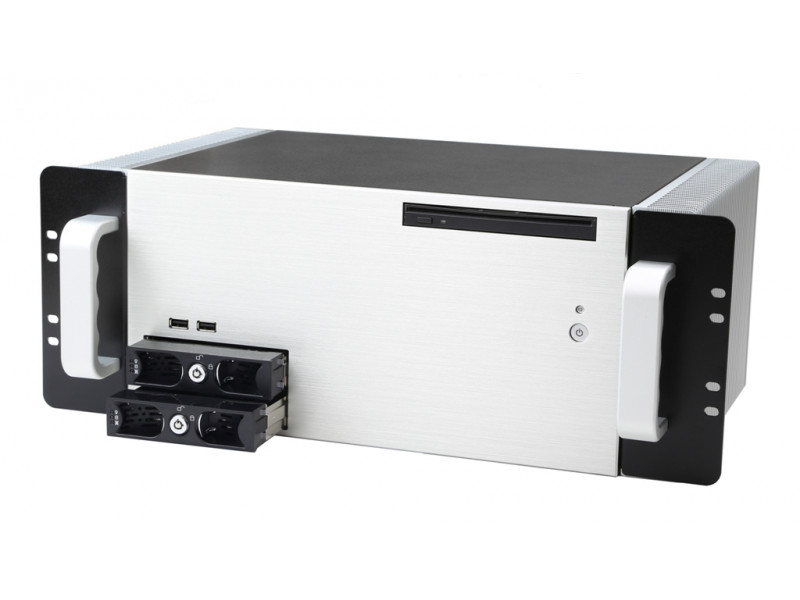

FU-F4120
4U Fanless Rackmount Chassis for Mini-ITX MB with CPU TDP 75W Max
· Adjustable heat pipe solution provides excellent compatibility
· Support 2 x 3.5" SATA tray · Support 3 x expansion slot for PCIe or PCI Card
· Support Slim ODD and IR Receiver(Optional)
· Adjustable heat pipe solution provides excellent compatibility
· Support 2 x 3.5" SATA tray · Support 3 x expansion slot for PCIe or PCI Card
· Support Slim ODD and IR Receiver(Optional)
Specification
| Front Panel | |
| Power Switch | 1 |
| LED Indicators | HDD x1; Power x1 |
| USB 2.0 Port | 2 |
| Slim Optical Drive | 1 |
| IR Receiver | 1(Optional) |
| HDD/SSD # and type | 3.5" x2 |

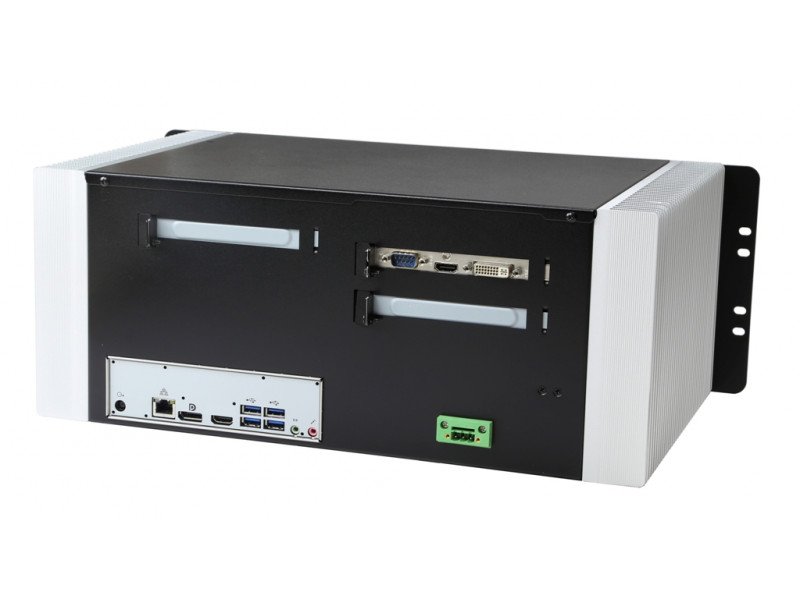

| Back Panel | |
| Standard I/O Shield | 1(Not Included) |
| Expansion Slot | 3 |
| Terminal Block | 1 |
| Internal Structure | |

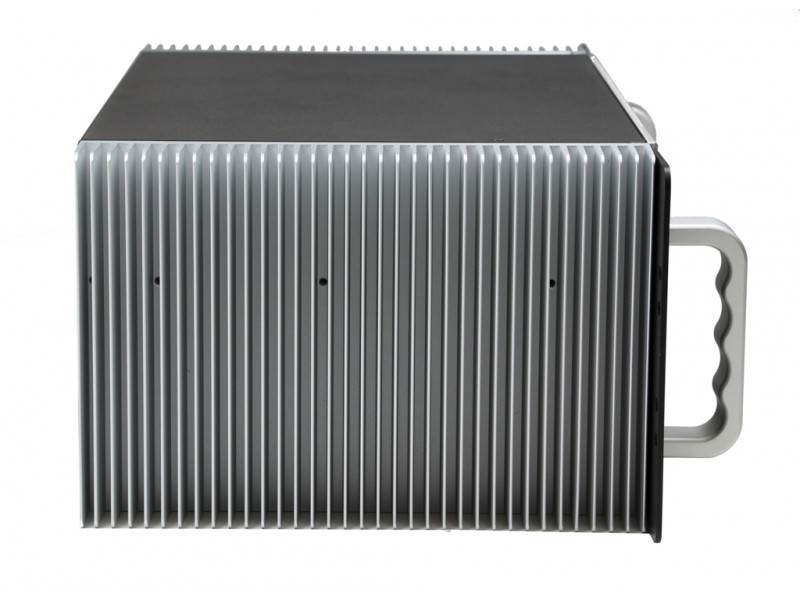

| Heat-transfer Device | Adjustable Heat Pipe Solution |
| Memory Height | Accept Standard Size |
| HDD/SSD # and type | 2.5" x1 |
| Mechanical & Processing | |
| Dimensions | W:19.00"(482.80mm) x D:10.53"(267.55mm) x H:6.93"(176.00mm) |
| Applied M/B Form Factor | Mini-ITX |
| Material |
SGCC and Anodized Aluminum Panel |
| Surface | Black Wet Paint with Texture Coat |
| Colour | Black / Customizable Colour |
| Power Solution Option 1 | |
| Internal DC Power Board | C4(150W, 19V~24V) DC Power Board |
| External AC Adapter | 90W: Input(AC 100~240V); Output(DC 19V@4.74A) |
| Power Solution Option 2 | |
| Internal DC Power Board | C4(150W, 19V~24V) DC Power Board |
| External AC Adapter | 120W: Input(AC 100~240V); Output(DC 19V@6.32A) |
