HAKO-C100
The Most Handy, Space-saving Enclosure that Supports All VIA Pico-ITX Board
· Thermal Solution Consideration
· Support 1 x 2.5" HDD
· Aluminum front panel with anodized surface treatment
· Thermal Solution Consideration
· Support 1 x 2.5" HDD
· Aluminum front panel with anodized surface treatment
Specification

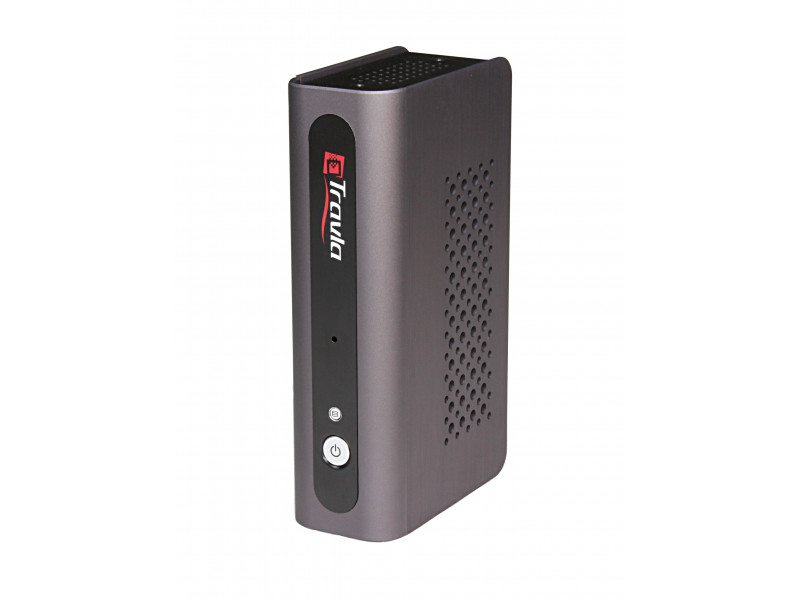

| Front Panel | |
| Power Switch | 1(With LED Indicator) |
| LED Indicators | HDD x1 |

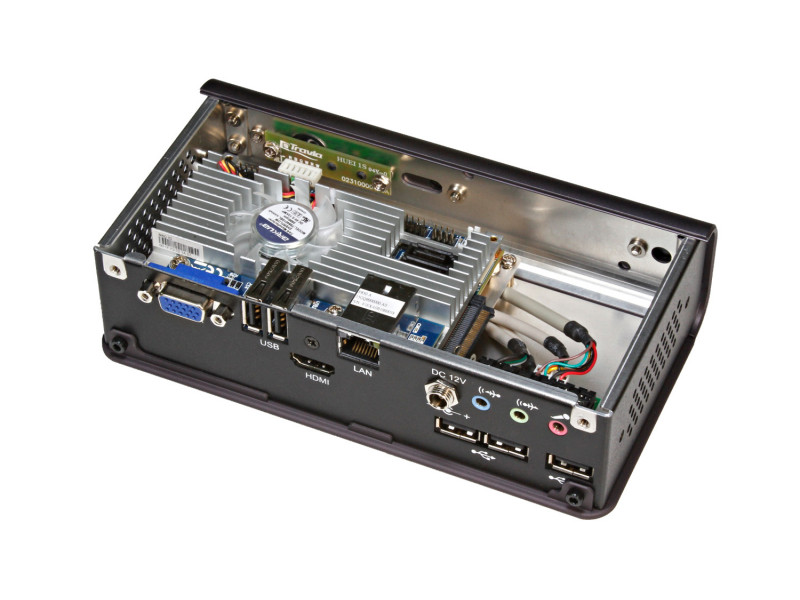

| Back Panel | |
| Standard I/O Shield | Customized I/O Shield |
| Audio In/Out | 1 |
| USB Port | 3 |
| Internal Structure | |
| HDD/SSD # and type | 2.5" x1 |
| Mechanical & Processing | |
| Dimensions | L:6.89" (175mm) x W:3.79" (96.15mm) x H:1.83" (46.60mm) |
| Applied M/B Form Factor | Pico-ITX |
| Material | Aluminum |
| Surface | Anodized |
| Colour | Customizable Colour |
| Power Solution Option | |
| Internal DC Power Board | C7(80W) DC Power Board |
| External AC Adapter | 60W: Input (AC 100~240V); Output (DC 12V@5A) |
