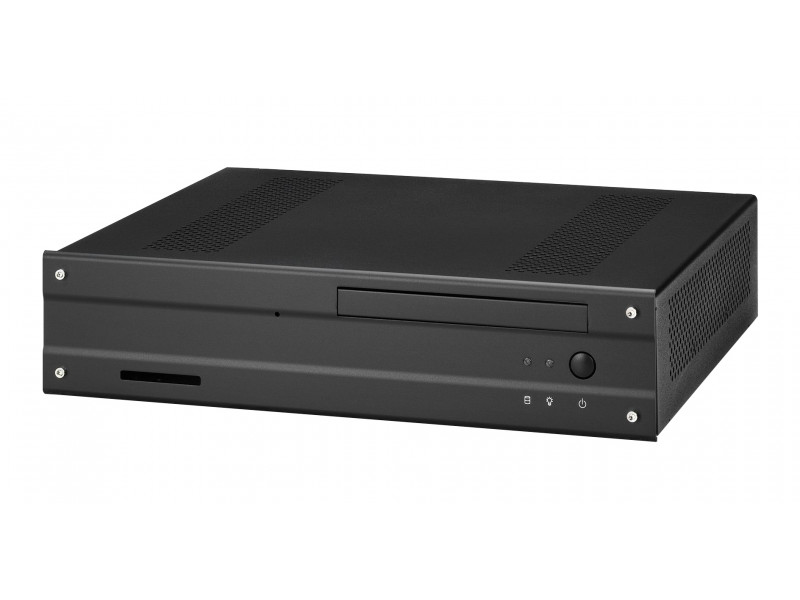

HAKO-C137
Mini-ITX Enclosure with with 2 Expansion Slots
· Easy integration, powerful performance
· Front accessible Compact Clash(optional)
· Front accessible with slim ODD(optional)
· Stylish Design Aluminum Extruded Front Panel
· Easy integration, powerful performance
· Front accessible Compact Clash(optional)
· Front accessible with slim ODD(optional)
· Stylish Design Aluminum Extruded Front Panel
Specification
| Front Panel | |
| Power Switch | 1(With LED Indicator) |
| LED Indicators | HDD x1 |
| Slim Optical Drive Slot | 1 |
| Compact Flash Slot | 1 |
| Back Panel | |
| Standard I/O Shield | 1(Not Included) |
| Expansion Slot | 2 |
| Extra Mounting Port | RS-232 x2 |

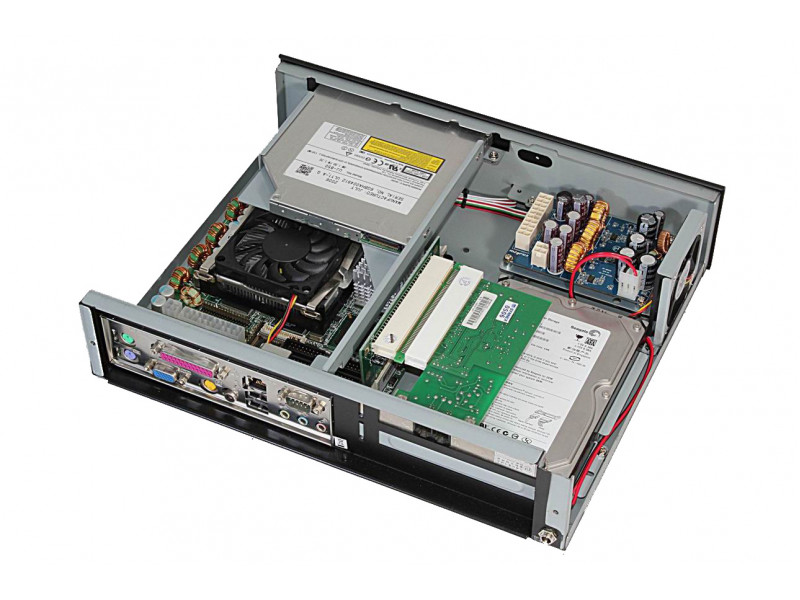

| Internal Structure | |
| System Cooling | 6cm Fan(2 Ball Bearing) x1 |
| Memory Height | Accept Standard Size |
| HDD/SSD # and type |
2.5" x1 or 3.5"x1(When Slim Optical Drive Isn't Installed) |
| Mechanical & Processing | |
| Dimensions | W:12.7"(322.58mm) x D:10"(254mm) x H:2.7"(68.58mm) |
| Applied M/B Form Factor | Mini-ITX |
| Material | Cold Rolled Steel and Extruded Aluminum Front Panel |
| Surface | Aluminum Front Panel with Anodized Finish, Black Wet Paint with Texture Coat |
| Colour | Black / Customizable Colour |
| Power Solution Option 1 | |
| Internal DC Power Board | C7(80W) DC Power Board |
| External AC Adapter | 60W: Input (AC 100~240V); Output (DC 12V@5A) |
| Power Solution Option 2 | |
| Internal DC Power Board | C7(80W) DC Power Board |
| External AC Adapter | 80W: Input (AC 100~240V); Output (DC 12V@6.67A) |
| Power Solution Option 3 | |
| Internal DC Power Board | C5 (150W, 19V~24V) DC Power Board |
| External AC Adapter | 90W: Input (AC 100~240V); Output (DC 19V@4.74A) |
| Power Solution Option 4 | |
| Internal DC Power Board | C5 (150W, 19V~24V) DC Power Board |
| External AC Adapter | 120W: Input (AC 100~240V); Output (DC 19V@6.32A) |
