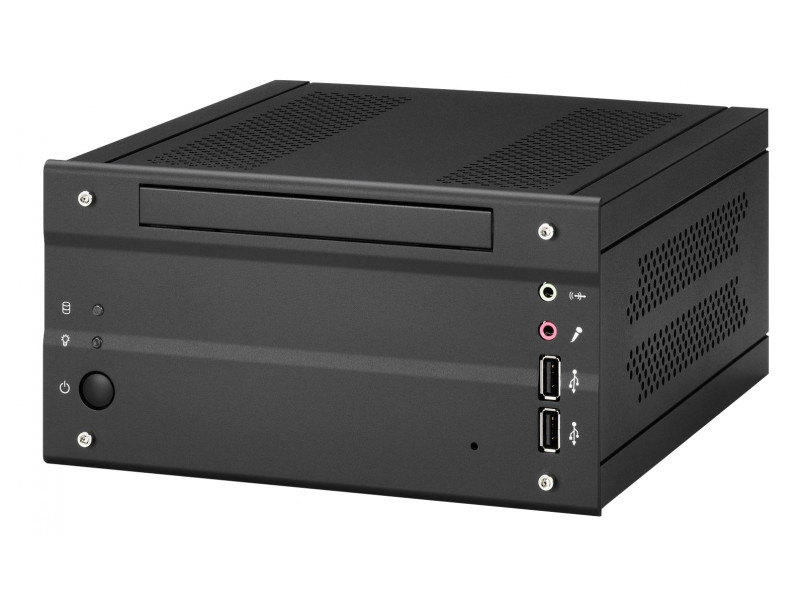

Front Panel | |
Power Switch | 1(With LED Indicator) |
LED Indicators | HDD x1 |
Audio In/Out | 1 |
USB Port | 2 |
Slim Optical Drive Slot | 1 |
Compact Flash Slot | 1 |

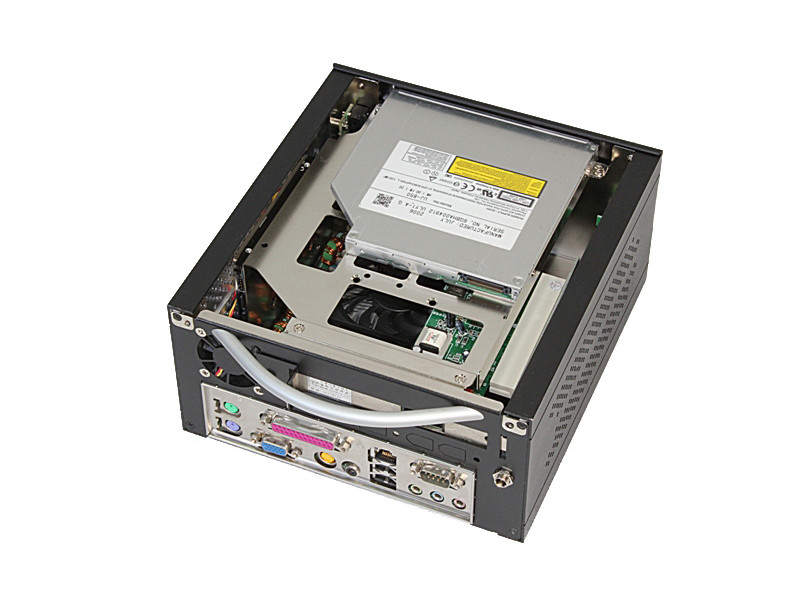

Back Panel | |
Standard I/O Shield | 1(Not Included) |
Expansion Slot | 2 |
Extra Mounting Port | RS-232 x2 |
Internal Structure | |
System Cooling | 6cm Fan(2 Ball Bearing) x1 |
Memory Height | Accept Standard Size |
HDD/SSD # and type |
2.5" x3 and 3.5"x1(When Expansion Card Isn't Installed) |
Mechanical & Processing | |
Dimensions | W:8"(202.9mm) x D:8.6"(217.4mm) x H:4.2"(106mm) |
Applied M/B Form Factor | Mini-ITX |
Material | Cold Rolled Steel and Extruded Aluminum Front Panel |
Surface | Aluminum Front Panel with Anodized Finish, Black Wet Paint with Texture Coat |
Colour | Black / Customizable Colour |
Power Solution Option 1 | |
Internal DC Power Board | C7(80W) DC Power Board |
External AC Adapter | 60W: Input(AC 100~240V); Output(DC 12V@5A) |
Power Solution Option 2 | |
Internal DC Power Board | C7(80W) DC Power Board |
External AC Adapter | 80W: Input(AC 100~240V); Output(DC 12V@6.67A) |
Power Solution Option 3 | |
Internal DC Power Board | C5(150W, 19V~24V) DC Power Board |
External AC Adapter | 90W: Input(AC 100~240V); Output(DC 19V@4.74A) |
Power Solution Option 4 | |
Internal DC Power Board | C5(150W, 19V~24V) DC Power Board |
External AC Adapter | 120W: Input(AC 100~240V); Output(DC 19V@6.32A) |
