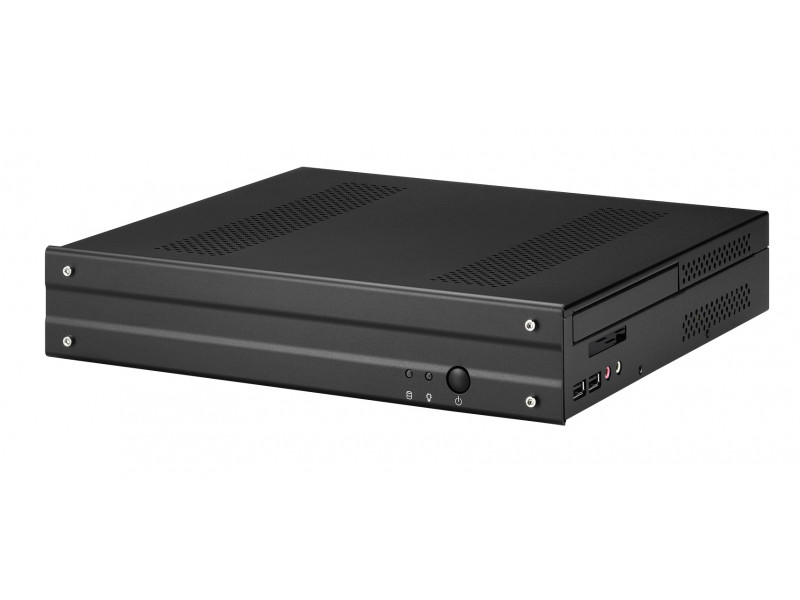

HAKO-C158
Mini-ITX Enclosure with with 2 Expansion Slot
· Support slim ODD + CF reader slot on side panel
· Excellent cooling with 1 x 4cm fan(2 ball bearing)
· Support slim ODD + CF reader slot on side panel
· Excellent cooling with 1 x 4cm fan(2 ball bearing)
Specification
| Front Panel | |
| Power Switch | 1 |
| LED Indicators | HDD x1; Power x1 |
| Side Panel | |
| Audio In/Out | 1 |
| USB Port | 2 |
| Slim Optical Drive Slot | 1 |
| Compact Flash Slot | 1 |
| Back Panel | |
| Standard I/O Shield | 1(Not Included) |
| Expansion Slot | 1(Maximum Length to 6.5"/165mm) |
| Extra Mounting Port | RS-232 x3 |

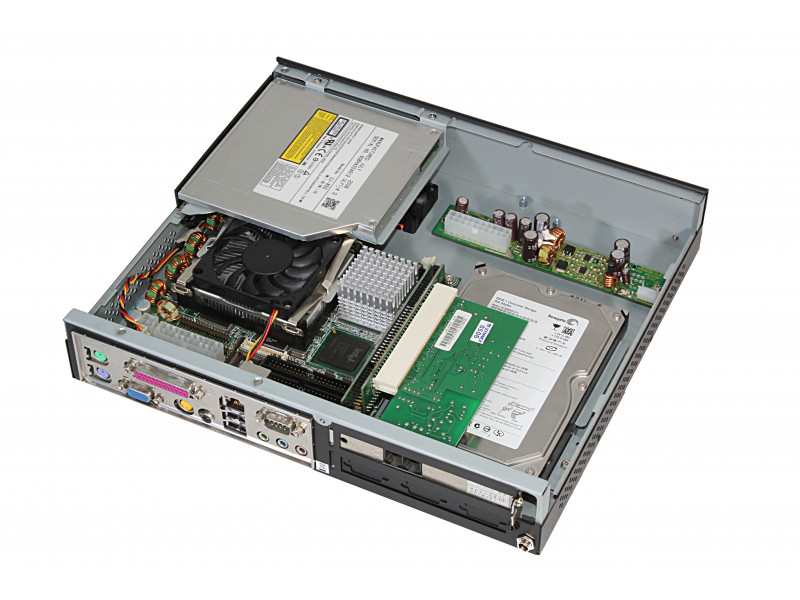

| Internal Structure | |
| System Cooling | 4cm Fan(2 Ball Bearing) x1 |
| Memory Height | Specific to 1.25" Height |
| HDD/SSD # and type | 3.5" x1 |
| Mechanical & Processing | |
| Dimensions | W:12.00"(305mm) x D:11.00"(279mm) x H:2.10"(54mm) |
| Applied M/B Form Factor | Mini-ITX |
| Material | Cold Rolled Steel and Extruded Aluminum Front Panel |
| Surface | Aluminum Front Panel with Anodized Finish, Black Wet Paint with Texture Coat |
| Colour | Black / Customizable Colour |
| Power Solution Option 1 | |
| Internal DC Power Board | C7 (80W) DC Power Board |
| External AC Adapter | 60W: Input (AC 100~240V); Output (DC 12V@5A) |
| Power Solution Option 2 | |
| Internal DC Power Board | C7 (80W) DC Power Board |
| External AC Adapter | 80W: Input(AC 100~240V); Output(DC 12V@6.67A) |
| Power Solution Option 3 | |
| Internal DC Power Board | C4 (150W, 19V~24V) DC Power Board |
| External AC Adapter | 90W: Input (AC 100~240V); Output (DC 19V@4.74A) |
| Power Solution Option 4 | |
| Internal DC Power Board | C4 (150W, 19V~24V) DC Power Board |
| External AC Adapter | 120W: Input (AC 100~240V); Output (DC 19V@6.32A) |
