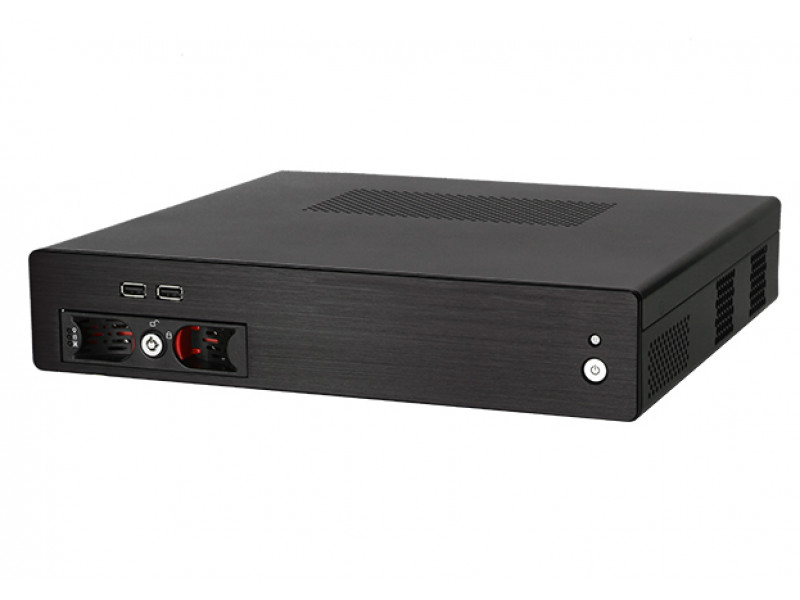

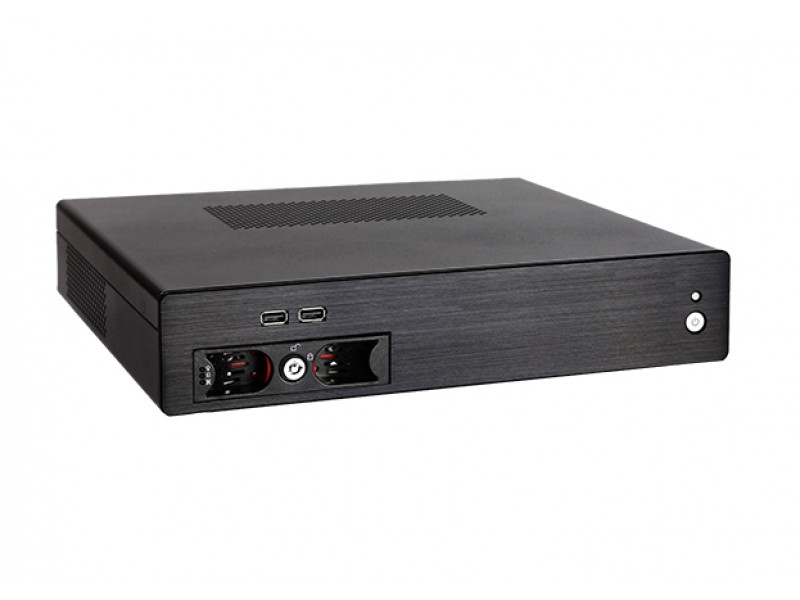

HAKO-C204
Mini-ITX Enclosure with with 2 Expansion Slot
· Support 1 x 3.5" HDD tray
· 3 x DB port on rear panel
· Excellent cooling with 2 x 4cm fan(2 ball bearing)
· Support 1 x 3.5" HDD tray
· 3 x DB port on rear panel
· Excellent cooling with 2 x 4cm fan(2 ball bearing)
Specification
| Front Panel | |
| Power Switch | 1(With LED Indicator) |
| LED Indicators | HDD x1 |
| USB Port | 2 |
| HDD/SSD # and type | 3.5" x1 |
| Back Panel | |
| Standard I/O Shield | 1(Not Included) |
| Expansion Slot | 2 |
| DB9 Port | 3 |

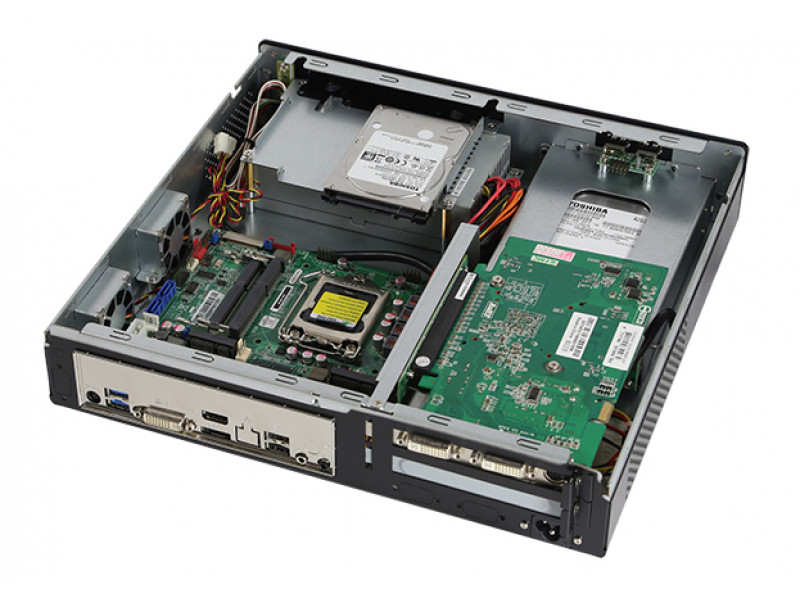

| Internal Structure | |
| System Cooling | 4cm Fan(2 Ball Bearing) x2 |
| Memory Height | Accept Standard Size |
| HDD/SSD # and type | 2.5" x2 |
| Mechanical & Processing | |
| Dimensions | W:13.10" (333.8mm) x D:12.10" (307.6mm) x H:2.57" (65.3mm) |
| Applied M/B Form Factor | Mini-ITX |
| Material | Cold Rolled Steel and Extruded Aluminum Front Panel |
| Surface | Aluminum Front Panel with Anodized Finish, Black Wet Paint with Texture Coat |
| Colour | Black / Customizable Colour |
| Power Solution Option | |
| Flex ATX Power Supply | Flex ATX 250/300/400watts Power Supply(AC 110~240V Auto-switching) |
