HAKO-C287

Mini-ITX Enclosure with Slim ODD on Front Panel
· Support up to 2 x 2.5" HDD
· Excellent cooling with maximum of 2 x 6cm fan(2 ball bearing)

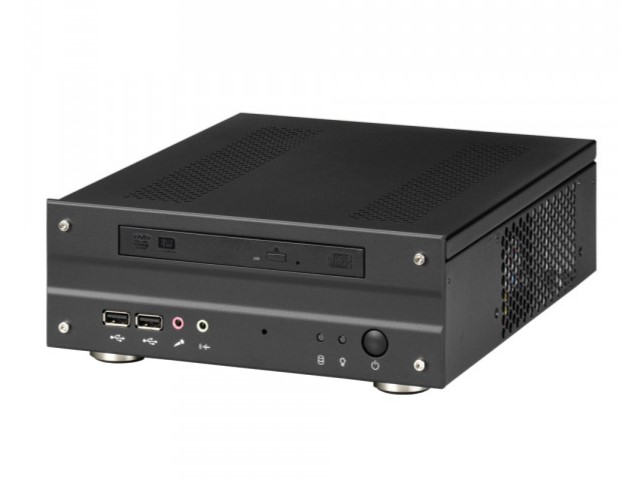

Front Panel
Power Switch	1
LED Indicators	HDD x1; Power x1
Audio In/Out	1
USB Port	2
Slim Optical Drive	1
Back Panel
Standard I/O Shield	1(Not Included)

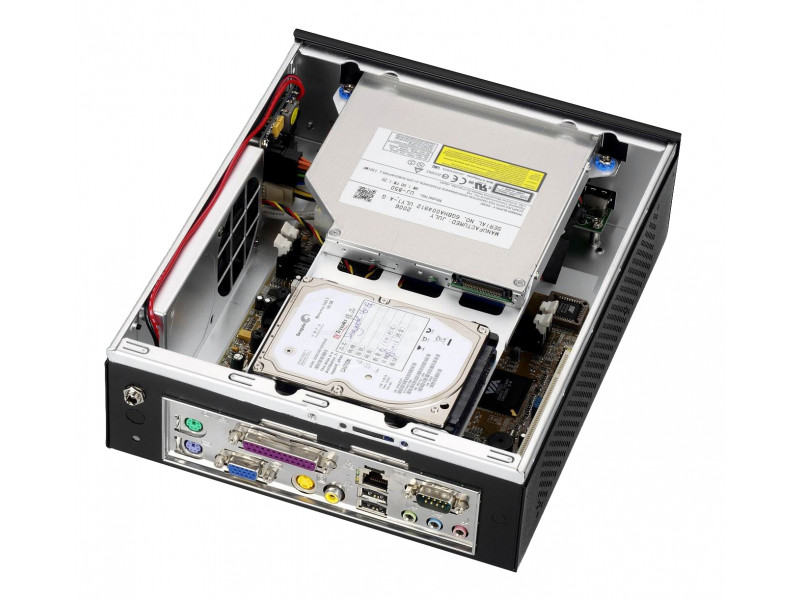

Internal Structure
System Cooling	6cm Fan(2 Ball Bearing) x1(Can Add Up to 2 Fans)
Memory Height	Accept Standard Size
HDD/SSD # and type	2.5" x2
Mechanical & Processing
Dimensions	W:9.80" (248.8mm) x D:8.22" (208.8mm) x H:2.87" (72.8mm)
Applied M/B Form Factor	Mini-ITX
Material	Cold Rolled Steel and Extruded Aluminum Front Panel
Surface	Aluminum Front Panel with Anodized Finish, Black Wet Paint with Texture Coat
Colour	Black / Customizable Colour
Power Solution Option 1
Internal DC Power Board	C7(80W) DC Power Board
External AC Adapter	60W: Input(AC 100~240V); OutputDC 12V@5A)
Power Solution Option 2
Internal DC Power Board	C7(80W) DC Power Board
External AC Adapter	80W: Input(AC 100~240V); Output(DC 12V@6.67A)
Power Solution Option 3
Internal DC Power Board	C4(150W, 19V~24V) DC Power Board
External AC Adapter	90W: Input(AC 100~240V); Output(DC 19V@4.74A)
Power Solution Option 4
Internal DC Power Board	C4(150W, 19V~24V) DC Power Board
External AC Adapter	120W: Input(AC 100~240V); Output(DC 19V@6.32A)
