HAKO-C289
Mini-ITX Enclosure with Slim ODD on Front Panel
· Support 1 x 3.5" HDD or 2 x 2.5" HDD
· Excellent cooling with maximum of 2 x 6cm fan(2 ball bearing)
· Support 1 x 3.5" HDD or 2 x 2.5" HDD
· Excellent cooling with maximum of 2 x 6cm fan(2 ball bearing)

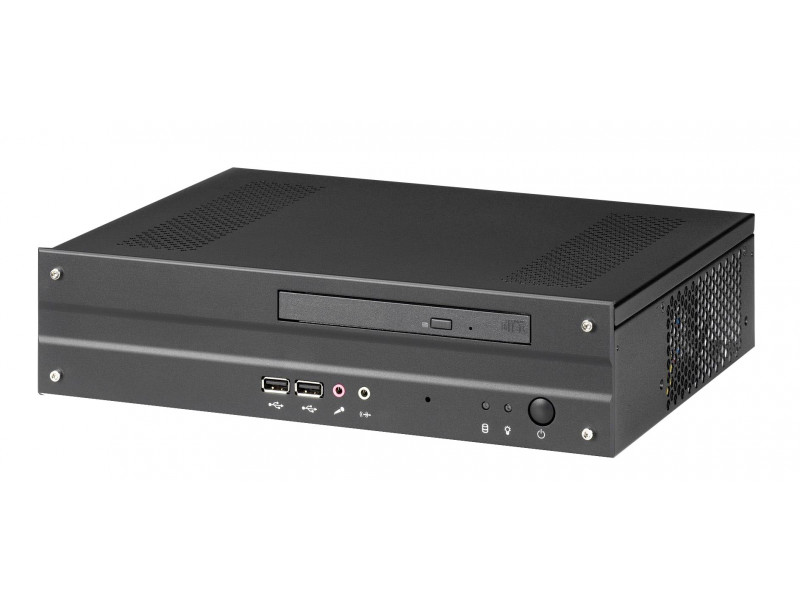

| Front Panel | |
| Power Switch | 1 |
| LED Indicators | HDD x1; Power x1 |
| Audio In/Out | 1 |
| USB Port | 2 |
| Slim Optical Drive | 1 |
| Back Panel | |
| Standard I/O Shield | 1(Not Included) |

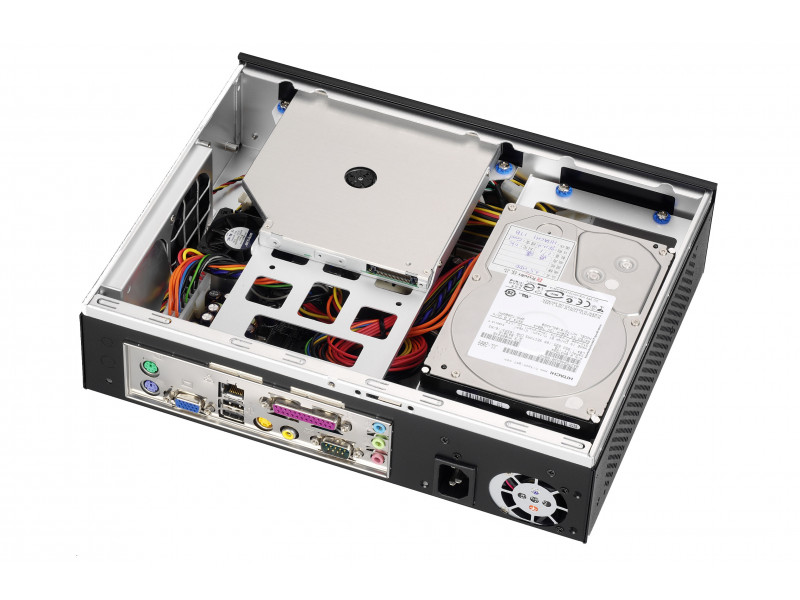

| Internal Structure | |
| System Cooling | 6cm Fan(2 Ball Bearing) x1(Can Add Up to 2 Fans) |
| Memory Height | Accept Standard Size |
| HDD/SSD # and type | 3.5" x1 or 2.5" x2 (2nd Disk Needs Optional Bracket) |
| Mechanical & Processing | |
| Dimensions | W:11.76" (298.8mm) x D:9.01" (228.8mm) x H:2.87" (72.8mm) |
| Applied M/B Form Factor | Mini-ITX |
| Material | Cold Rolled Steel and Extruded Aluminum Front Panel |
| Surface | Aluminum Front Panel with Anodized Finish, Black Wet Paint with Texture Coat |
| Colour | Black / Customizable Colour |
| Power Solution Option 1 | |
| Internal DC Power Board | C7(80W) DC Power Board |
| External AC Adapter | 60W: Input(AC 100~240V); OutputDC 12V@5A) |
| Power Solution Option 2 | |
| Internal DC Power Board | C7(80W) DC Power Board |
| External AC Adapter | 80W: Input(AC 100~240V); Output(DC 12V@6.67A) |
| Power Solution Option 3 | |
| Internal DC Power Board | C4(150W, 19V~24V) DC Power Board |
| External AC Adapter | 90W: Input(AC 100~240V); Output(DC 19V@4.74A) |
| Power Solution Option 4 | |
| Internal DC Power Board | C4(150W, 19V~24V) DC Power Board |
| External AC Adapter | 120W: Input(AC 100~240V); Output(DC 19V@6.32A) |
