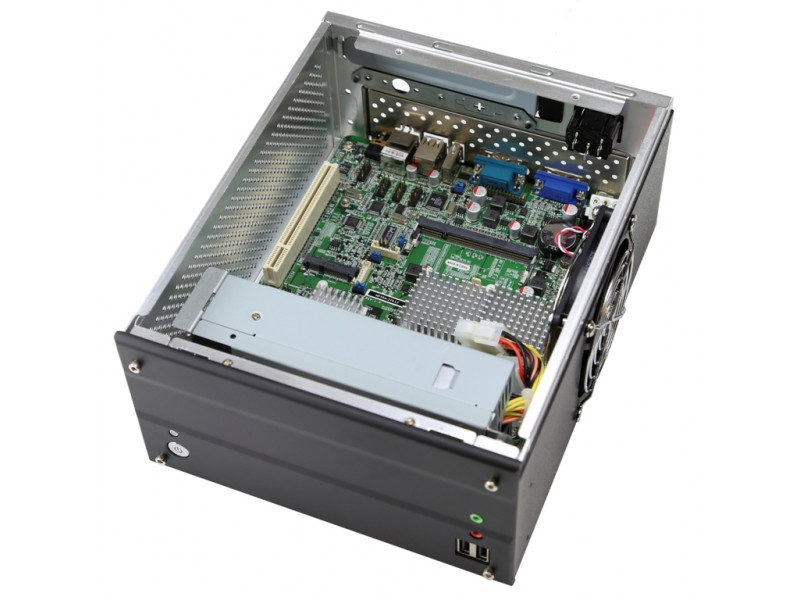

HAKO-C291
Mini-ITX Enclosure with 1 Expansion Slot
· Flexible inner storage options: - 1. 3 x 2.5" HDD
- 2. 1 x 3.5" HDD + 2 x 2.5" HDD
· Excellent cooling with maximum of 1 x 8cm fan(2 ball bearing)
· Flexible inner storage options: - 1. 3 x 2.5" HDD
- 2. 1 x 3.5" HDD + 2 x 2.5" HDD
· Excellent cooling with maximum of 1 x 8cm fan(2 ball bearing)

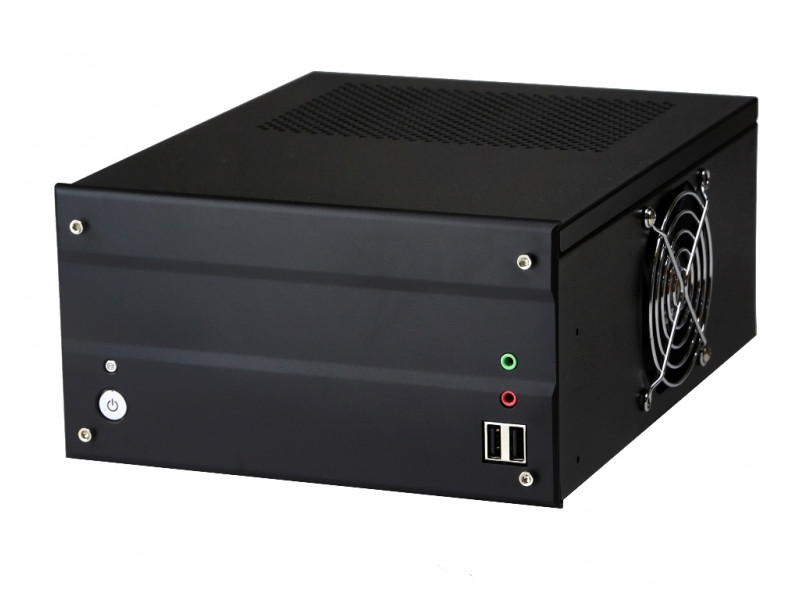

| Front Panel | |
| Power Switch | 1(With LED Indicator) |
| LED Indicators | HDD x1 |
| Audio In/Out | 1 |
| USB Port | 2 |

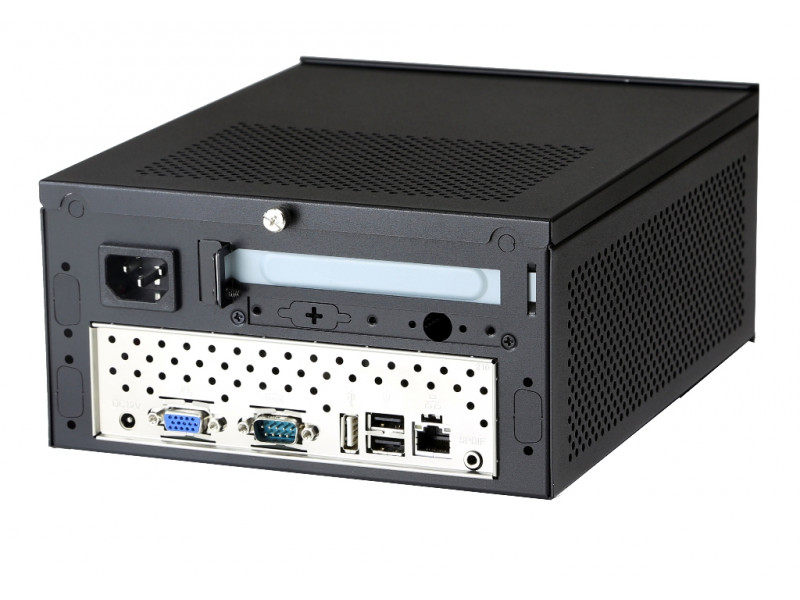

| Back Panel | |
| Standard I/O Shield | 1(Not Included) |
| Expansion Slot | 1 |
| DB9 Port | 3 |

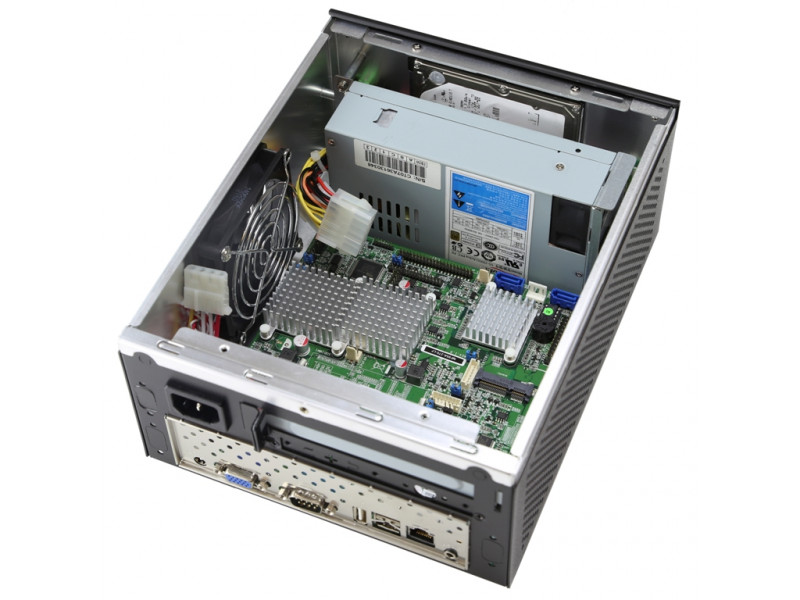

| Internal Structure | |
| System Cooling | 8cm Fan(2 Ball Bearing) x1 |
| Memory Height | Accept Standard Size |

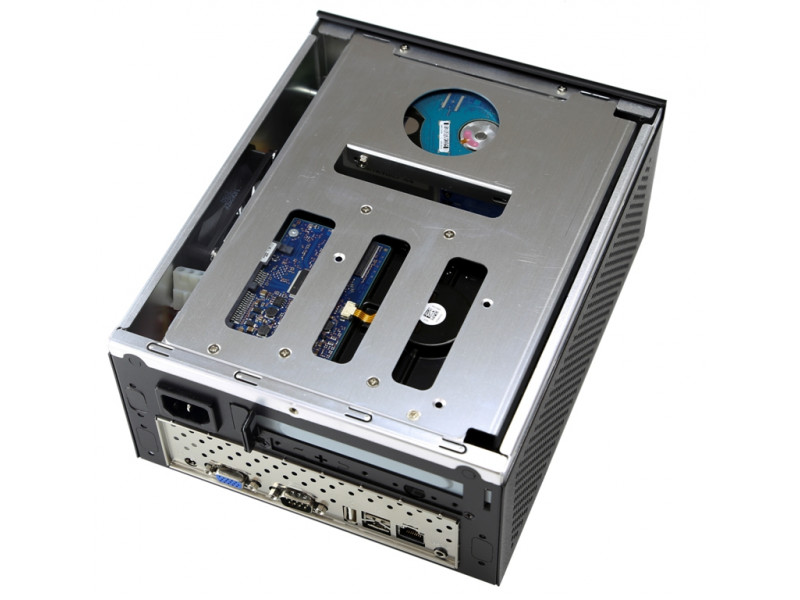

| HDD/SSD # and type | 2.5" x2 + 3.5" x1 or 2.5" x3 |
| Mechanical & Processing | |
| Dimensions | W:7.8" (198mm) x D:9.68" (245.8mm) x H:4.0" (101.7mm) |
| Applied M/B Form Factor | Mini-ITX |
| Material | Cold Rolled Steel and Extruded Aluminum Front Panel |
| Surface | Aluminum Front Panel with Anodized Finish, Black Wet Paint with Texture Coat |
| Colour | Black / Customizable Colour |
| Power Solution Option | |
| Flex ATX Power Supply | Flex ATX 250/300/400 watts Power Supply (AC 110~240V auto-switching) |
