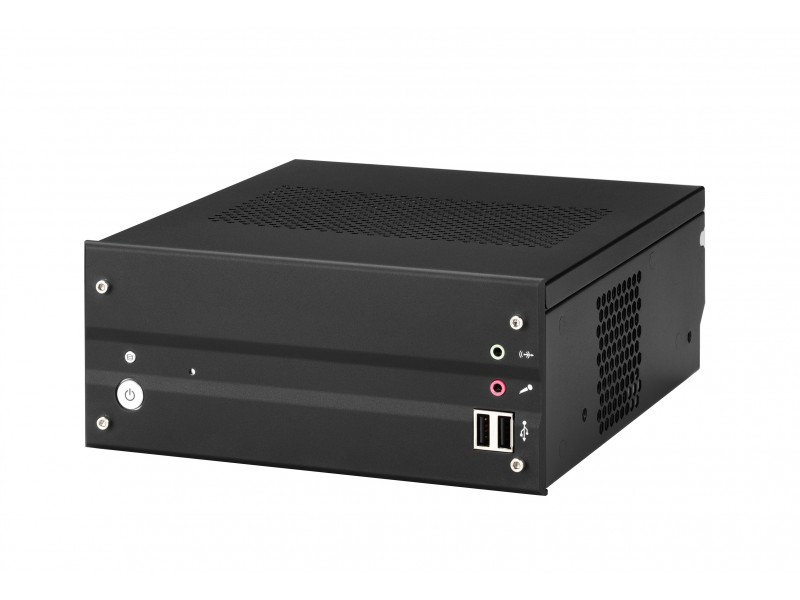

HAKO-C292-1
Mini-ITX Enclosure with 1 Expansion Slot
· Support up to 2 x 2.5" HDD
· Excellent cooling with maximum of 1 x 6cm fan(2 ball bearing)
· Stylish aluminum extruded front panel design
· Support up to 2 x 2.5" HDD
· Excellent cooling with maximum of 1 x 6cm fan(2 ball bearing)
· Stylish aluminum extruded front panel design
| Front Panel | |
| Power Switch | 1(With LED Indicator) |
| LED Indicators | HDD x1 |
| Audio In/Out | 1 |
| USB Port | 2 |
| Back Panel | |
| Standard I/O Shield | 1(Not Included) |
| Expansion Slot | 1 (Maximum Length to 6.9") |
| Internal Structure | |
| System Cooling | 6cm Fan(2 Ball Bearing) x1 |
| Memory Height | Accept Standard Size |
| HDD/SSD # and type | 2.5" x2 |
| Mechanical & Processing | |
| Dimensions | W:˙7.71" (196mm) x D:9.67" (245.8 mm) x H:3.27" (83.3 mm) |
| Applied M/B Form Factor | Mini-ITX |
| Material | Cold Rolled Steel and Extruded Aluminum Front Panel |
| Surface | Aluminum Front Panel with Anodized Finish, Black Wet Paint with Texture Coat |
| Colour | Black / Customizable Colour |
| Power Solution Option 1 | |
| Internal DC Power Board | C7(80W) DC Power Board |
| External AC Adapter | 60W: Input(AC 100~240V); Output(DC 12V@5A) |
| Power Solution Option 2 | |
| Internal DC Power Board | C7(80W) DC Power Board |
| External AC Adapter | 80W: Input(AC 100~240V); Output(DC 12V@6.67A) |
| Power Solution Option 3 | |
| Internal DC Power Board | C4(150W, 19V~24V) DC Power Board |
| External AC Adapter | 90W: Input(AC 100~240V); Output(DC 19V@4.74A) |
| Power Solution Option 4 | |
| Internal DC Power Board | C4(150W, 19V~24V) DC Power Board |
| External AC Adapter | 120W: Input(AC 100~240V); Output(DC 19V@6.32A) |
