HAKO-C293

Mini-ITX Enclosure with Low Noise and Ultra Light Weight

· Support 1 x 2.5" HDD
· Simple assembling and easy system integration

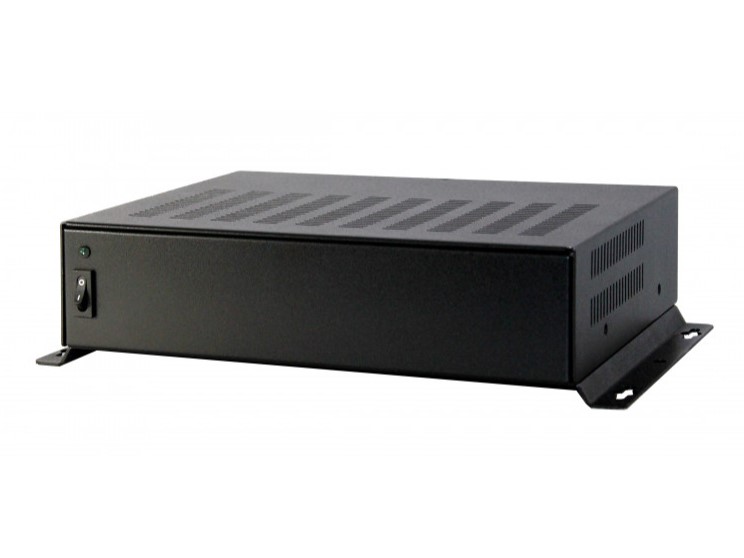

Front Panel
Power Switch	1
LED Indicators	Power x1
Back Panel
Standard I/O Shield	1(Not Included)
Extra Mounting Port (Optional)	Option 1: RS232 x2 + USB Port x2 Option 2: 4cm Fan x1
Internal Structure
Memory Height	Accept Standard Size
HDD/SSD # and type	2.5" x1
Mechanical & Processing
Dimensions	W:9.15" (232.4mm) x D:7.53" (191.2mm) x H:2.24" (56.8mm)
Applied M/B Form Factor	Mini-ITX
Material	Cold Rolled Steel and Extruded Aluminum Front Panel
Surface	Aluminum Front Panel with Anodized Finish, Black Wet Paint with Texture Coat
Colour	Black / Customizable Colour
Power Solution Option 1
Internal DC Power Board	T8(80W) DC Power Board
External AC Adapter	60W: Input(AC 100~240V); Output(DC 12V@5A)
Power Solution Option 2
Internal DC Power Board	T8(80W) DC Power Board
External AC Adapter	80W: Input(AC 100~240V); Output(DC 12V@6.67A)
Power Solution Option 3
Internal DC Power Board	C4(150W, 19V~24V) DC Power Board
External AC Adapter	90W: Input(AC 100~240V); Output(DC 19V@4.74A)
Power Solution Option 4
Internal DC Power Board	C4(150W, 19V~24V) DC Power Board
External AC Adapter	120W: Input(AC 100~240V); Output(DC 19V@6.32A)
