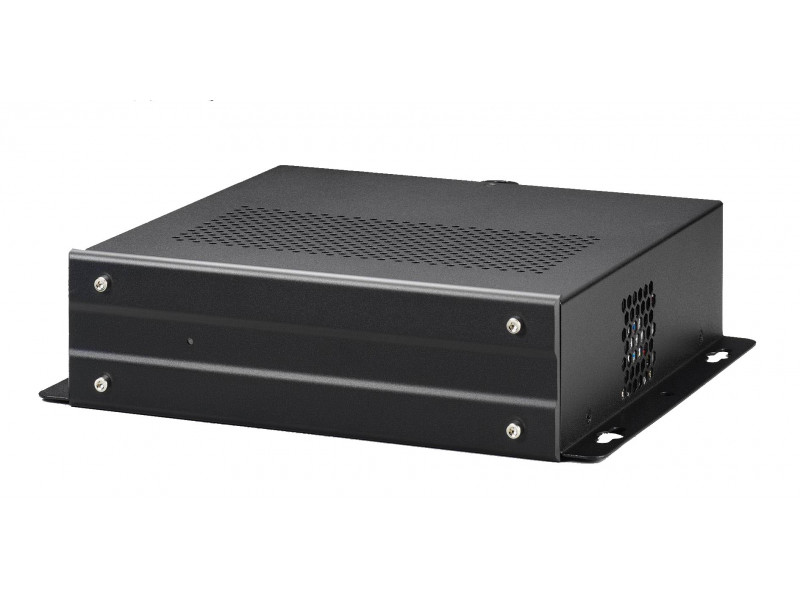

HAKO-C295
Mini-ITX Enclosure Ideal for Wall Mounting
· Excellent cooling with 1 x 4cm fan(2 ball bearing)
· Simple assembling and easy system integration
· Stylish design aluminum extruded front panel
· Excellent cooling with 1 x 4cm fan(2 ball bearing)
· Simple assembling and easy system integration
· Stylish design aluminum extruded front panel
| Back Panel | |
| Power Switch | 1 |
| LED Indicators | Power x1 |
| Standard I/O shield | 1(Not Included) |
| Internal Structure | |
| System Cooling | 4cm Fan(2 Ball Bearing) x1 |
| Memory Height | Accept Standard Size |
| Mechanical & Processing | |
| Dimensions | W:7.75"(196.8mm) x D:7.61"(193.3mm) x H:2.34"(59.42mm) |
| Applied M/B Form Factor | Mini-ITX |
| Material | Cold Rolled Steel and Extruded Aluminum Front Panel |
| Surface | Aluminum Front Panel with Anodized Finish, Black Wet Paint with Texture Coat |
| Colour | Black / Customizable Colour |
| Power Solution Option 1 | |
| Internal DC Power Board | C7(80W) DC Power Board |
| External AC Adapter | 60W: Input(AC 100~240V); Output(DC 12V@5A) |
| Power Solution Option 2 | |
| Internal DC Power Board | C7(80W) DC Power Board |
| External AC Adapter | 80W: Input(AC 100~240V); Output(DC 12V@6.67A) |
