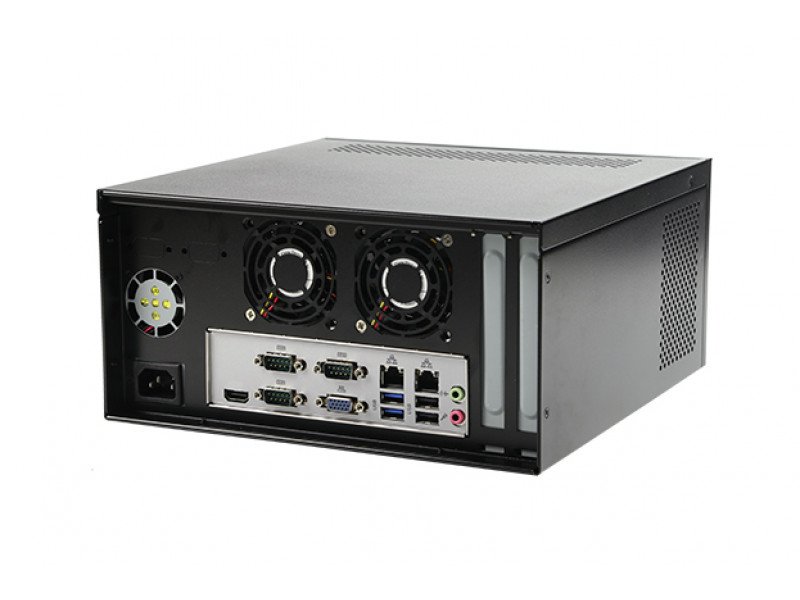

KACE-C510
Wallmount Enclosure for Mini-ITX MB
· Support 2 x 3.5" SATA tray
· Support 2 x expansion slot
· Excellent cooling with 2 x 6cm fan(2 ball bearing)
· Support 2 x 3.5" SATA tray
· Support 2 x expansion slot
· Excellent cooling with 2 x 6cm fan(2 ball bearing)
Specification
| Front Panel | |
| Power Switch | 1(With LED Indicator) |
| LED Indicators | HDD x1 |
| USB Port | 2 |
| Back Panel | |
| Standard I/O Shield | 1(Not Included) |
| Expansion Slot | 2 |
| RS232 | 2 |
| System Cooling | 6cm Fan(2 Ball Bearing) x2 |
| Internal Structure | |
| HDD/SSD # and type Options | 3.5" x2 |
| Mechanical & Processing | |
| Dimensions | W:8.86"(262mm) x D:9.25"(265mm) x H:5.10"(132.8mm) |
| Applied M/B Form Factor | Mini-ITX |
| Material | SGCC |
| Surface | Black Wet Paint with Texture Coat |
| Colour | Black / Customizable Colour |
| Power Solution Option | |
| Flex ATX Power Supply | Flex ATX 250/300/400watts Power Supply(AC 110~240V Auto-switching) |
