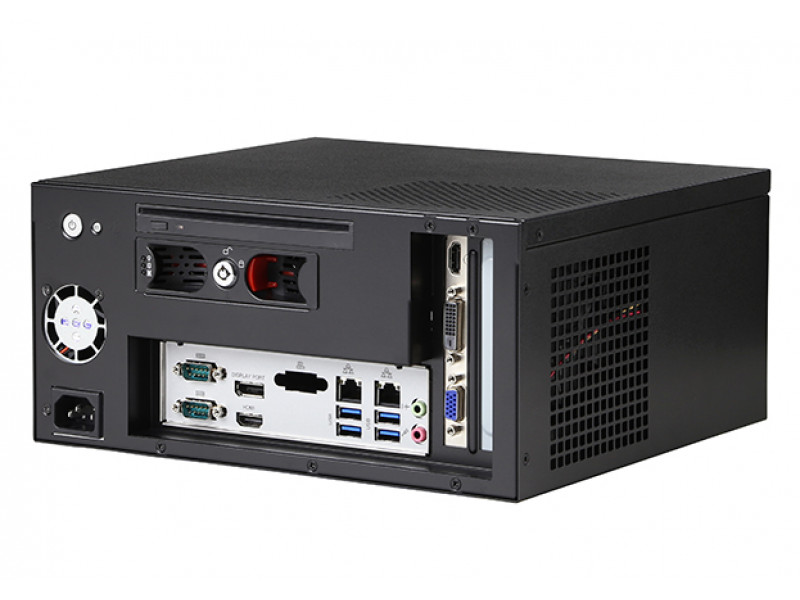

KACE-C514-5
Wallmount Enclosure for Mini-ITX MB
· Support 1 x slim ODD + 1 x 3.5" SATA tray
· Support 2 x expansion slot
· Excellent cooling with 1 x 12cm fan(2 ball bearing)
· Support 1 x slim ODD + 1 x 3.5" SATA tray
· Support 2 x expansion slot
· Excellent cooling with 1 x 12cm fan(2 ball bearing)
Specification
| Front Panel | |
| Power Switch | 1(With LED Indicator) |
| LED Indicators | HDD x1 |
| Expansion slot | 2 |
| HDD/SSD # and type | 3.5" x1 |
| Slim Optical Drive Slot | 1 |
| Standard I/O Shield | 1(Not Included) |
| Back Panel | |
| System Cooling | 12cm Fan(2 Ball Bearing) x1 |

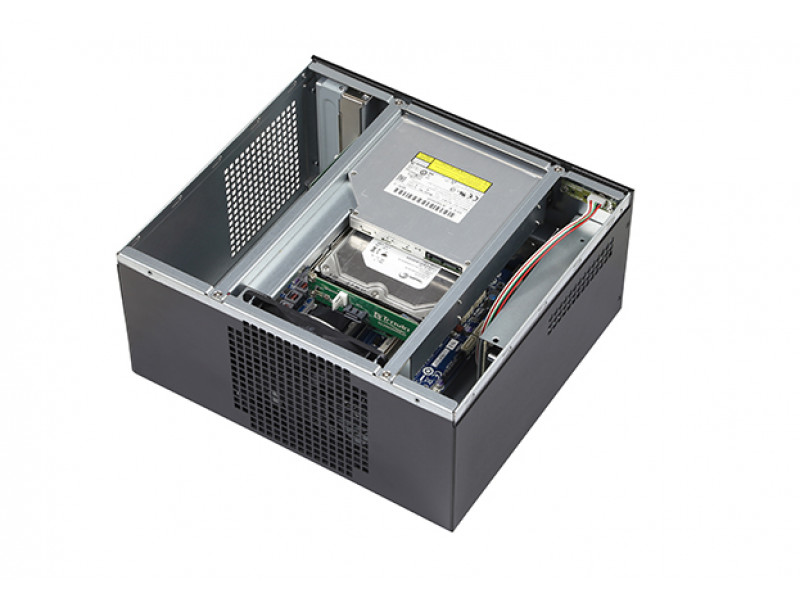

| Internal Structure | |
| HDD/SSD # and type | 2.5" x1 |
| Mechanical & Processing | |
| Dimensions | W:11.22"(285mm) x D:10.08"(256mm) x H:5.19"(132mm) |
| Applied M/B Form Factor | Mini-ITX |
| Material | SGCC |
| Surface | Black Wet Paint with Texture Coat |
| Colour | Black / Customizable Colour |
| Power Solution Option | |
| Flex ATX Power Supply | Flex ATX 250/300/400watts Power Supply(AC 110~240V Auto-switching) |
