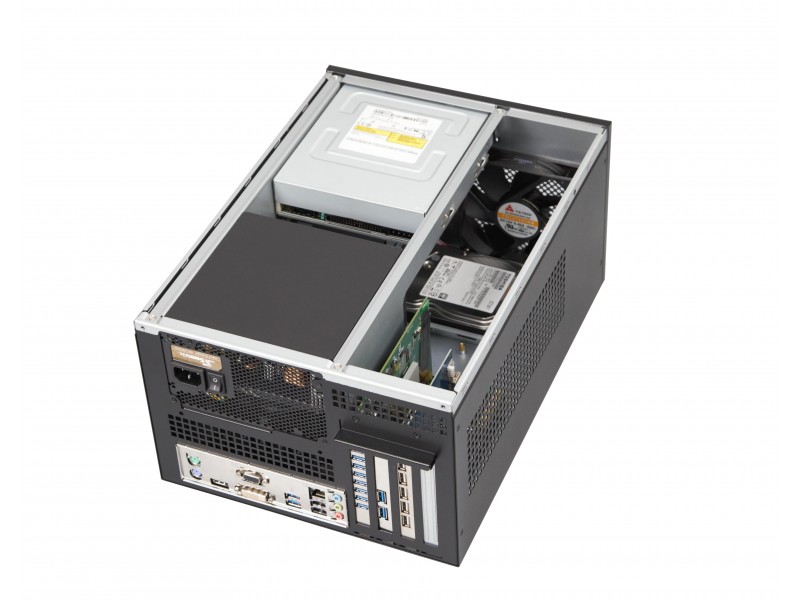

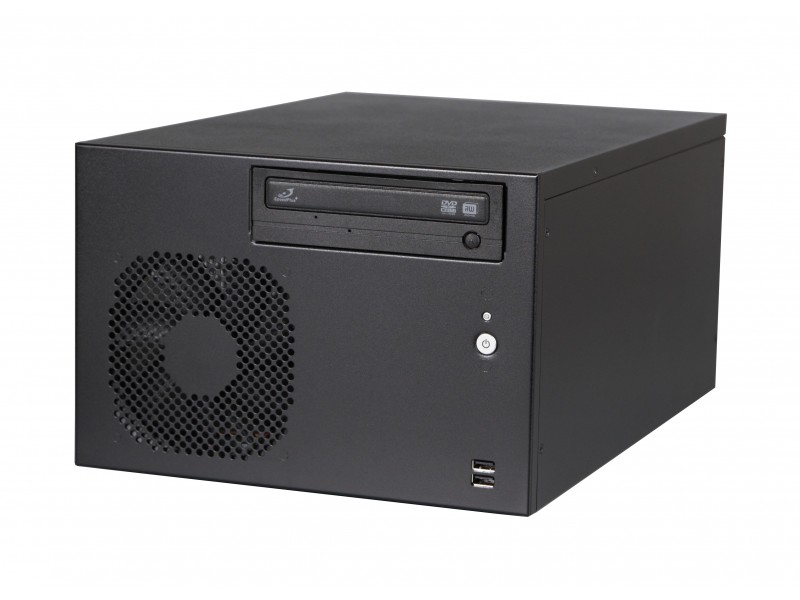

KACE-C534-2
Wallmount Enclosure for Micro-ATX MB
· Easy access with 5.25" ODD on front panel
· Support 4 x expansion slot
· Excellent cooling with 1 x 12cm fan(2 ball bearing)
· Easy access with 5.25" ODD on front panel
· Support 4 x expansion slot
· Excellent cooling with 1 x 12cm fan(2 ball bearing)
Specification
| Front Panel | |
| Power Switch | 1(With LED Indicator) |
| LED Indicators | HDD x1 |
| 5.25" ODD | 1 |
| USB Port | 2 |
| Back Panel | |
| Expansion Slot | 4 |
| Internal Structure | |
| HDD/SSD # and type | Option 1: 3.5" x1 + 2.5" x1 Option 2: 3.5" x2 |
| System Cooling | 12cm Fan(2 Ball Bearing) x1 |
| Mechanical & Processing | |
| Dimensions | W:11.02"(280mm) x D:15.73"(399.6mm) x H:7.43"(188.8mm) |
| Applied M/B Form Factor | Micro-ATX |
| Material | SGCC |
| Surface | Black Wet Paint with Texture Coat |
| Colour | Black / Customizable Colour |
| Power Solution Option | |
| Internal Power Solution | PSII Power Supply |
