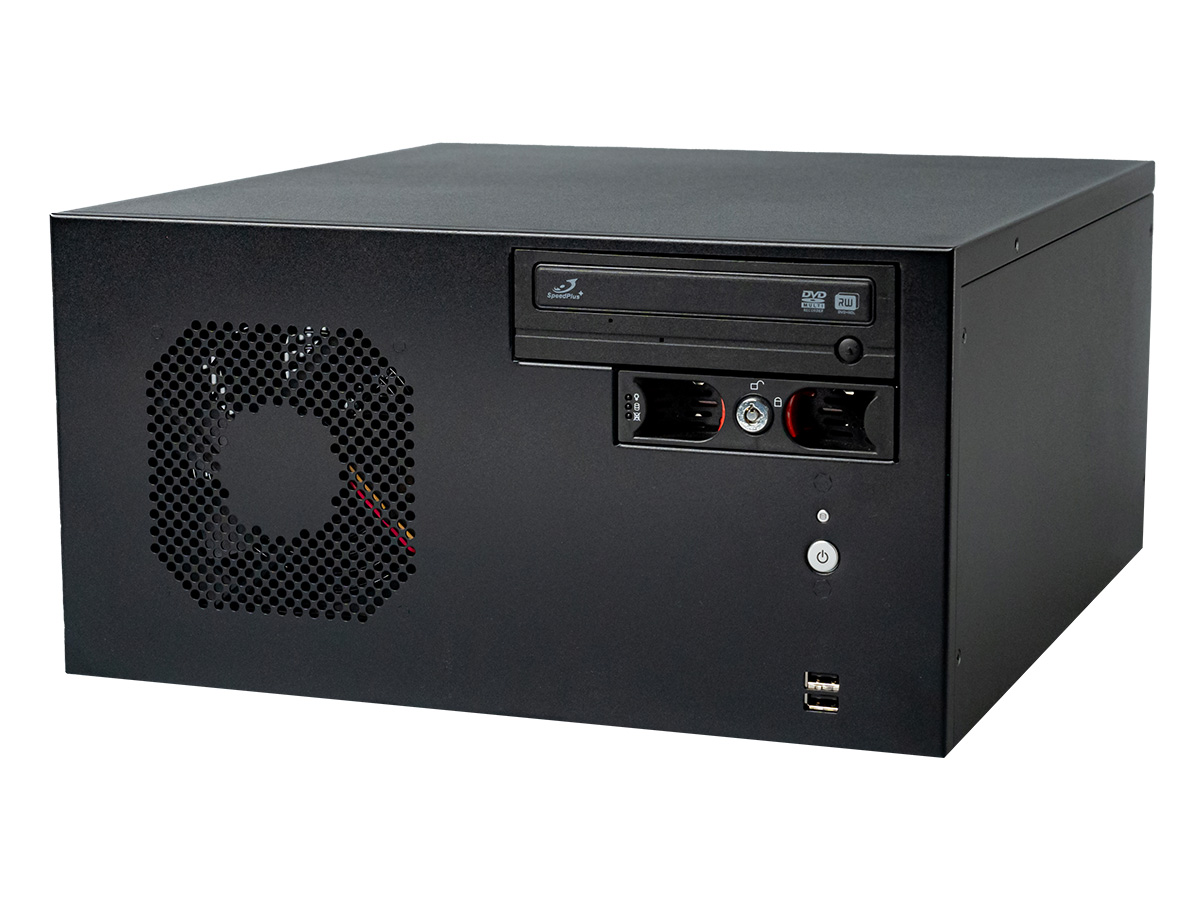

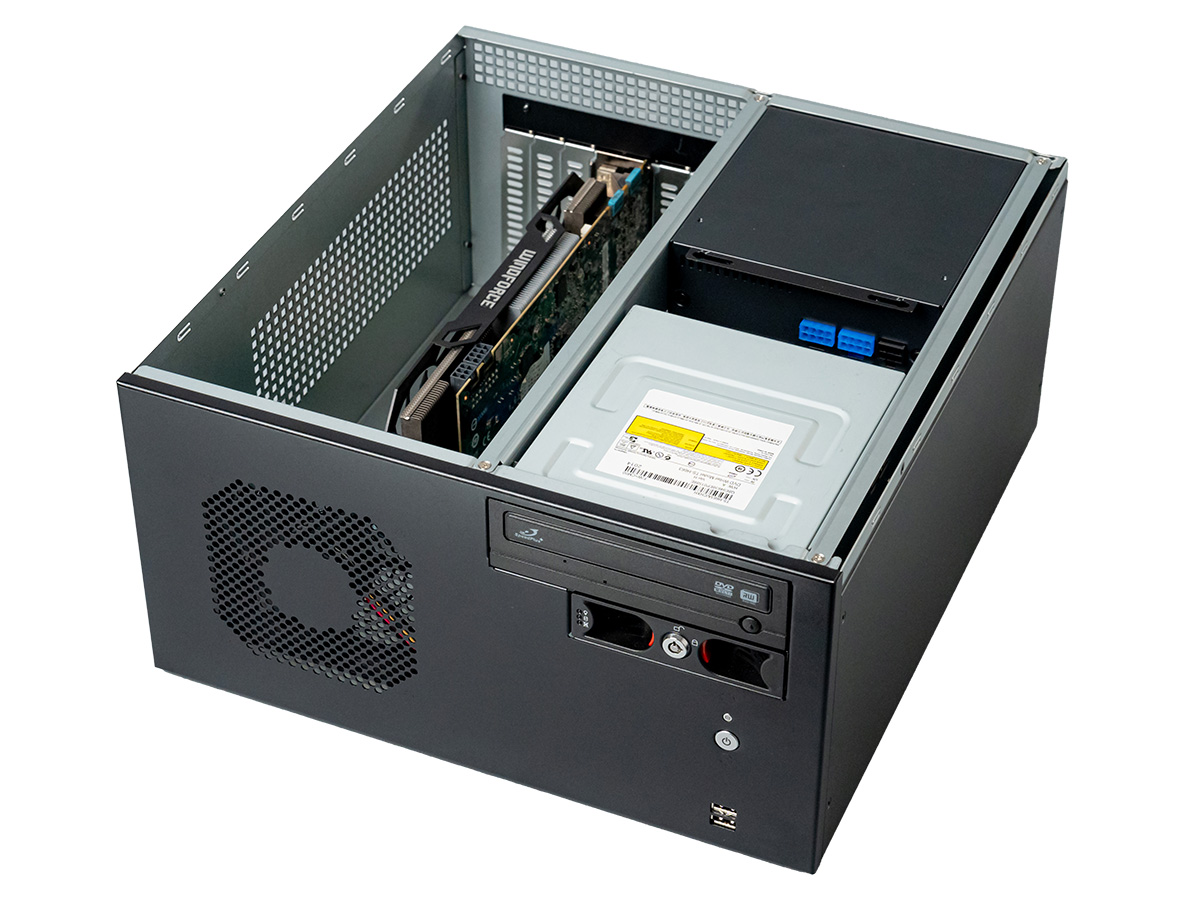

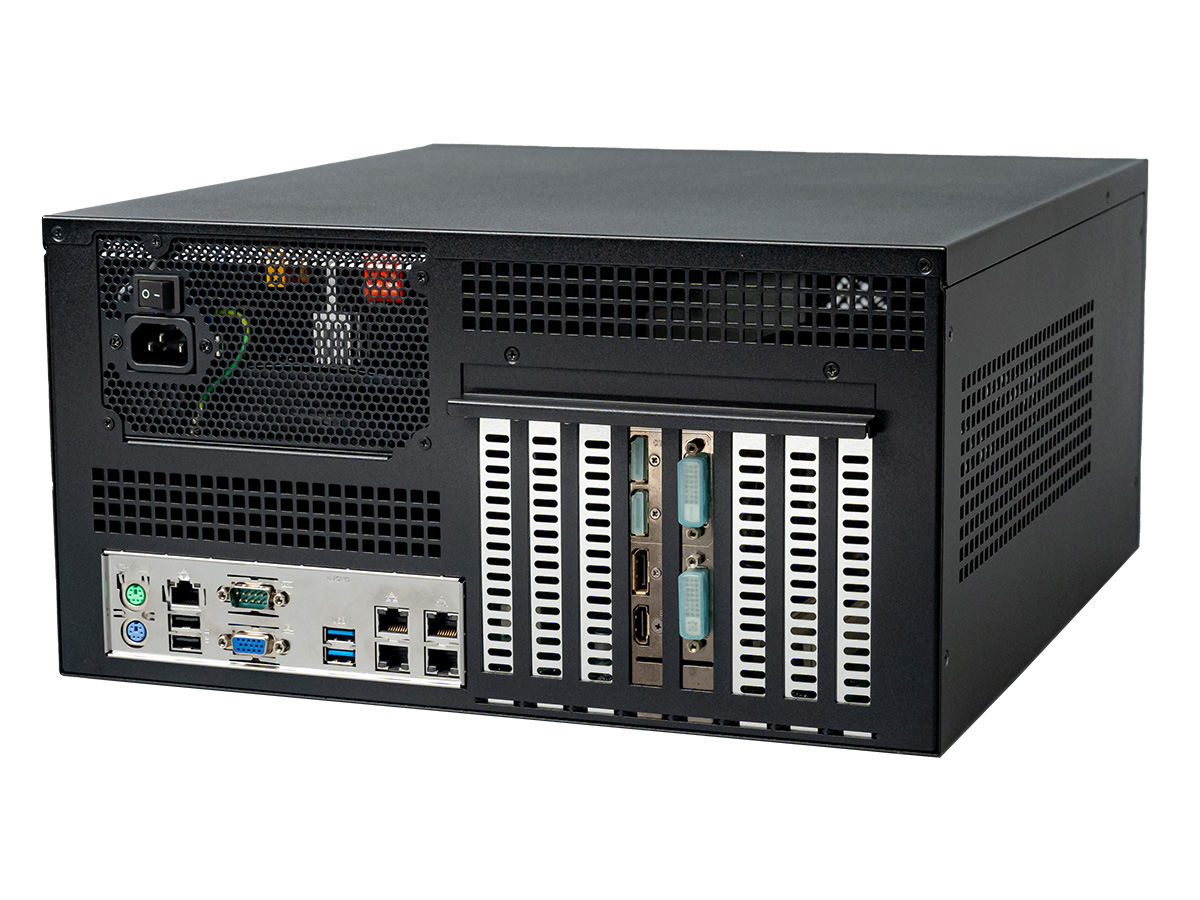

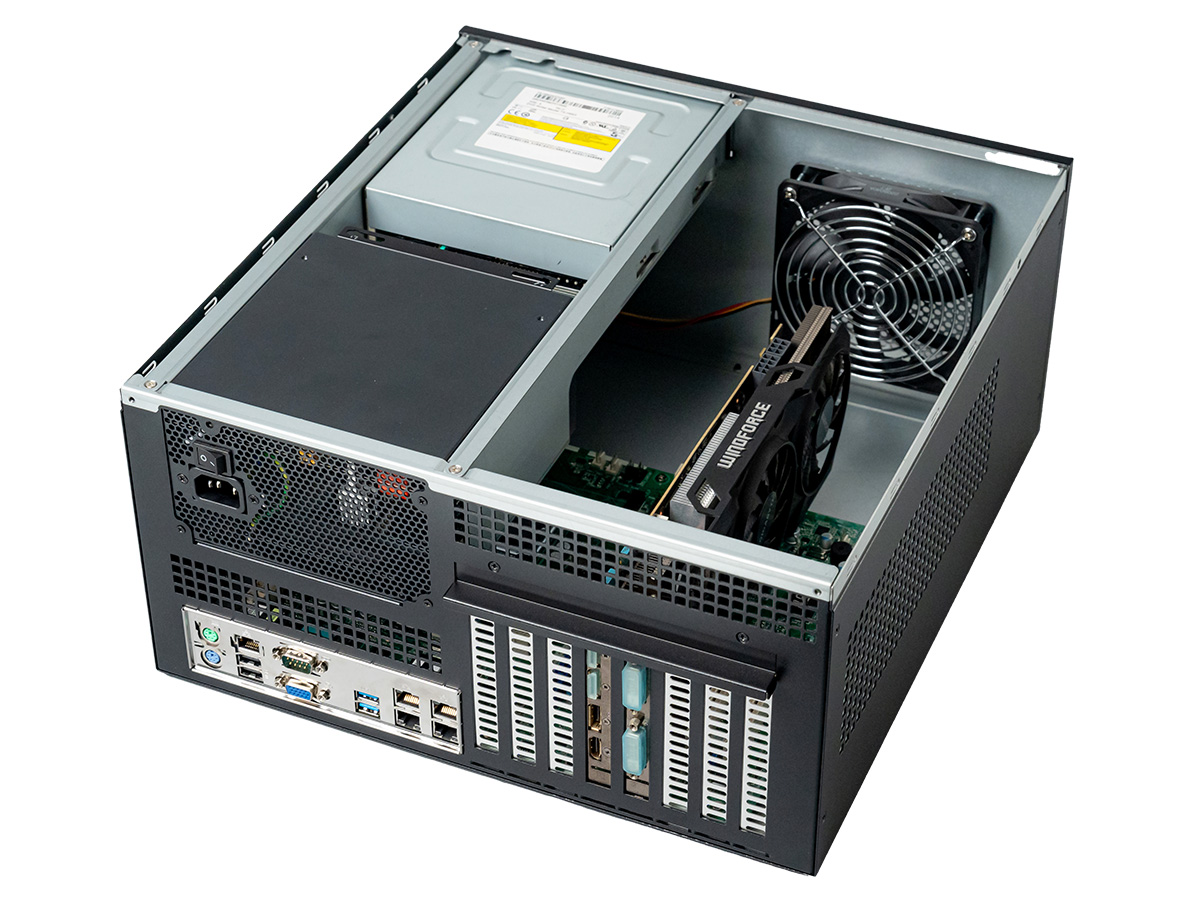

KACE-C540-02
Wallmount Enclosure for ATX MB
· Support 5.25" ODD + 1 x 3.5" SATA tray
· Support 7 x expansion slot
· Excellent cooling with 1 x 12cm fan with dust filter(2 ball bearing)
· Support PSII PSU
· Support 5.25" ODD + 1 x 3.5" SATA tray
· Support 7 x expansion slot
· Excellent cooling with 1 x 12cm fan with dust filter(2 ball bearing)
· Support PSII PSU
Specification
| Front Panel | |
| Power Switch | 1(With LED Indicator) |
| LED Indicators | HDD x1 |
| USB Port | 2 |
| HDD/SSD # and type | 5.25" ODD x1 + 3.5" x1 |
| Back Panel | |
| Standard I/O Shield | 1(Not Included) |
| Expansion slot | 8 |
| Internal Structure | |
| System Cooling | 12cm Fan(2 Ball Bearing) x1 |
| Memory Height | Accept Standard Size |
| HDD/SSD # and type | 3.5" x2 |
| Mechanical & Processing | |
| Dimensions | W:14.57"(370mm) x D:15.23"(386.8mm) x H:7.43"(188.8mm) |
| Applied M/B Form Factor | ATX |
| Material | SGCC |
| Surface | Black Wet Paint with Texture Coat |
| Colour | Black / Customizable Colour |
| Power Solution Option | |
| Power Supply | PSII ATX PSU 700W/800W/1000W/1200W(Optional) AC 110V~240V/5A 50~60Hz |
