KACE-C543
Wallmount Enclosure for ATX/Micro ATX MB
· Support 2 x low-profile expansion slot for PCIe or PCI card
· Excellent cooling with 1 x 8cm fan(2 ball bearing)
· Simple assembling and easy system integration
· Support 2 x low-profile expansion slot for PCIe or PCI card
· Excellent cooling with 1 x 8cm fan(2 ball bearing)
· Simple assembling and easy system integration
Specification

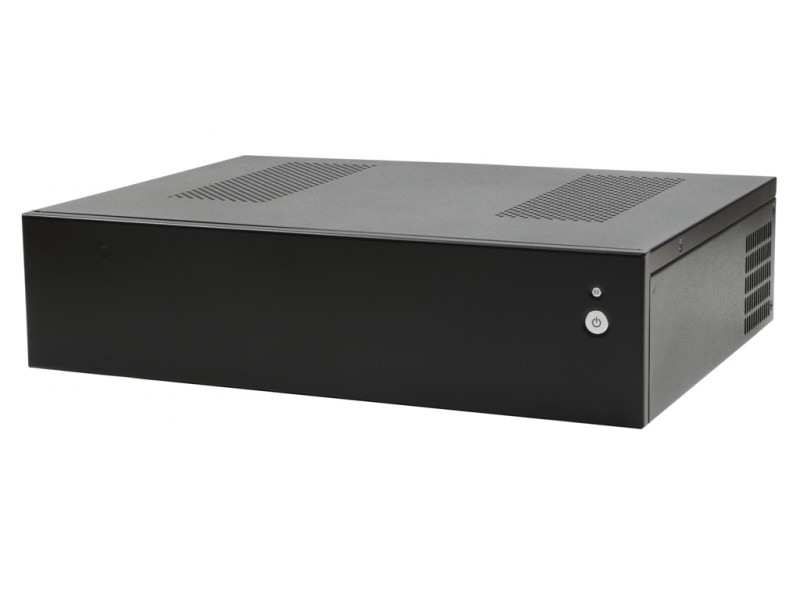

| Front Panel | |
| Power Switch | 1(With LED Indicator) |
| LED Indicators | HDD x1 |

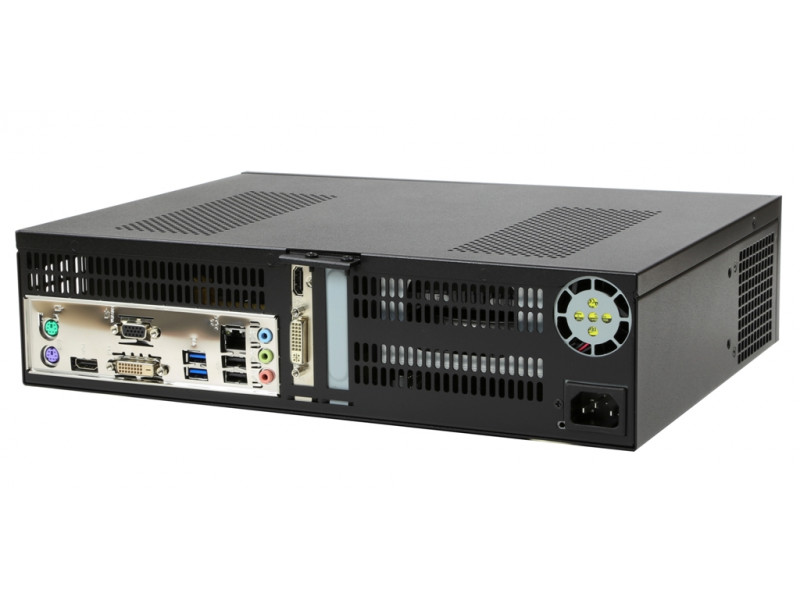

| Back Panel | |
| Standard I/O Shield | 1(Not Included) |
| Expansion Slot | 2 |

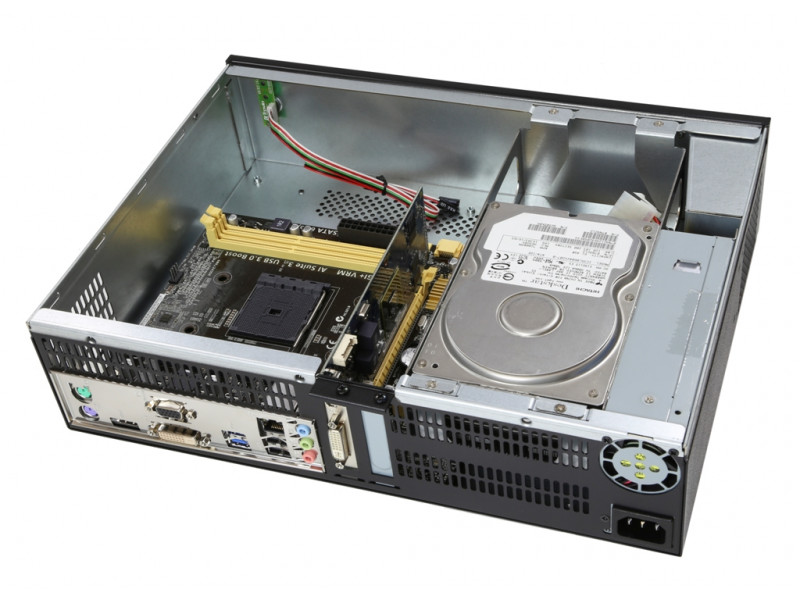

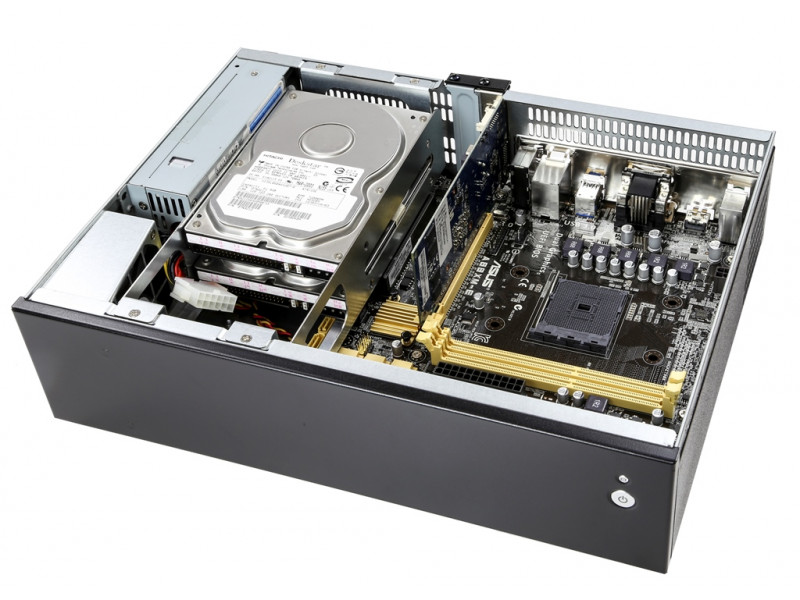

| Internal Structure | |
| System Cooling | 8cm Fan(2 Ball Bearing) x1 |
| Memory Height | Accept Standard Size |
| HDD/SSD # and type | 3.5" x2 |
| Mechanical & Processing | |
| Dimensions | W:10.50"(265.8mm) x D:15.00"(382mm) x H:3.50"(87.8mm) |
| Applied M/B Form Factor | ATX / Micro-ATX |
| Material | SGCC |
| Surface | Black Wet Paint with Texture Coat |
| Colour | Black / Customizable Colour |
| Power Solution Option | |
| Flex ATX Power Supply | Flex ATX 250/300/400watts Power Supply(AC 110~240V Auto-switching) |
