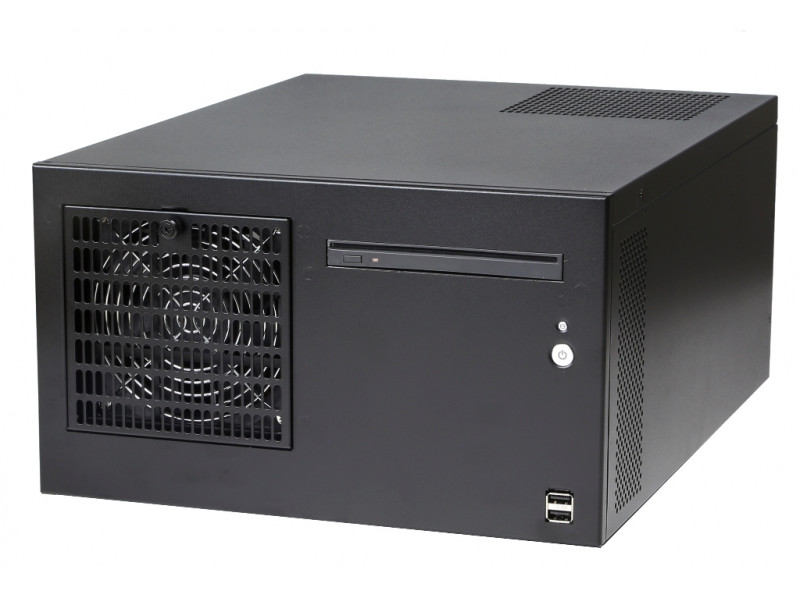

KACE-C544
Tower Wallmount Enclosure for Server Board/Baby-ATX
· Front accessible with slim ODD
· Support 1 x 3.5" HDD
· Support 7 x expansion slot for PCIe or PCI card

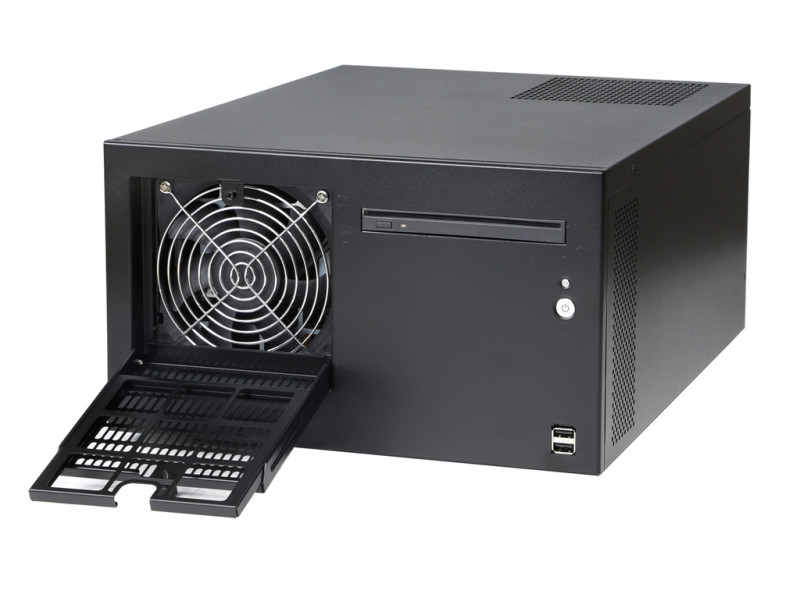

· Excellent cooling with 1 x 12cm fan with dust filter(2 ball bearing)
· Front accessible with slim ODD
· Support 1 x 3.5" HDD
· Support 7 x expansion slot for PCIe or PCI card
· Excellent cooling with 1 x 12cm fan with dust filter(2 ball bearing)
Specification
| Front Panel | |
| Power Switch | 1(With LED Indicator) |
| LED Indicators | HDD x1 |
| USB Port | 2 |
| Slim Optical Drive Slot | 1 |
| Back Panel | |
| Standard I/O Shield | 1(Not Included) |
| Expansion slot | 7 |
| Internal Structure | |
| System Cooling | 12cm Fan(2 Ball Bearing) x1 + 4cm Fan(2 Ball Bearing) x1 |
| Memory Height | Accept Standard Size |
| HDD/SSD # and type | 3.5" x1 |
| Mechanical & Processing | |
| Dimensions | W:12.67"(322mm) x D:16.5"(417.3mm) x H:7.3"(185.1mm) |
| Applied M/B Form Factor | Server Board |
| Material | SGCC |
| Surface | Black Wet Paint with Texture Coat |
| Colour | Black / Customizable Colour |
| Power Solution Option | |
| PSII Power Supply | PSII 300W/400W/500W Power Supply |
