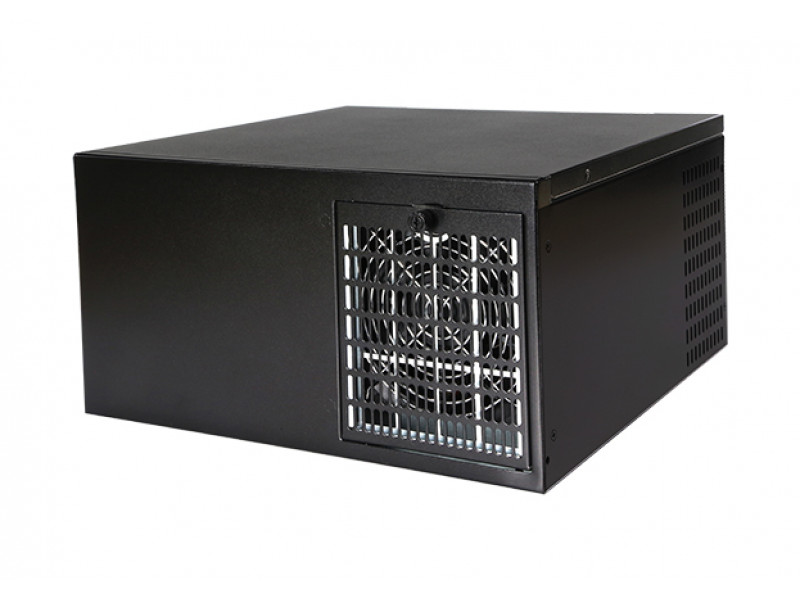

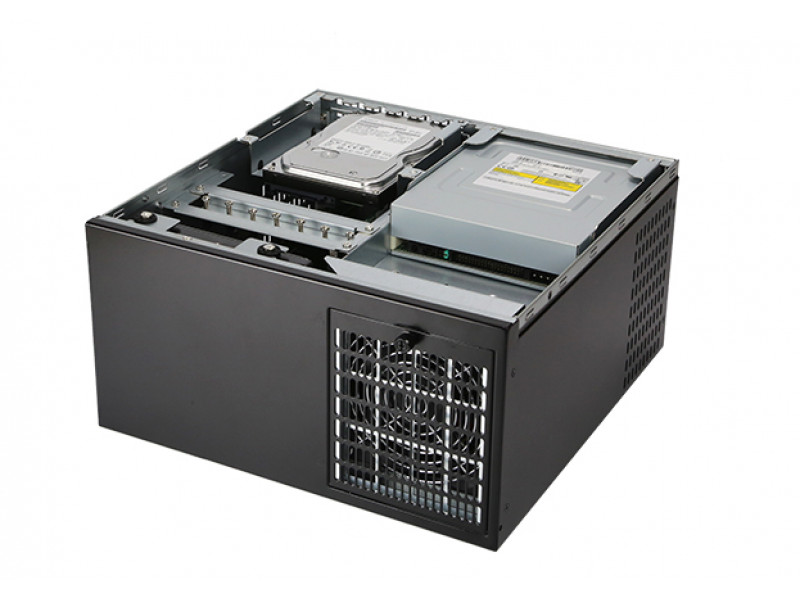

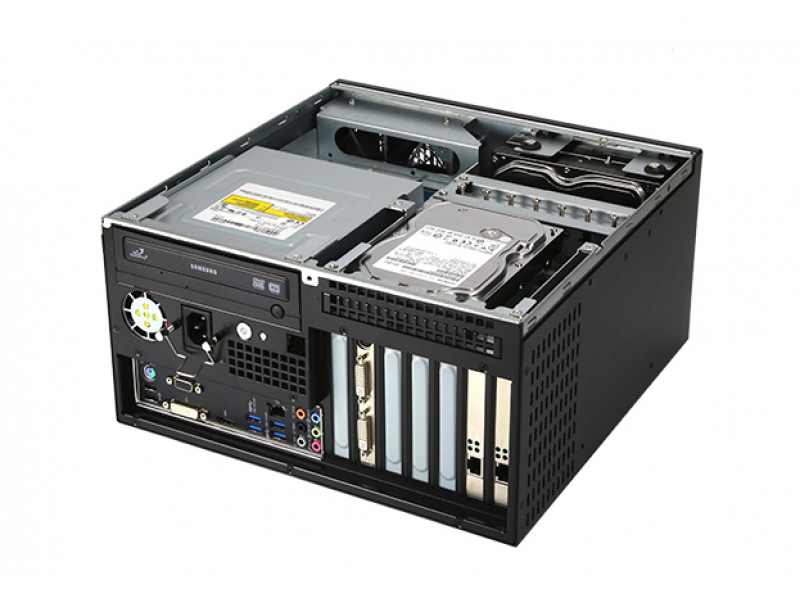

KACE-C545
Wallmount Enclosure for ATX MB
· Support 7 x expansion slot for PCIe or PCI card
· Excellent cooling with 1 x 12cm fan with dust filter(2 ball bearing)
· Removable fan cage door design for easy access
· Support slim or 5.25" ODD(optional)
· Support 7 x expansion slot for PCIe or PCI card
· Excellent cooling with 1 x 12cm fan with dust filter(2 ball bearing)
· Removable fan cage door design for easy access
· Support slim or 5.25" ODD(optional)
Specification
| Front Panel | |
| Power Switch | 1(With LED Indicator) |
| LED Indicators | HDD x1 |
| Slim Optical Drive Slot | Optional |
| 5.25" Drive | Optional |
| Expansion slot | 7 |
| Standard I/O Shield | 1(Not Included) |
| Back Panel | |
| Dust Filter for Fan | 1 |
| Internal Structure | |
| System Cooling | 12cm Fan(2 Ball Bearing) x1 |
| Memory Height | Accept Standard Size |
| HDD/SSD # and type | 3.5" x2 + 2.5" x4 |
| Mechanical & Processing | |
| Dimensions | W:12.6"(320mm) x D:12.45"(316.3mm) x H:6.45"(164mm) |
| Applied M/B Form Factor | ATX |
| Material | SGCC |
| Surface | Black Wet Paint with Texture Coat |
| Colour | Black / Customizable Colour |
| Power Solution Option | |
| Flex ATX Power Supply | Flex ATX 250/300/400watts Power Supply(AC 110~240V Auto-switching) |
