ONDO-F211-01


Fanless Chassis for Mini-ITX MB with CPU TDP 35W Max

· Custom I/O shield design based on MB
· Custom front/rear panel design
· Support 1 x expansion slot for PCIe or PCI Card
· Support wall/Vesa mounting bracket(optional)
· Simple assembling and easy system integration
· Silent, dust-free & energy-efficient operation



Specification

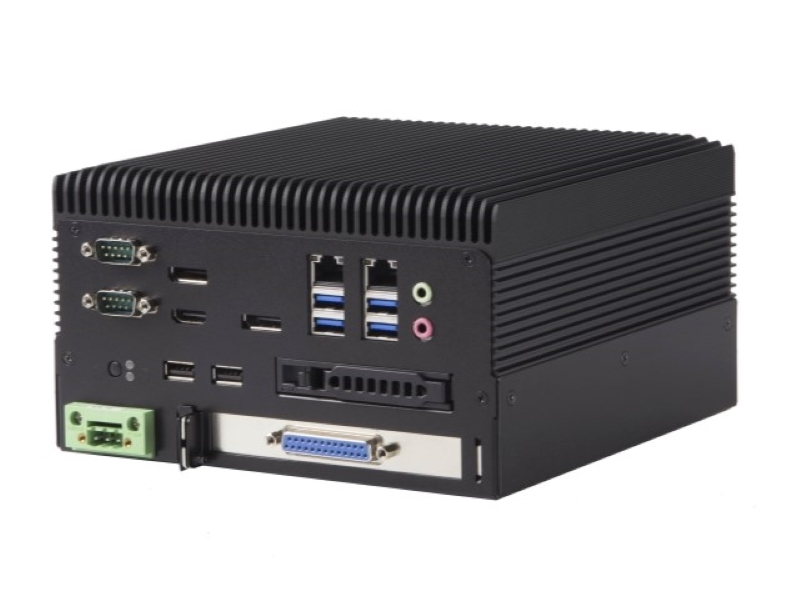

Front Panel
Power Switch 1
LED Indicators HDD x1; Power x1
USB Port 6
LAN 2
Display 2
COM 2
HDMI 1
Audio In/Out 1
Terminal Block 1
HDD/SSD # and type 2.5" HDD x1
Power Jack  1

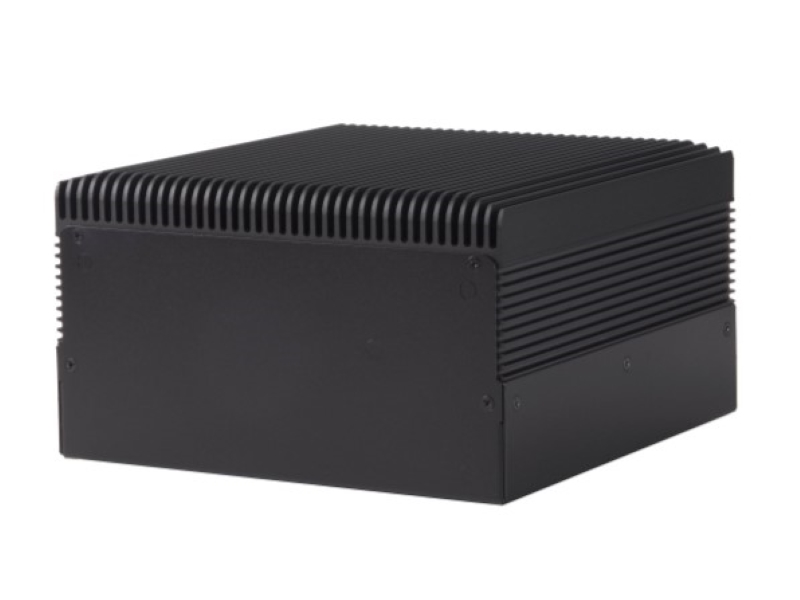

Back Panel
ANT 2
Internal Structure
System Cooling 1. Thermal Pads and Copper/Aluminum Thermal Block Combination
2. Aluminum-made Heat Sink Top Cover
Memory Height Accept Standard Size
HDD/SSD # and type Options           2.5"HDD x1
Mechanical & Processing
Dimensions L:7.43"(188.8mm) x W:7.51"(190.8mm) x H:4.40"(111.8mm)
Applied M/B Form Factor  Mini-ITX
Material SGCC
Surface Black Wet Paint with Texture Coat
Colour Black / Customizable Colour
Power Solution Option 1
Internal DC Power Board C7(80W) DC Power Board
External AC Adapter 60W: Input(AC 100~240V); Output(DC 12V@5A)
Power Solution Option 2
Internal DC Power Board C7(80W) DC Power Board
External AC Adapter 80W: Input(AC 100~240V); Output(DC 12V@6.67A)
