ONDO-F212-01
Fanless Chassis for Mini-ITX MB with CPU TDP 35W Max
· Custom I/O shield design based on MB
· Custom front/rear panel design
· Support 1 x expansion slot for PCIe or PCI Card
· Support wall/Vesa mounting bracket(optional)
· Simple assembling and easy system integration
· Silent, dust-free & energy-efficient operation
· Custom I/O shield design based on MB
· Custom front/rear panel design
· Support 1 x expansion slot for PCIe or PCI Card
· Support wall/Vesa mounting bracket(optional)
· Simple assembling and easy system integration
· Silent, dust-free & energy-efficient operation
Specification

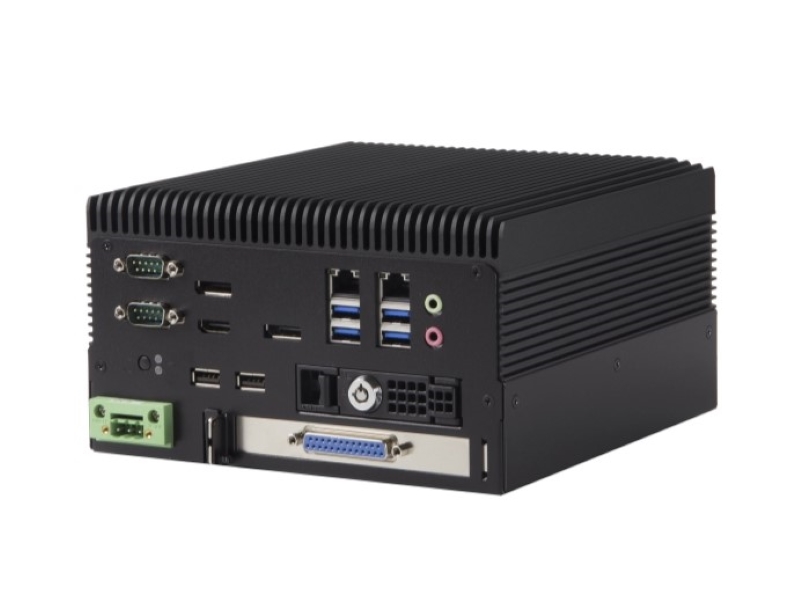

| Front Panel | |
| Power Switch | 1 |
| LED Indicators | HDD x1; Power x1 |
| USB Port | 6 |
| LAN | 2 |
| Display | 2 |
| COM | 2 |
| HDMI | 1 |
| Audio In/Out | 1 |
| Terminal Block | 1 |
| Expansion Slot | 1 |
| HDD/SSD # and type | 2.5" HDD x1(Full Height) |

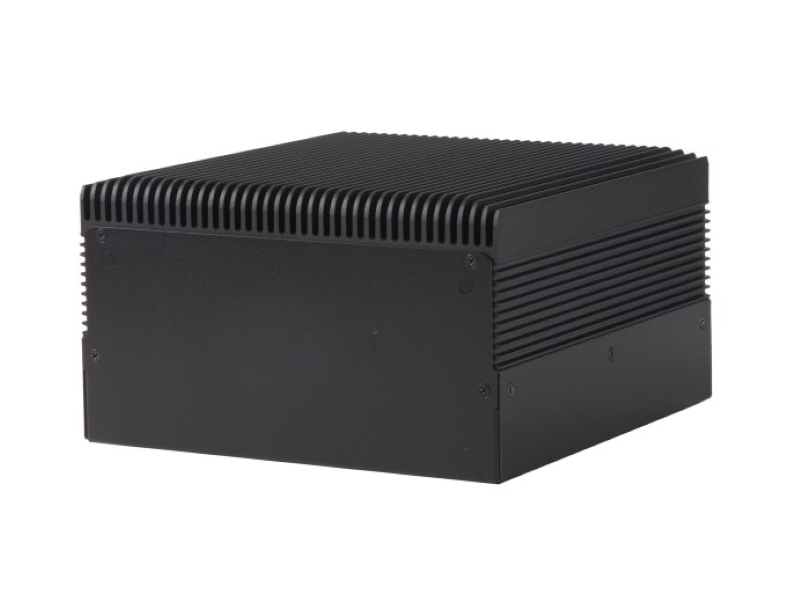

| Back Panel | |
| ANT | 2 |
| Internal Structure | |
| System Cooling | 1. Thermal Pads and Copper/Aluminum Thermal Block Combination 2. Aluminum-made Heat Sink Top Cover |
| Memory Height | Accept Standard Size |
| HDD/SSD # and type Options | 2.5"HDD x1 |
| Mechanical & Processing | |
| Dimensions | L:7.43"(188.8mm) x W:7.51"(190.8mm) x H:4.40"(111.8mm) |
| Applied M/B Form Factor | Mini-ITX |
| Material | SGCC |
| Surface | Black Wet Paint with Texture Coat |
| Colour | Black / Customizable Colour |
| Power Solution Option 1 | |
| Internal DC Power Board | C7(80W) DC Power Board |
| External AC Adapter | 60W: Input(AC 100~240V); Output(DC 12V@5A) |
| Power Solution Option 2 | |
| Internal DC Power Board | C7(80W) DC Power Board |
| External AC Adapter | 80W: Input(AC 100~240V); Output(DC 12V@6.67A) |
