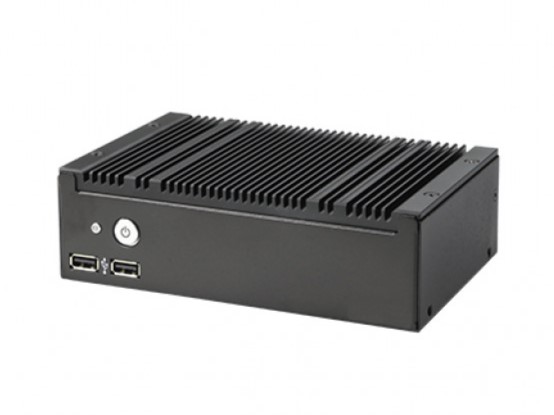

Front Panel | |
Power Switch | 1(With LED Indicator) |
LED Indicators | HDD x1 |
USB Port | 2 |

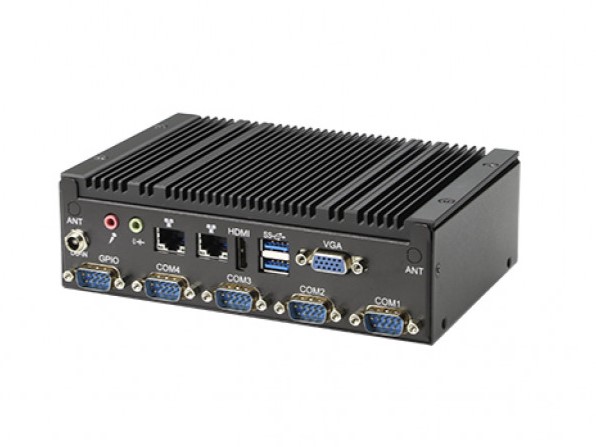

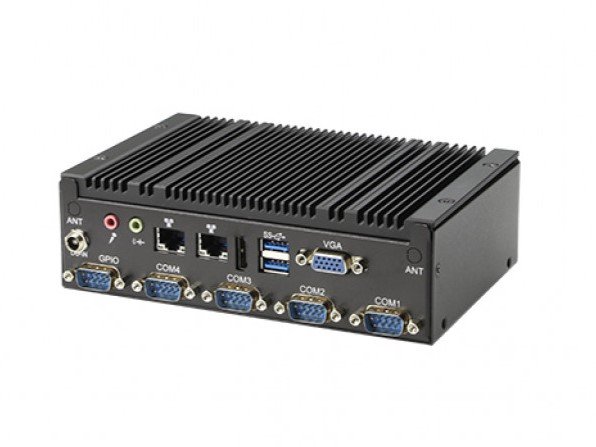

Back Panel | |
USB Port 3.0 | 2 |
GPIO | 1 |
COM | 4 |
HDMI | 1 |
ANT | 2 |
Gigabit LAN | 2 |
VGA | 1 |
Audio In/Out | 1 |
Internal Structure | |
System Cooling | Thermal Pads/Copper Thermal Block Combination: Which are positioned on the back-side of the top cover to transfer heat from CPU and chipset(North bridge and South bridge) to top cover. Aluminum-made Heat Sink Top Cover: With extensive heat sink surface from top cover to two sides of the chassis, Kiwatek's fanless chassis provide excellent heat dissipation to eliminate the heat and solve thermal issues. |
Copper Thermal Block | Positioned on the Back Side of Top Cover |
Memory height | Accept standard size |
HDD/SSD # and type Options | 2.5" x1 |
Mechanical & Processing | |
Dimensions | W:7.4"(189.0 mm) x D:5.8"(147.4 mm) x H:2.7"(68.5 mm) |
Applied M/B Form Factor | 3.5 inch Embedded Board |
Material | Zine-Fe Alloy Sheet |
Surface | Black Wet Paint with Texture Coat |
Colour | Black / Customizable Colour |
Power Solution Option | |
External AC Adapter | 60W: Input(AC 100~240V); Output(DC 12V@5A) |
