ONDO-F370-01


Fanless Chassis for Mini-ITX MB with CPU TDP 45W Max

· Custom I/O design based on MB
· Support wall mounting bracket(optional)
· Simple Assembling and Easy System Integration · Silent, dust-free & energy-efficient operation



Specification

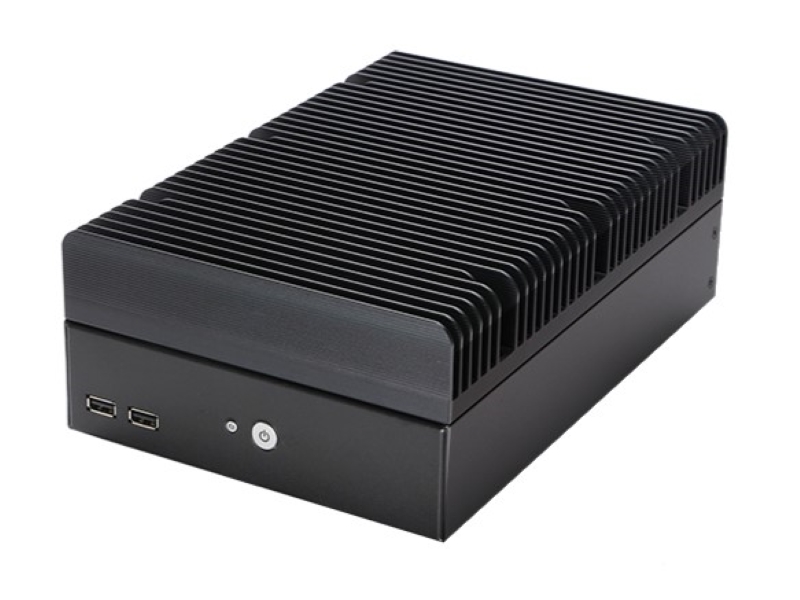

Front Panel
Power Switch 1(With LED Indicator)
LED Indicators HDD x1
USB Port 2

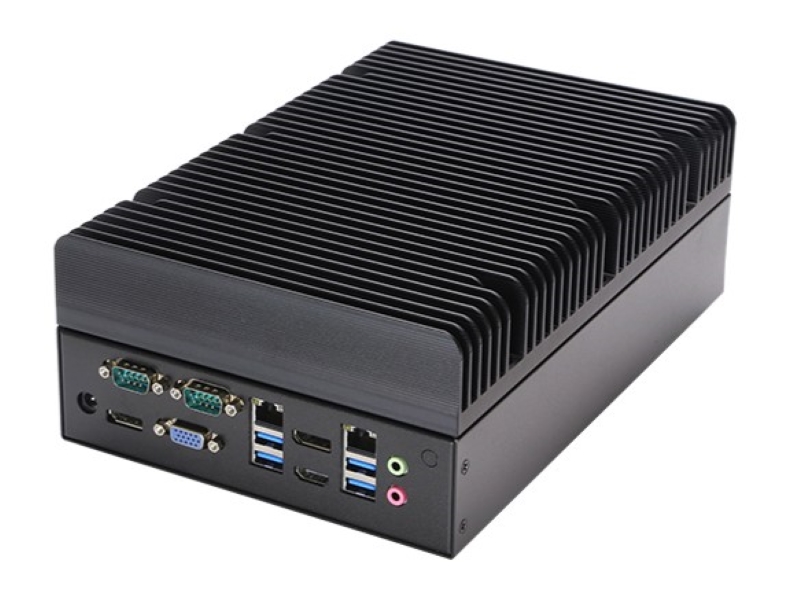

Back Panel
USB 3.0 4
VGA 1
COM 2
HDMI 1
LAN 2
Display 2
Audio In/Out 1
Power Jack 1
Internal Structure
System Cooling Thermal Pads/Copper Thermal Block Combination:
Which are positioned on the rear-side of the top cover to transfer heat from CPU and chipset(North bridge and South bridge) to top cover.

Aluminum-made Heat Sink Top Cover:
With extensive heat sink surface from top cover of the chassis, Kiwatek's fanless chassis provide excellent heat dissipation to eliminate the heat and solve thermal issues.
Copper Thermal Block Positioned on the Back Side of Top Cover
Memory Height Accept Standard Size
HDD/SSD # and type Options           2.5"HDD x1
Mechanical & Processing
Dimensions L:7.00"(178.0mm) x W:10.3"(262.5mm) x H:3.6"(91.6mm)
Applied M/B Form Factor  Mini-ITX
Material Zine-Fe Alloy Sheet
Surface Black Wet Paint with Texture Coat
Colour Black / Customizable Colour
Power Solution Option 1
Internal DC Power Board C7(80w) DC Power Board
External AC Adapter 60w: Input(AC 100~240V); Output(DC 12V@5A)
Power Solution Option 2
Internal DC Power Board C7(80w) DC Power Board
External AC Adapter 80w: Input(AC 100~240V); Output(DC 12V@6.67A)
