ONDO-F370-04
Fanless Chassis for Mini-ITX MB with CPU TDP 45W Max
· Custom I/O design based on MB
· Support 2 x expansion slot for PCIe or PCI Card
· Support wall mounting bracket(optional)
· Silent, dust-free & energy-efficient operation
· Custom I/O design based on MB
· Support 2 x expansion slot for PCIe or PCI Card
· Support wall mounting bracket(optional)
· Silent, dust-free & energy-efficient operation
Specification

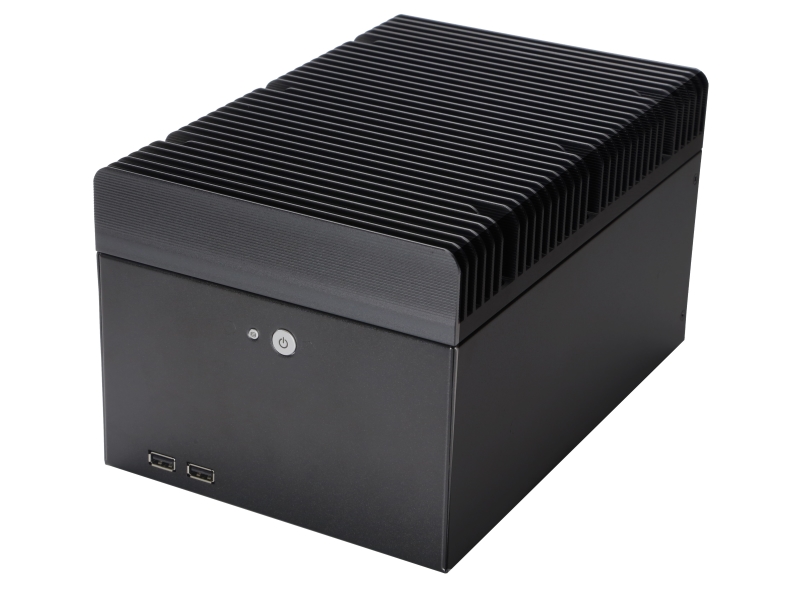

| Front Panel | |
| Power Switch | 1(With LED Indicator) |
| LED Indicators | HDD x1 |
| USB Port | 2 |

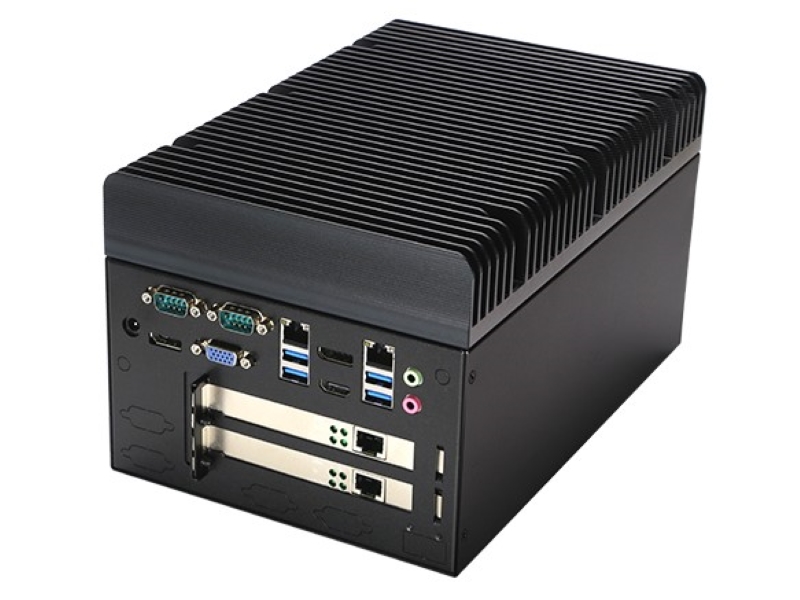

| Back Panel | |
| USB 3.0 | 4 |
| VGA | 1 |
| COM | 6 |
| HDMI | 1 |
| LAN | 2 |
| Display | 2 |
| Audio In/Out | 1 |
| Expansion Slot | 2 |
| Power Jack | 1 |
| Internal Structure | |
| System Cooling | Thermal Pads/Copper Thermal Block Combination: Which are positioned on the rear-side of the top cover to transfer heat from CPU and chipset(North bridge and South bridge) to top cover. Aluminum-made Heat Sink Top Cover: With extensive heat sink surface from top cover of the chassis, Kiwatek's fanless chassis provide excellent heat dissipation to eliminate the heat and solve thermal issues. |
| Copper Thermal Block | Positioned on the Back Side of Top Cover |
| Memory Height | Accept Standard Size |
| HDD/SSD # and type Options | 2.5"HDD x1 |
| Mechanical & Processing | |
| Dimensions | L:7.00"(178.0mm) x W:10.3"(261.6mm) x H:5.8"(147.8mm) |
| Applied M/B Form Factor | Mini-ITX |
| Material | Zine-Fe Alloy Sheet |
| Surface | Black Wet Paint with Texture Coat |
| Colour | Black / Customizable Colour |
| Power Solution Option 1 | |
| Internal DC Power Board | C7(80w) DC Power Board |
| External AC Adapter | 60w: Input(AC 100~240V); Output(DC 12V@5A) |
| Power Solution Option 2 | |
| Internal DC Power Board | C7(80w) DC Power Board |
| External AC Adapter | 80w: Input(AC 100~240V); Output(DC 12V@6.67A) |
