ONDO-F370-05
Fanless Chassis for Mini-ITX MB with CPU TDP 70W Max
· Dual aluminum heat sink for superb heat dissipating capability
· Custom I/O design based on MB
· Support 1 x expansion slot for PCIe or PCI Card
· Silent, dust-free & energy-efficient operation
· Dual aluminum heat sink for superb heat dissipating capability
· Custom I/O design based on MB
· Support 1 x expansion slot for PCIe or PCI Card
· Silent, dust-free & energy-efficient operation
Specification

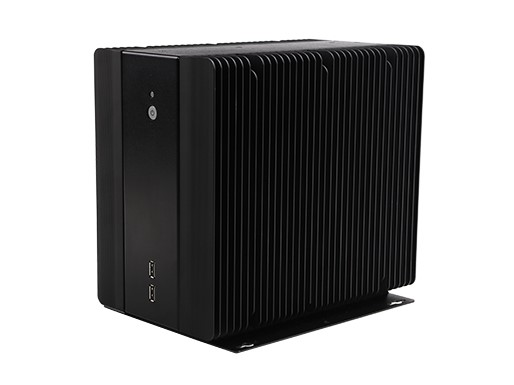

| Front Panel | |
| Power Switch | 1(With LED Indicator) |
| LED Indicators | HDD x1 |
| USB Port | 2 |

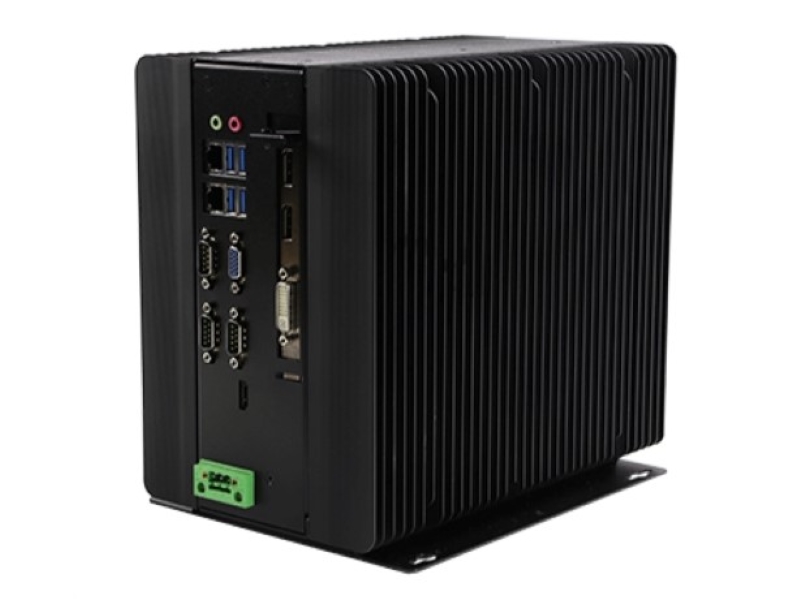

| Back Panel | |
| USB 3.0 | 2 |
| USB 2.0 | 2 |
| COM | 3 |
| HDMI | 1 |
| Gigabit LAN | 2 |
| VGA | 1 |
| Expansion Slot | 1 |
| Audio In/Out | 1 |
| Internal Structure | |
| System Cooling | Thermal Pads/Copper Thermal Block Combination: Which are positioned on the rear-side of the side cover to transfer heat from CPU and chipset to side cover. Aluminum-made Heat Sink Side Cover: With extensive heat sink surface from side cover of the chassis, Kiwatek's fanless chassis provide excellent heat dissipation to eliminate the heat and solve thermal issues. |
| Copper Thermal Block | Positioned on the Back Side of Side Cover |
| Memory Height | Accept Standard Size |
| HDD/SSD # and type Options | 2.5"HDD x2 |
| Mechanical & Processing | |
| Dimensions | L:6.17"(156.6mm) x W:10.32"(262mm) x H:9.04"(229.5mm) |
| Applied M/B Form Factor | Mini-ITX |
| Material | Zine-Fe Alloy Sheet |
| Surface | Black Wet Paint with Texture Coat |
| Colour | Black / Customizable Colour |
| Power Solution Option | |
| Internal DC Power Board | C4(150W) DC Power Board |
| External AC Adapter | 120W: Input(AC 100~240V); Output(DC 19V@6.32A) |
