ONDO-F380
Fanless Chassis for Mini-ITX MB with CPU TDP 65W Max
· Support standard I/O shield
· Support 1 x 2.5" SATA tray and SLIM ODD · Support 2 x expansion slot for PCIe or PCI card
· Silent, dust-free & energy-efficient operation
· Support standard I/O shield
· Support 1 x 2.5" SATA tray and SLIM ODD · Support 2 x expansion slot for PCIe or PCI card
· Silent, dust-free & energy-efficient operation
Specification

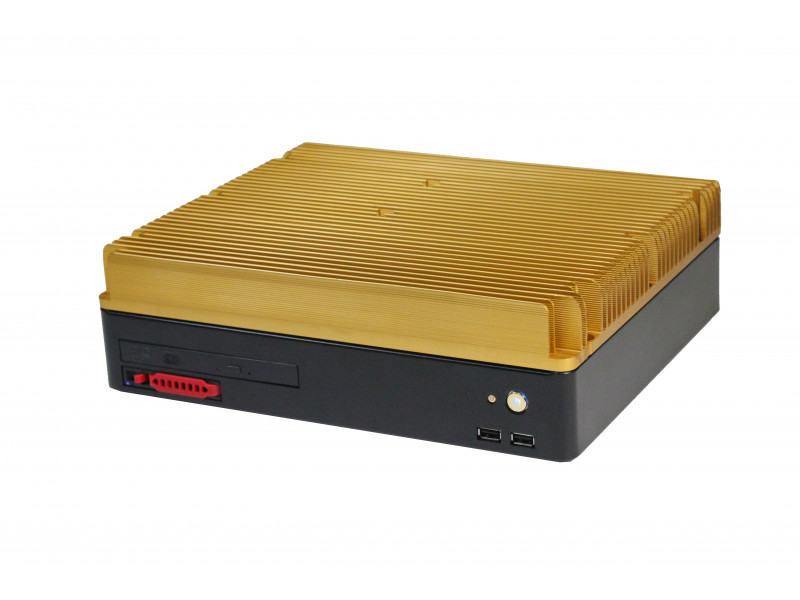

| Front Panel | |
| Power Switch | 1(With LED Indicator) |
| LED Indicators | HDD x1 |
| USB Port | 2 |
| Slim Optical Drive Slot | 1 |

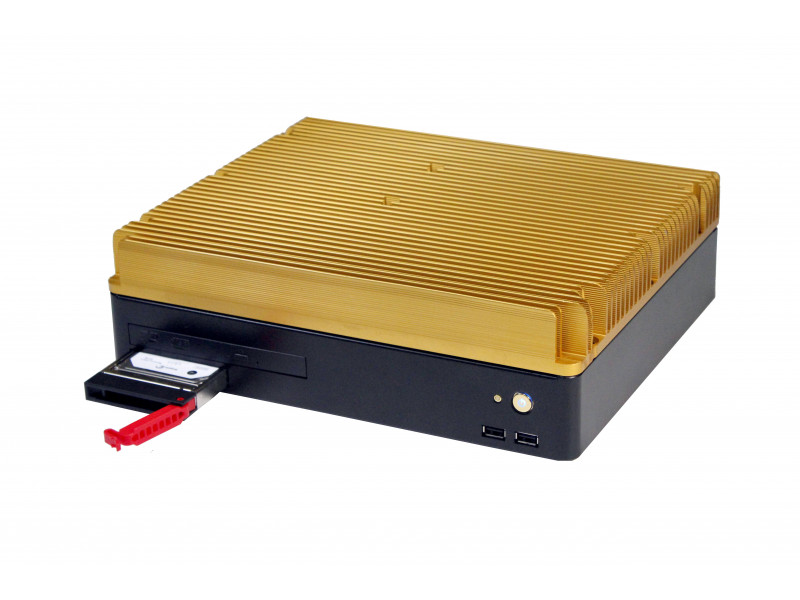

| HDD/SSD # and type Options | 2.5" x1 |

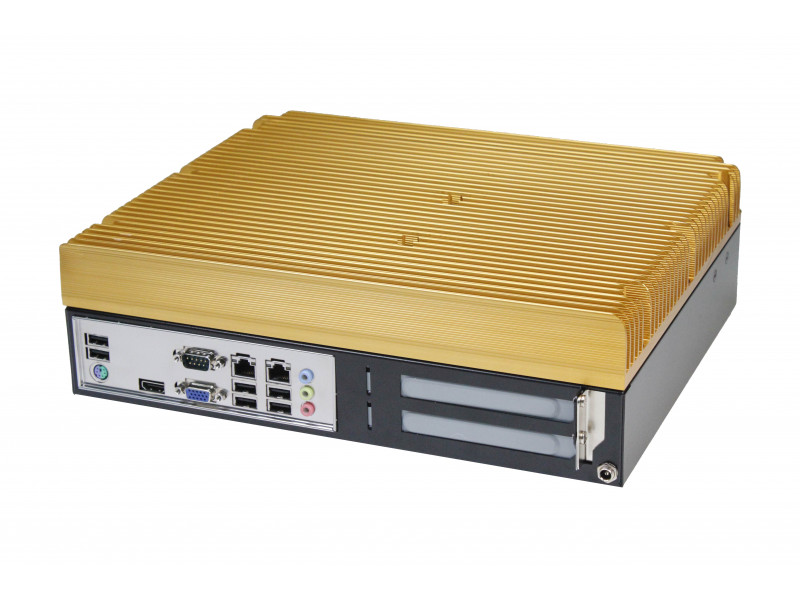

| Back Panel | |
| Standard I/O Shield | 1(Not Included) |
| Expansion Slot | 2 |
| DC Jack | 1 |
| Internal Structure | |
| System Cooling | Thermal Pads/Copper Thermal Block Combination: Which are positioned on the rear-side of the top cover to transfer heat from CPU and chipset to top cover. Aluminum-made Heat Sink Top Cover: With extensive heat sink surface from top cover of the chassis, Kiwatek's fanless chassis provide excellent heat dissipation to eliminate the heat and solve thermal issues. |
| Copper Thermal Block | Positioned on the Back Side of Top Cover Installation Location Could Be Designed for Different Mini-ITX M/B |
| Memory Height | Accept Standard Size |
| HDD/SSD # and type Options | 2.5"SATA HDD/SSD x1 |
| Mechanical & Processing | |
| Dimensions | L:10.3"(262.0mm) x W:12.6"(321mm) x H:3.7"(93.8mm) |
| Applied M/B Form Factor | Mini-ITX |
| Material | Extruded Aluminum and SGCC |
| Surface | Aluminum with Anodized Finish |
| Colour | Black / Champagne Gold |
| Power Solution Option 1 | |
| Internal DC Power Board | C7(80w) DC Power Board |
| External AC Adapter | 60w: Input(AC 100~240V); Output(DC 12V@5A) |
| Power Solution Option 2 | |
| Internal DC Power Board | C7(80w) DC Power Board |
| External AC Adapter | 80w: Input(AC 100~240V); Output(DC 12V@6.67A) |
