ONDO-F380-1
Fanless Chassis for Mini-ITX MB with CPU TDP 65W Max
· Support standard I/O shield
· Support 1 x 2.5" SATA tray(full height) and Slim ODD
· Support 2 x expansion slot for PCIe or PCI card
· Silent, dust-free & energy-efficient operation
· Support standard I/O shield
· Support 1 x 2.5" SATA tray(full height) and Slim ODD
· Support 2 x expansion slot for PCIe or PCI card
· Silent, dust-free & energy-efficient operation
Specification

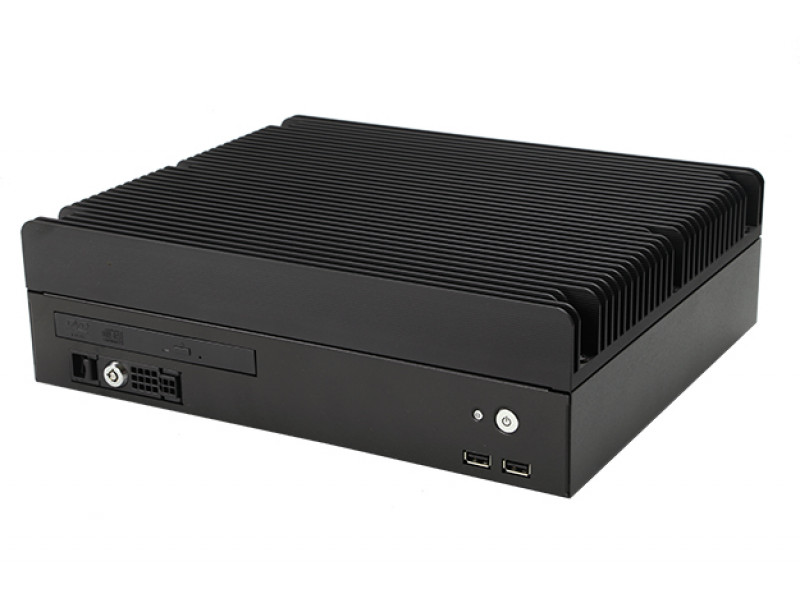

| Front Panel | |
| Power Switch | 1(With LED Indicator) |
| LED Indicators | HDD x1 |
| USB 2.0 Port | 2 |
| Slim Optical Drive Slot | 1 |
| HDD/SSD # and type Options | 2.5" x1(Full Height) |

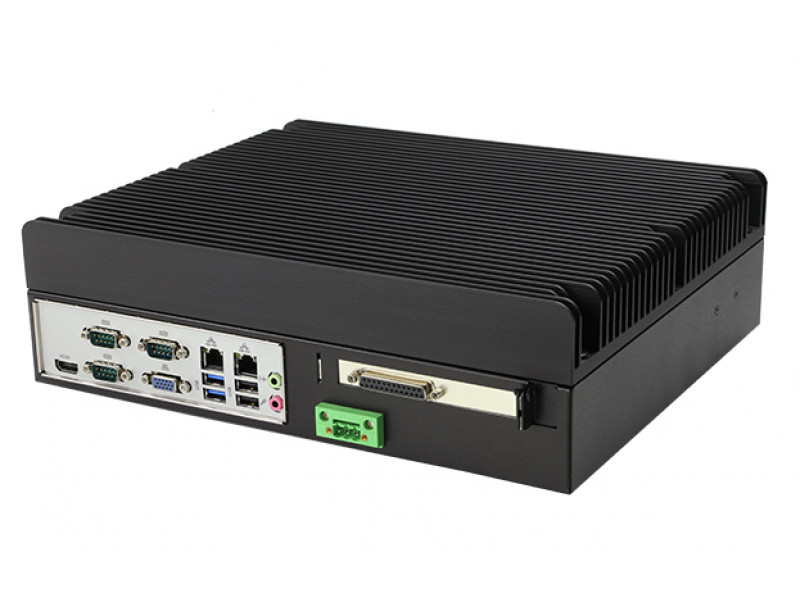

| Back Panel | |
| Standard I/O Shield | 1(Not Included) |
| Expansion Slot | 1 |

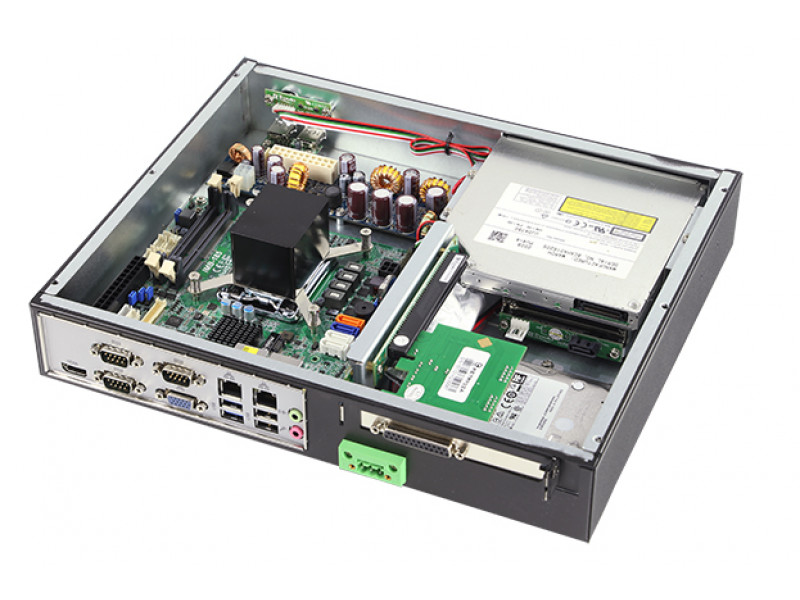

| Internal Structure | |

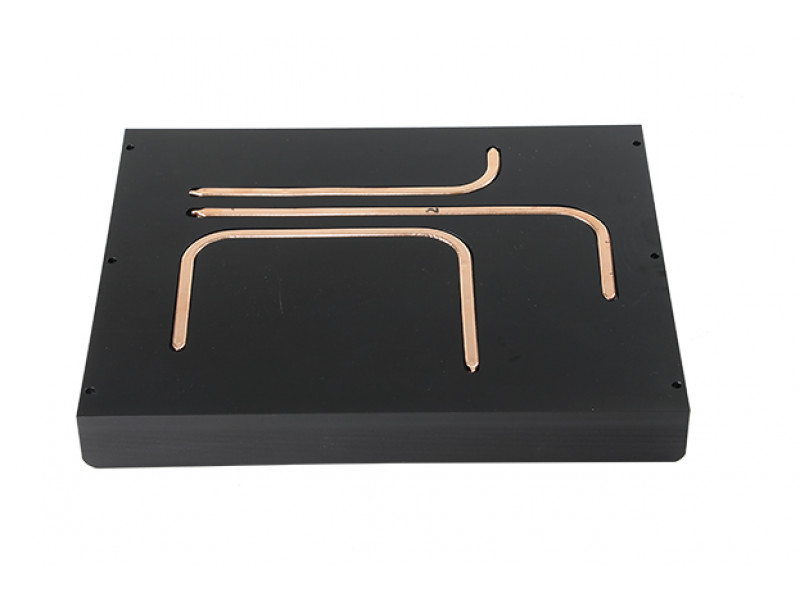

| System Cooling | Thermal Pads/Copper Thermal Block Combination: Which are positioned on the rear-side of the top cover to transfer heat from CPU and chipset to top cover. Aluminum-made Heat Sink Top Cover: With extensive heat sink surface from top cover of the chassis, Kiwatek's fanless chassis provide excellent heat dissipation to eliminate the heat and solve thermal issues. |
| Copper Thermal Block | Positioned on the Back Side of Top Cover Universal Aluminum Block for LGA 775/1155/1150/1151 |
| Memory Height | Accept Standard Size |
| HDD/SSD # and type Options | 2.5"HDD x1 |
| Mechanical & Processing | |
| Dimensions | L:12.6"(321.0mm) x W:10.3"(262.0mm) x H:3.7"(93.8mm) |
| Applied M/B Form Factor | Mini-ITX |
| Material | Zine-Fe Alloy Sheet |
| Surface | Black Wet Paint with Texture Coat |
| Colour | Black / Customizable Colour |
| Power Solution Option | |
| Internal DC Power Board | C4 (150W) DC Power Board |
| External AC Adapter | 120W: Input(AC 100~240V); Output(DC 19V@6.32A) |
