ONDO-F511
Fanless Chassis for Mini-ITX MB with CPU TDP 45W Max
· 3U height
· Adjustable heat pipe solution provides excellent compatibility
· Support 4 x 3.5" SATA tray
· 3U height
· Adjustable heat pipe solution provides excellent compatibility
· Support 4 x 3.5" SATA tray
Specification

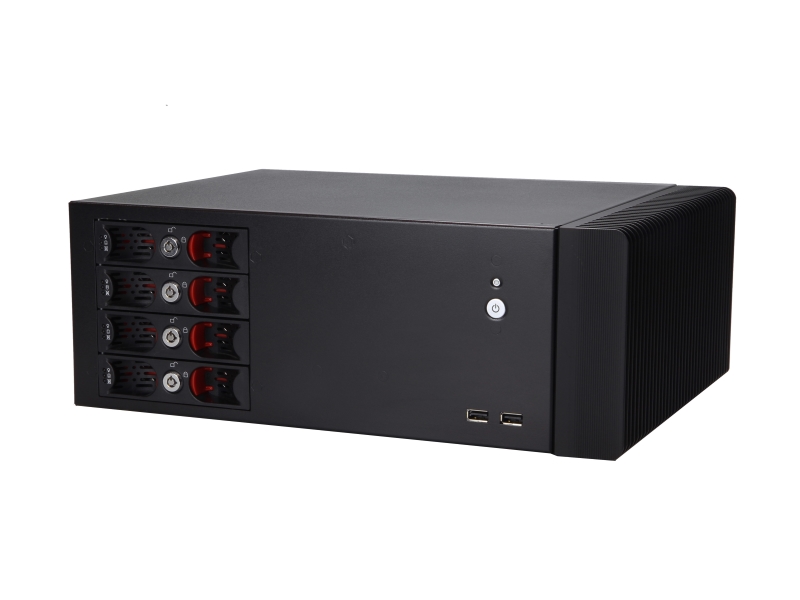

| Front Panel | |
| Power Switch | 1(With LED Indicator) |
| LED Indicators | HDD x1 |
| USB 2.0 Port | 2 |
| HDD/SSD # and type Options | 3.5" x4 |

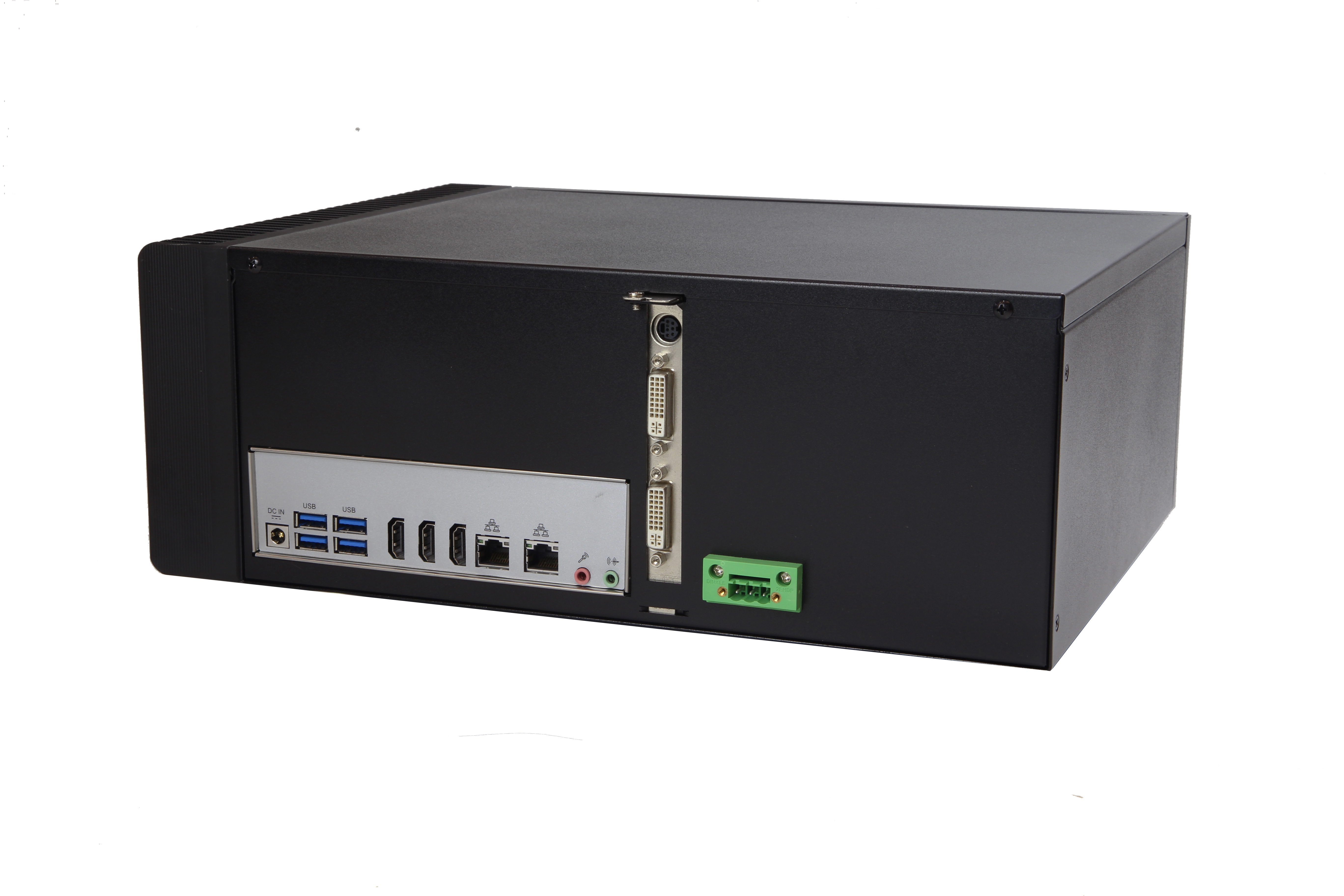

| Back Panel | |
| Standard I/O Shield | 1(Not Included) |
| Expansion Slot | 1 |
| Terminal Block | 1 |

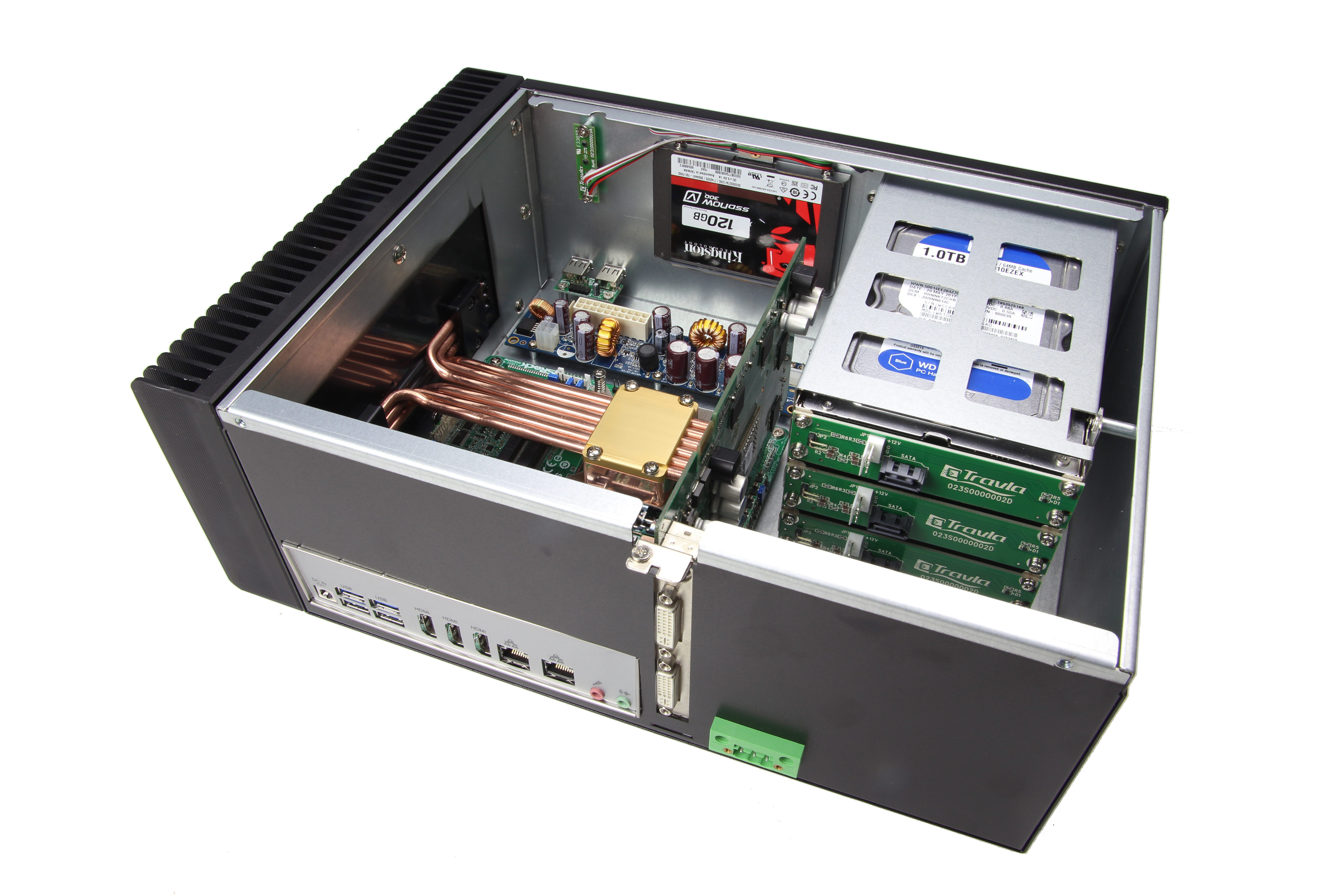

| Internal Structure | |
| Heat-transfer Device | Adjustable Heat Pipe Solution |
| Memory Height | Accept Standard Size |
| HDD/SSD # and type Options | 2.5" x1 |
| Mechanical & Processing | |
| Dimensions | W:14.22"(361.2mm) x D:10.30"(261.5mm) x H:5.20"(132.0mm) |
| Applied M/B Form Factor | Mini-ITX |
| Material | SGCC |
| Surface | Black Wet Paint with Texture Coat |
| Colour | Black / Customizable Colour |
| Power Solution Option 1 | |
| Internal DC Power Board | C4 (150W) DC Power Board |
| External AC Adapter | 90W: Input(AC 100~240V); Output(DC 19V@4.74A) |
| Power Solution Option 2 | |
| Internal DC Power Board | C4 (150W) DC Power Board |
| External AC Adapter | 120W: Input(AC 100~240V); Output(DC 19V@6.32A) |
