ONDO-F526
Fanless Chassis for Mini-ITX MB with CPU TDP 35W Max
· 2U height
· DB9 Ports x4 on Rear I/O
· Adjustable heat pipe solution provides excellent compatibility
· Support 1 x low-profile expansion slot for PCIe or PCI Card
· Support 3 x 2.5" HDD
· 2U height
· DB9 Ports x4 on Rear I/O
· Adjustable heat pipe solution provides excellent compatibility
· Support 1 x low-profile expansion slot for PCIe or PCI Card
· Support 3 x 2.5" HDD
Specification

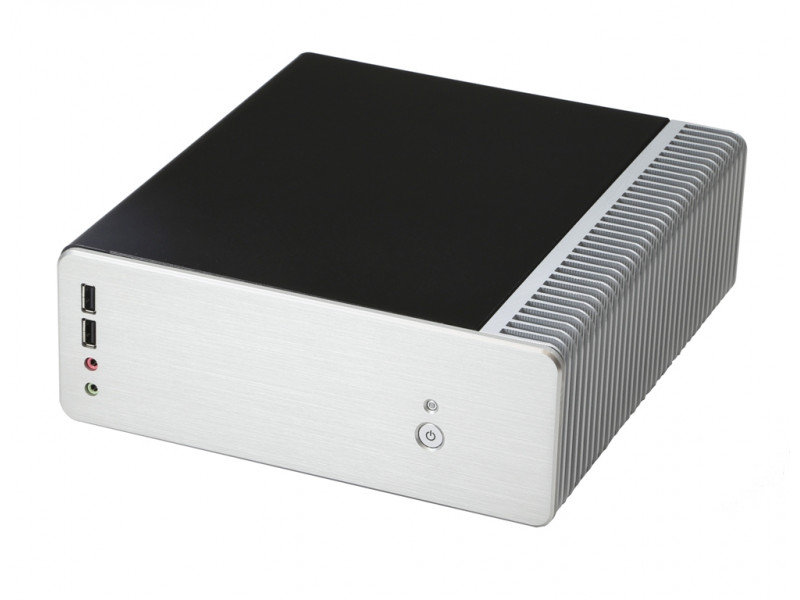

| Front Panel | |
| Power Switch | 1(With LED Indicator) |
| LED Indicators | HDD x1 |
| USB 3.0 Port | 2 |
| Audio In/Out | 1 |

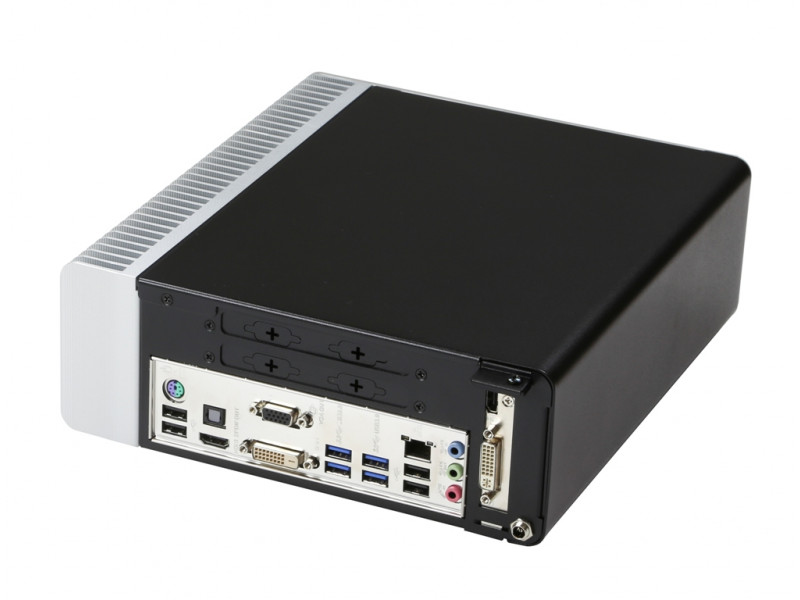

| Back Panel | |
| Standard I/O Shield | 1(Not Included) |
| Expansion Slot | 1(Low Profile) |
| DB9 Port | 4 |

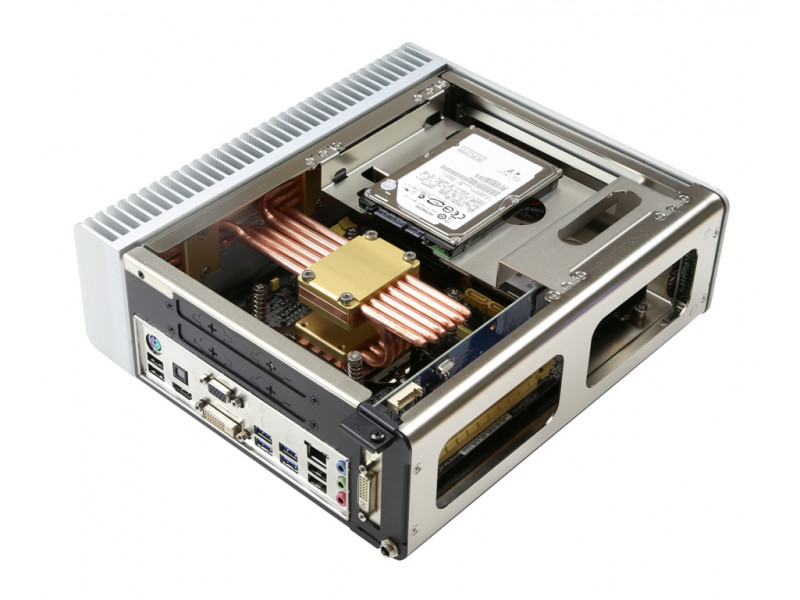

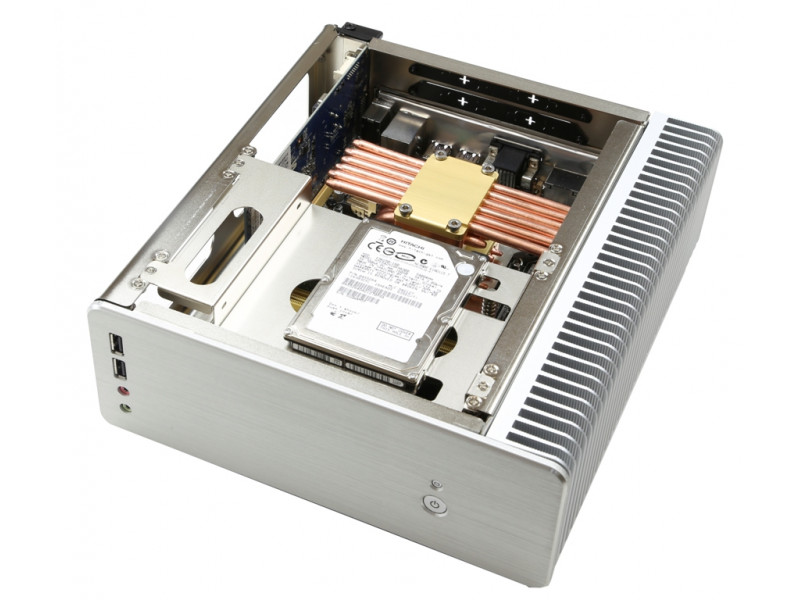

| Internal Structure | |
| Heat-transfer Device | Adjustable Heat Pipe Solution |
| Memory Height | Accept Standard Size |
| HDD/SSD # and type Options | 2.5" x3 |
| Mechanical & Processing | |
| Dimensions | L:9.63"(244.5mm) x W:10.51"(267.0mm) x H:3.46"(87.8mm) |
| Applied M/B Form Factor | Mini-ITX |
| Material | SPCC and Anodized Aluminum Panel |
| Surface | Black Wet Paint with Texture Coat |
| Colour | Black / Customizable Colour |
| Power Solution Option 1 | |
| Internal DC Power Board | C7(80W) DC Power Board |
| External AC Adapter | 60W: Input(AC 100~240V); Output(DC 12V@5A) |
| Power Solution Option 2 | |
| Internal DC Power Board | C7(80W) DC Power Board |
| External AC Adapter | 80W: Input(AC 100~240V); Output(DC 12V@6.67A) |
