ONDO-F530
Fanless Chassis for Mini-ITX MB with CPU TDP 65W Max
· 3U height
· DB9 Ports x4 on Rear I/O

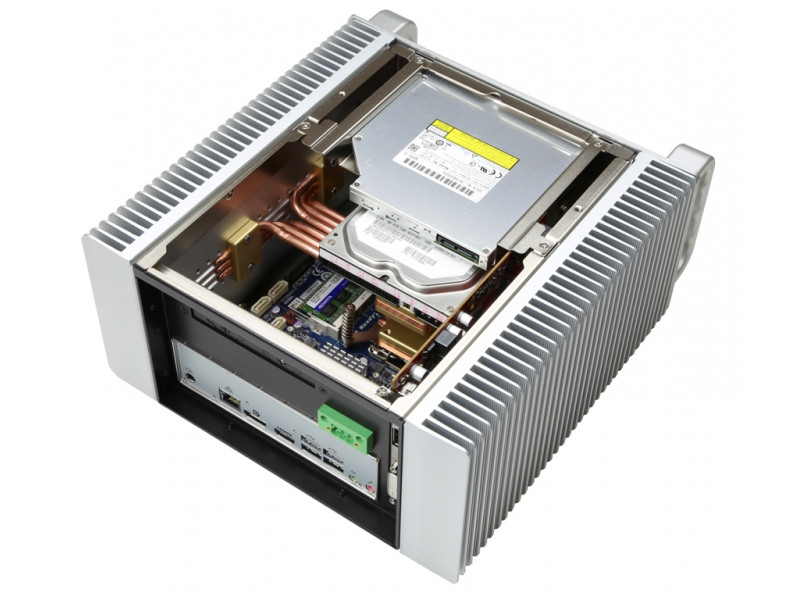

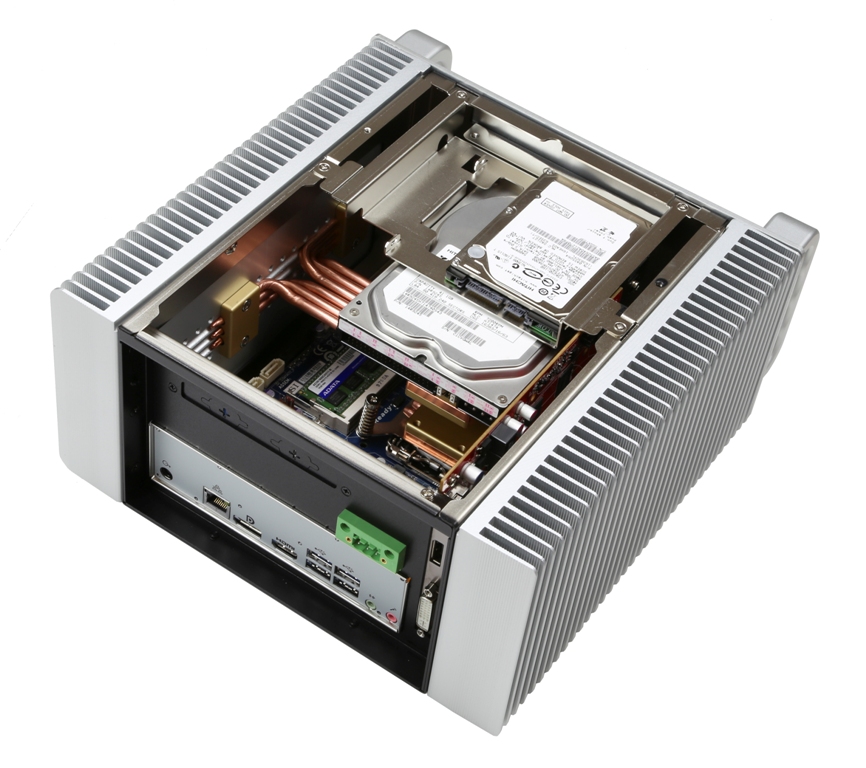

· Adjustable heat pipe solution provides excellent compatibility
· Support 1 x expansion slot for PCIe or PCI Card
· Support 1 x 2.5" HDD + 1 x 3.5" HDD · Support Slim ODD and IR Receiver(Optional)
· 3U height
· DB9 Ports x4 on Rear I/O
· Adjustable heat pipe solution provides excellent compatibility
· Support 1 x expansion slot for PCIe or PCI Card
· Support 1 x 2.5" HDD + 1 x 3.5" HDD · Support Slim ODD and IR Receiver(Optional)
Specification

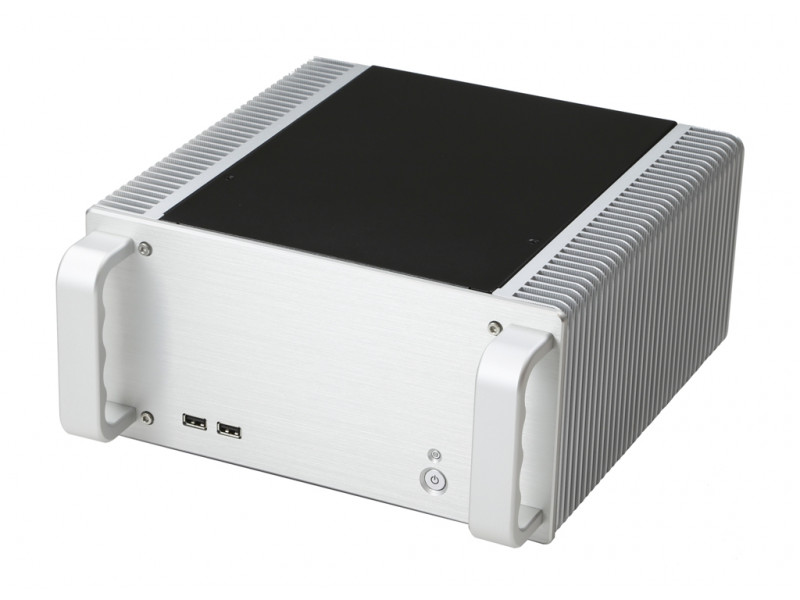

| Front Panel | |
| Power Switch | 1(With LED Indicator) |
| LED Indicators | HDD x1 |
| USB 3.0 Port | 2 |
| Slim Optical Drive | 1 |
| IR Receiver | Optional |

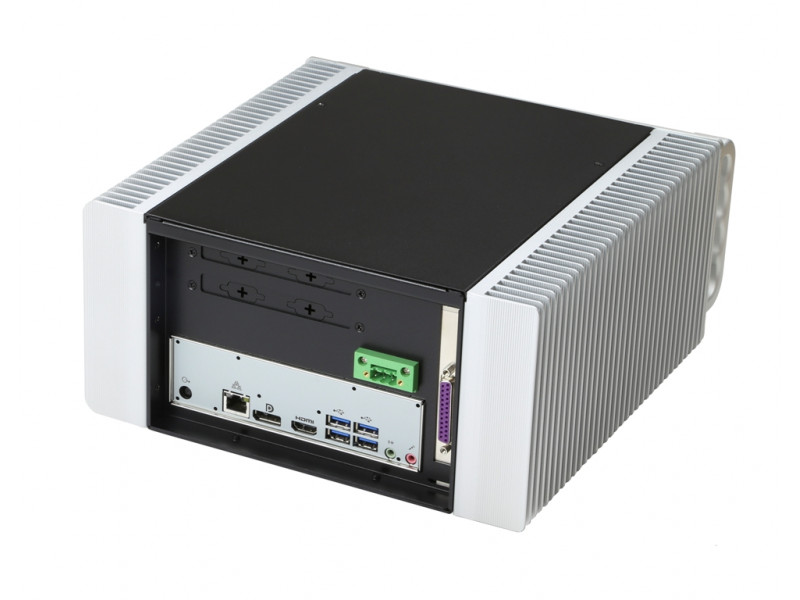

| Back Panel | |
| Standard I/O Shield | 1(Not Included) |
| Expansion Slot | 1 |
| DB9 Port | 4 |
| Internal Structure | |
| Heat-transfer Device | Adjustable Heat Pipe Solution |
| Memory Height | Accept Standard Size |

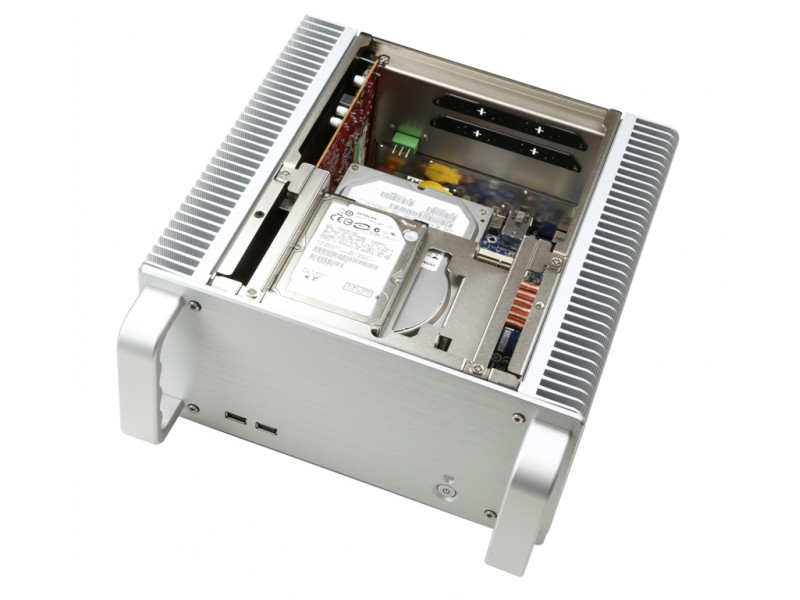

| HDD/SSD # and type Options | 3.5" x1 + 2.5" x1 |
| Mechanical & Processing | |
| Dimensions | L:10.79"(274.0mm) x W:10.56"(268.3mm) x H:5.20"(132mm) |
| Applied M/B Form Factor | Mini-ITX |
| Material | SPCC and Anodized Aluminum Panel |
| Surface | Black Wet Paint with Texture Coat |
| Colour | Black / Customizable Colour |
| Power Solution Option 1 | |
| Internal DC Power Board | C4(150W, 19V~24V) DC Power Board |
| External AC Adapter | 90W: Input(AC 100~240V); Output(DC 19V@4.74A) |
| Power Solution Option 2 | |
| Internal DC Power Board | C4(150W, 19V~24V) DC Power Board |
| External AC Adapter | 120W: Input(AC 100~240V); Output(DC 19V@6.32A) |
