ONDO-F531


Fanless Chassis for Mini-ITX MB with CPU TDP 65W Max

· 3U height
· DB9 Ports x4 on Rear I/O
· Adjustable heat pipe solution provides excellent compatibility
· Support 1 x expansion slot for PCIe or PCI Card
· Support 2 x 2.5" HDD
· Support Slim ODD and IR Receiver(Optional)



Specification

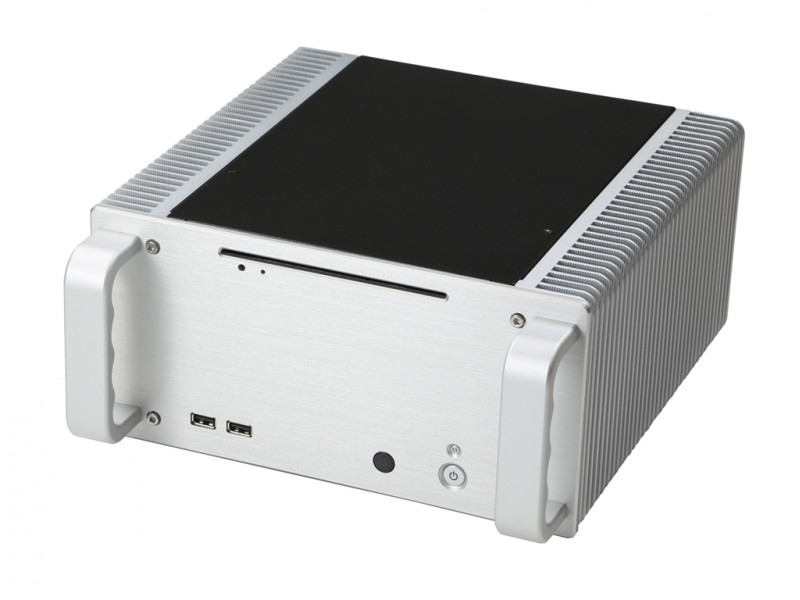

Front Panel
Power Switch 1(With LED Indicator)
LED Indicators HDD x1
USB 3.0 Port 2

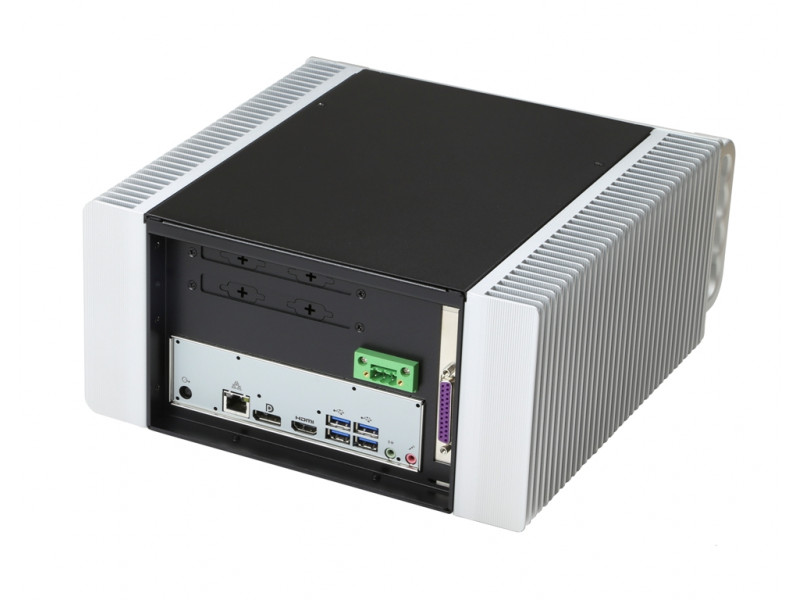

Back Panel
Standard I/O Shield  1(Not Included)
Expansion Slot 1
DB9 Port 4
Terminal Block 1

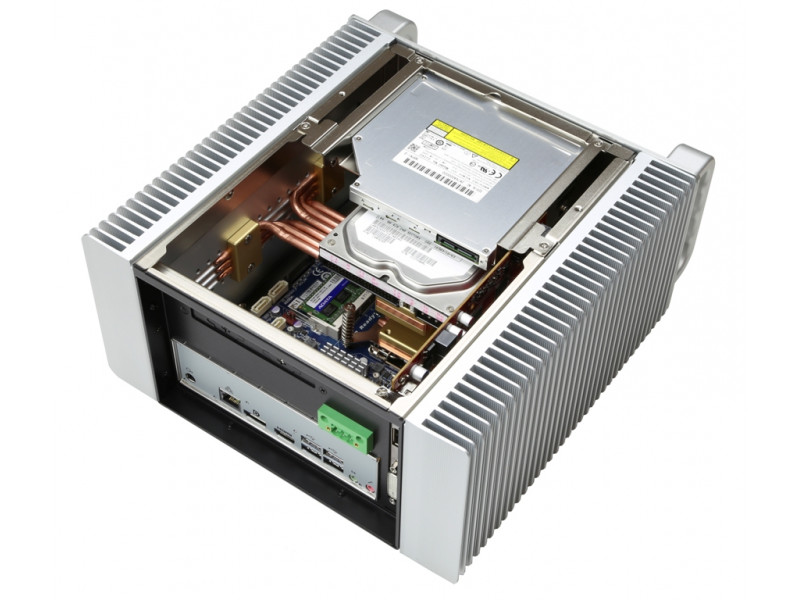

Internal Structure
Heat-transfer Device Adjustable Heat Pipe Solution
Memory Height Accept Standard Size
HDD/SSD # and type Options           3.5" x1 + 2.5" x2
Mechanical & Processing
Dimensions L:10.79"(274.0mm) x W:10.56"(268.3mm) x H:5.20"(132mm)
Applied M/B Form Factor  Mini-ITX
Material SPCC and Anodized Aluminum Panel
Surface Black Wet Paint with Texture Coat
Colour Black / Customizable Colour
Power Solution Option 1
Internal DC Power Board C4(150W, 19V~24V) DC Power Board
External AC Adapter 90W: Input(AC 100~240V); Output(DC 19V@4.74A)
Power Solution Option 2
Internal DC Power Board C4(150W, 19V~24V) DC Power Board
External AC Adapter 120W: Input(AC 100~240V); Output(DC 19V@6.32A)
