ONDO-F546
Fanless Chassis for Mini-ITX MB with CPU TDP 65W Max
· 4U height
· DB9 Ports x4 on Rear I/O
· Adjustable heat pipe solution provides excellent compatibility
· Support 3 x expansion slot for PCIe or PCI Card
· Support 2 x 2.5" HDD + 1 x 3.5" HDD
· 4U height
· DB9 Ports x4 on Rear I/O
· Adjustable heat pipe solution provides excellent compatibility
· Support 3 x expansion slot for PCIe or PCI Card
· Support 2 x 2.5" HDD + 1 x 3.5" HDD
Specification

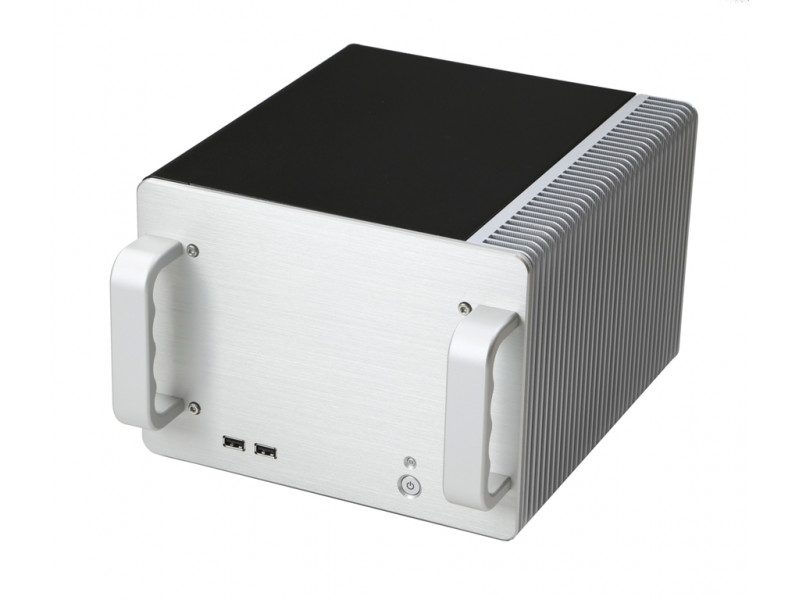

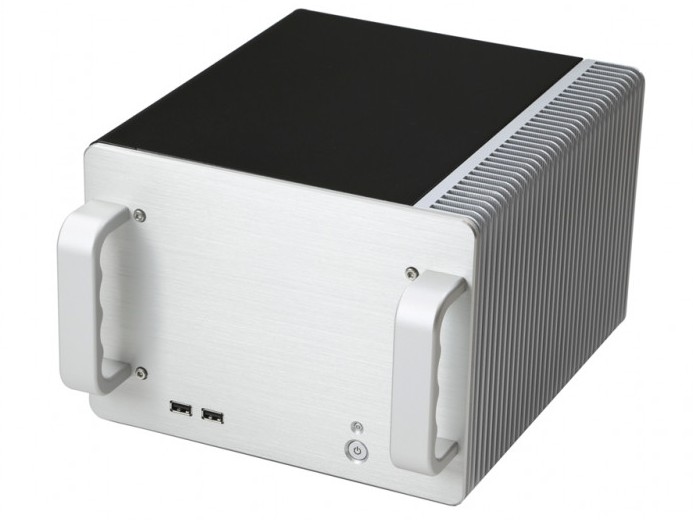

| Front Panel | |
| Power Switch | 1(With LED Indicator) |
| LED Indicators | HDD x1 |
| USB 3.0 Port | 2 |

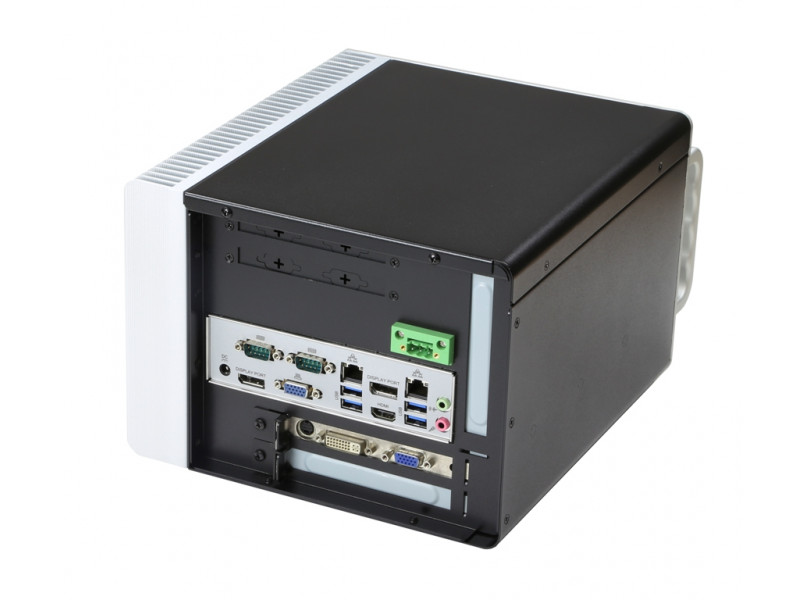

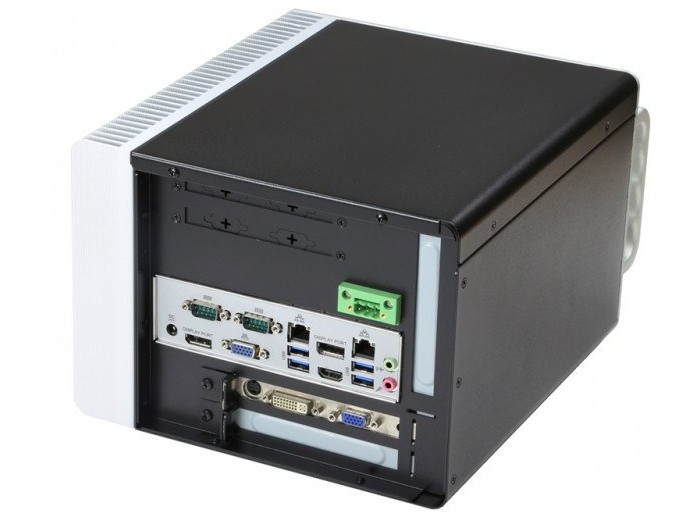

| Back Panel | |
| Standard I/O Shield | 1(Not Included) |
| Expansion Slot | 3 |
| DB9 Port | 4 |
| Terminal Block | 1 |

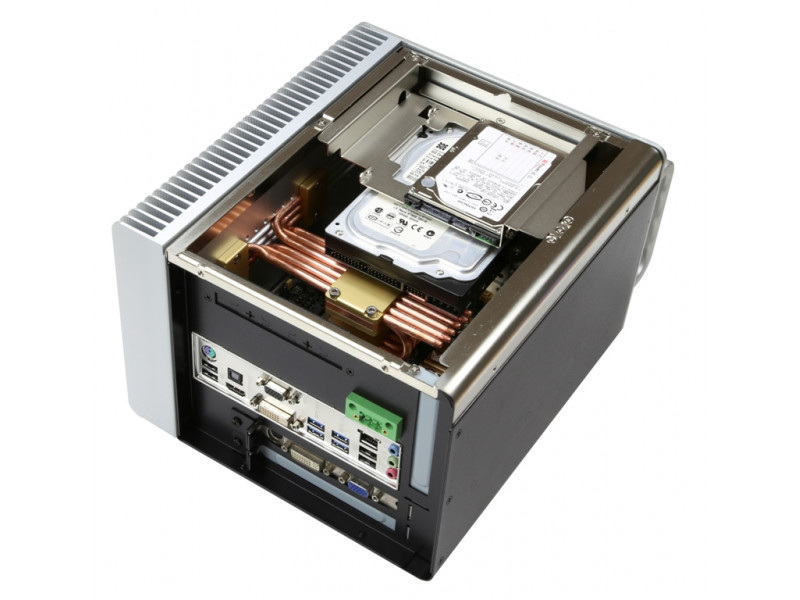

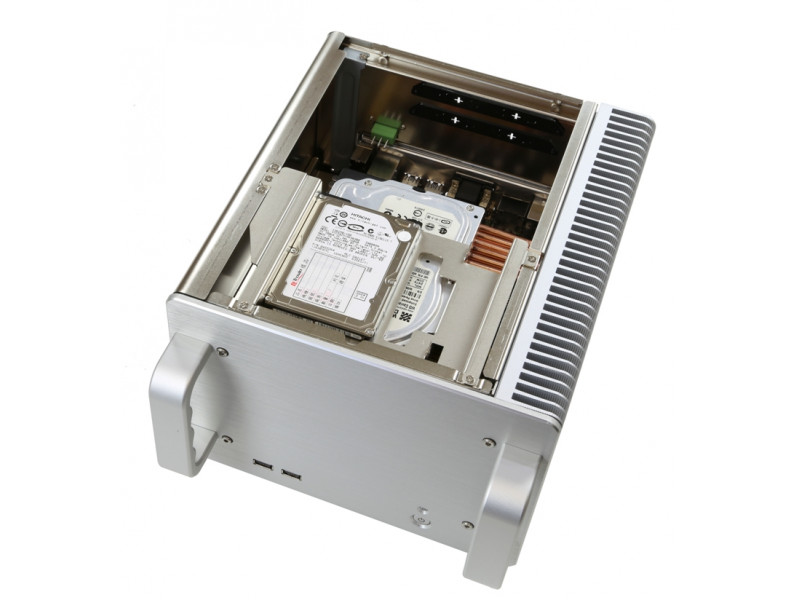

| Internal Structure | |
| Heat-transfer Device | Adjustable Heat Pipe Solution |
| Memory Height | Accept Standard Size |
| HDD/SSD # and type Options | 3.5" x1 + 2.5" x1 |
| Mechanical & Processing | |
| Dimensions | L:9.57"(243.0mm) x W:10.55"(268.0mm) x H:6.89"(175.0mm) |
| Applied M/B Form Factor | Mini-ITX |
| Material | SPCC and Anodized Aluminum Panel |
| Surface | Black Wet Paint with Texture Coat |
| Colour | Black / Customizable Colour |
| Power Solution Option 1 | |
| Internal DC Power Board | C4(150W, 19V~24V) DC Power Board |
| External AC Adapter | 90W: Input(AC 100~240V); Output(DC 19V@4.74A) |
| Power Solution Option 2 | |
| Internal DC Power Board | C4(150W, 19V~24V) DC Power Board |
| External AC Adapter | 120W: Input(AC 100~240V); Output(DC 19V@6.32A) |
