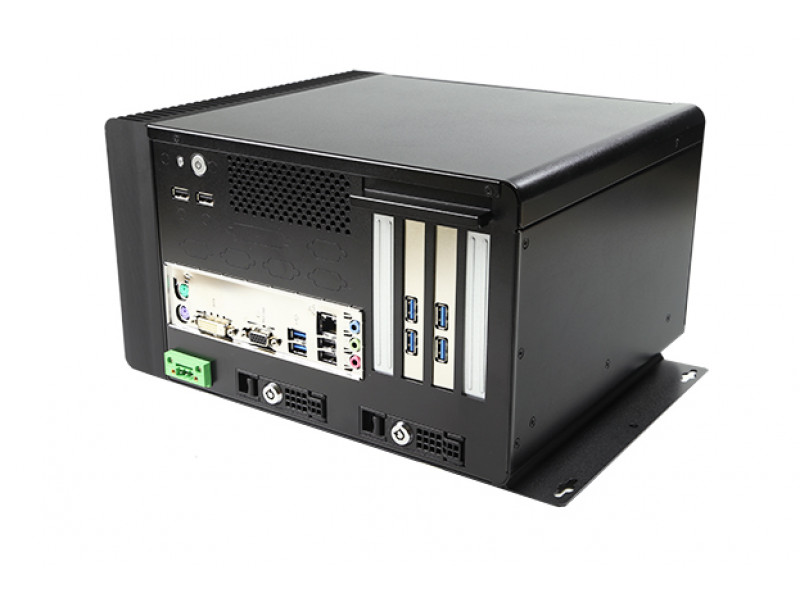

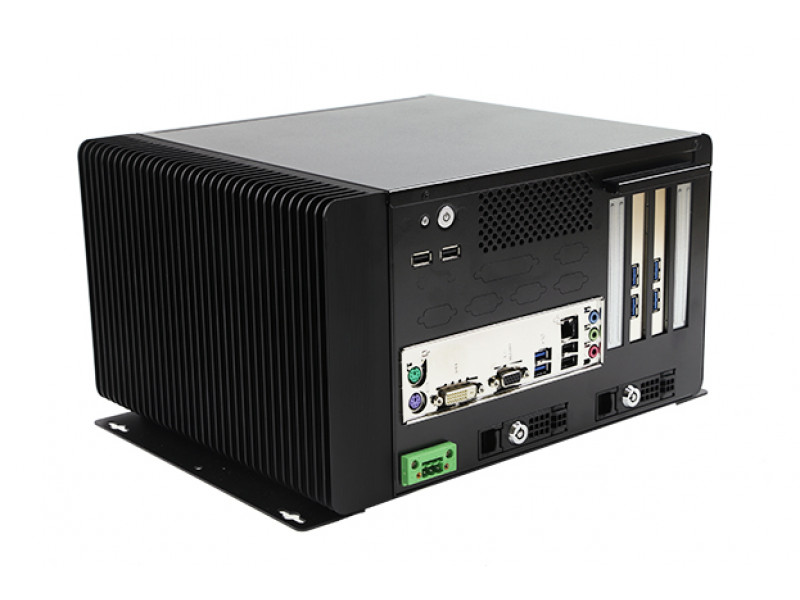

ONDO-F548
4U Fanless Chassis for Micro-ATX MB with CPU TDP 60W Max
· Adjustable heat pipe solution provides excellent compatibility
· Support 4 x expansion slot for PCIe or PCI Card
· Support 2 x 2.5" SATA tray(full height) · Silent, dust-free & energy-efficient operation
· Adjustable heat pipe solution provides excellent compatibility
· Support 4 x expansion slot for PCIe or PCI Card
· Support 2 x 2.5" SATA tray(full height) · Silent, dust-free & energy-efficient operation
Specification
| Back Panel | |
| Power Switch | 1(With LED Indicator) |
| LED Indicators | HDD x1 |
| USB 2.0 Port | 2 |
| COM Port | 5 |
| LPT | 1 |
| HDD/SSD # and type Options | 2.5"HDD Serial ATA Tray(Full Height) x2 |
| Standard I/O Slot | 1(Not Included) |
| Expansion Slot | 4 |
| Internal Structure | |

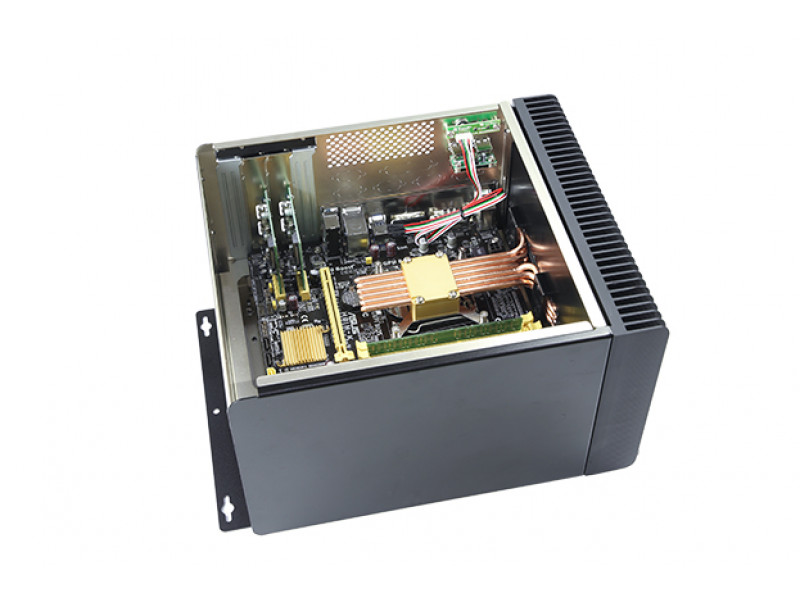

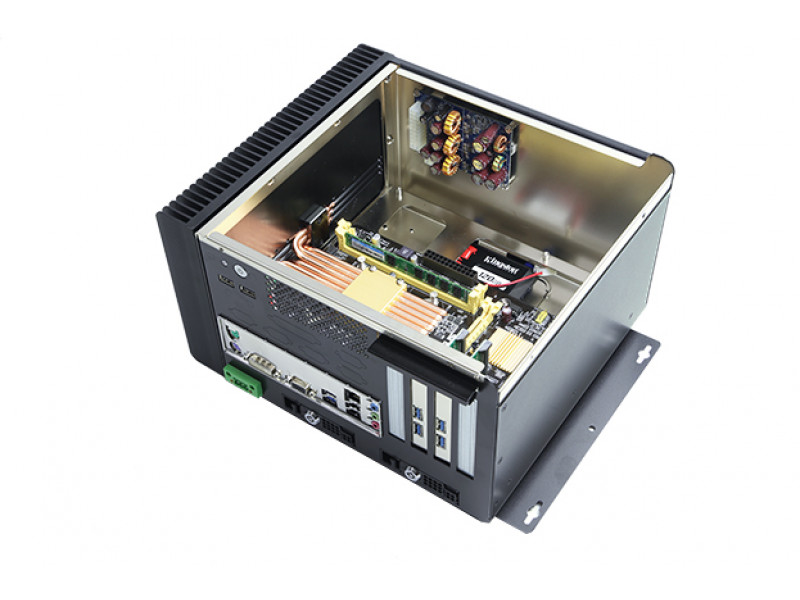

| Heat-transfer Device | Adjustable Heat Pipe Solution |
| Memory height | Accept standard size |
| HDD/SSD # and type Options | 2.5"HDD x2 |
| Mechanical & Processing | |
| Dimensions | W: 12" (304.9mm) x D: 10.34" (262.6 mm) x H: 6.89"(175.0mm) |
| Applied M/B Form Factor | Micro-ATX |
| Material | Zine-Fe Alloy Sheet |
| Surface | Black Wet Paint with Texture Coat |
| Colour | Black / Customizable Colour |
| Power Solution Option | |
| Internal DC Power Board | C5(150W, 19V~24V) DC Power Board |
| External AC Adapter | 120W: Input(AC 100~240V); Output(DC 19V@6.32A) |
