ONDO-F600
Fanless Chassis for NUC MB with CPU TDP 15W
· Support wall/Vesa mounting bracket(optional)
· Support IR remote function
· Support kensington lock
· Support wall/Vesa mounting bracket(optional)
· Support IR remote function
· Support kensington lock
Specification

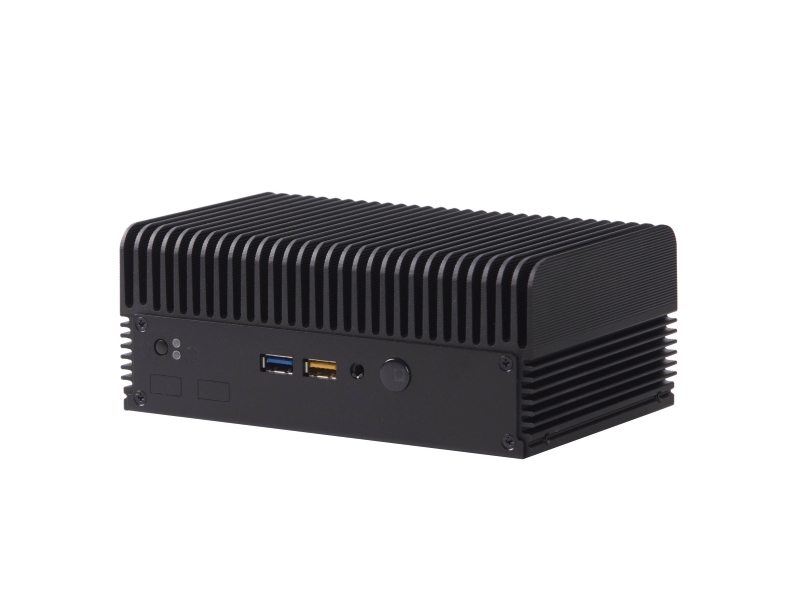

| Front Panel | |
| Power Switch | 1 |
| LED Indicators | HDD x1; Power x1 |
| USB Port 2.0 | 2 |
| Back Panel | |
| USB Port 3.0 | 2 |
| Mini Display Port | 1 |
| Gigabit LAN | 1 |
| HDMI | 1 |
| ANT | 2 |
| Kensington Lock | 1 |
| Internal Structure | |
| System Cooling | Thermal Pads/Copper Thermal Block Combination: Which are positioned on the back-side of the top cover to transfer heat from CPU and chipset(North bridge and South bridge) to top cover. Aluminum-made Heat Sink Top Cover: With extensive heat sink surface from top cover to two sides of the chassis, Kiwatek's fanless chassis provide excellent heat dissipation to eliminate the heat and solve thermal issues. |
| Memory Height | Accept Standard Size |
| Mechanical & Processing | |
| Dimensions | W:6.77"(171.95mm) x D:4.3"(109.4mm) x H:2.81"(71.5mm) |
| M/B Form Factor | NUC |
| Material | SGCC |
| Surface | Black Wet Paint with Texture Coat |
| Colour | Black / Customizable Colour |
| Power Solution Option | |
| Power Supply | 12V-19V DC IN |
