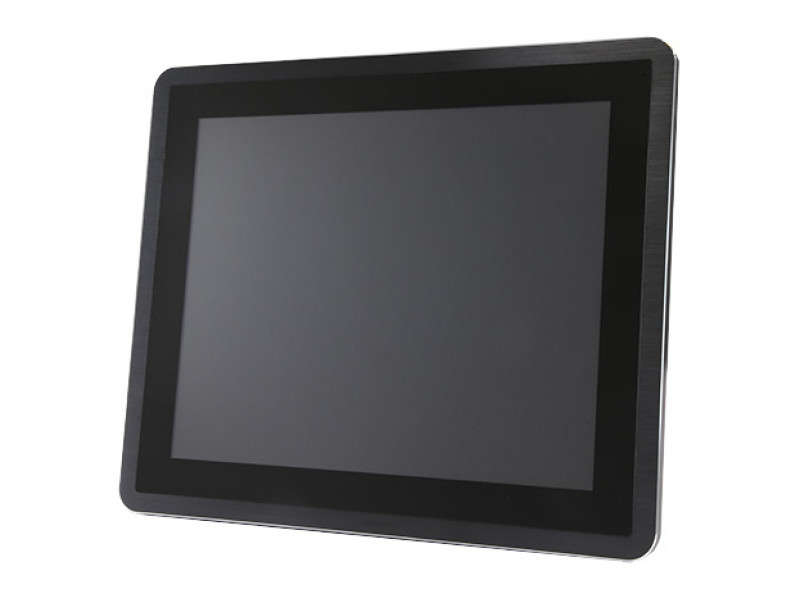

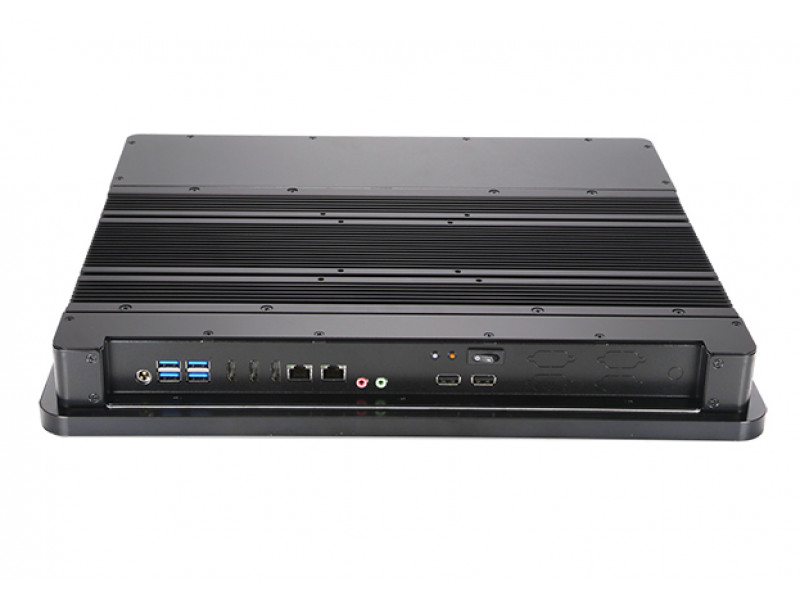

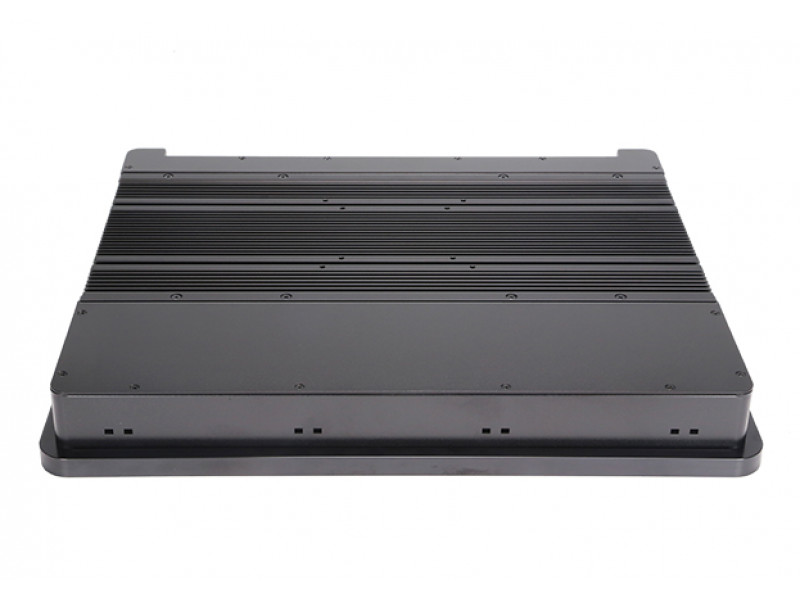

OSU-P1702
17" panel with touch
· For 3.5" SBC with CPU TDP 37W Max
· IP65 front bezel
· Silent and dust-free
· For 3.5" SBC with CPU TDP 37W Max
· IP65 front bezel
· Silent and dust-free
Specification
| LCD | Resolution: 1280xRGBx1024 Brightness: 250cd/m2 (typ.) Color Support: 16.7M/262k Contrast Ratio: 1000:1 (typ.) Response Time: 5ms (typ.) |
| Touch | Touchscreen Type: Projected Capacitive Surface Hardness: ≥7H Durability: 100,000,000 times Transparency: ≥90% |
| TDP | Max. 37W |
| Storage | 2.5” HDD x1 |
| Form Factor | Mini-ITX |
| Dimension | 426.9 x 358.3 x 54.8mm |
| Material | SGCC / Anodized Aluminum Heatsink |
| Surface | Black Wet Paint With Texture Coat |
| Power Solution Option 1 | |
| Internal DC Power Board | C7(80W) DC Power Board |
| External AC Adapter | 60W: Input(AC 100~240V); Output(DC 12V@5A) |
| Power Solution Option 2 | |
| Internal DC Power Board | C7(80W) DC Power Board |
| External AC Adapter | 80W: Input(AC 100~240V); Output(DC 12V@6.67A) |
| Power Solution Option 3 | |
| Internal DC Power Board | C4(150W, 19V~24V) DC Power Board |
| External AC Adapter | 90W: Input(AC 100~240V); Output(DC 19V@4.74A) |
| Power Solution Option 4 | |
| Internal DC Power Board | C4(150W, 19V~24V) DC Power Board |
| External AC Adapter | 120W: Input(AC 100~240V); Output(DC 19V@6.32A) |
