TAWA-T1121
1U Industrial Rackmount Chassis for Mini-ITX systems
· Support 2 x expansion slot for PCIe or PCI card
· With adjustable add-on card bracket
· Support 2 x 2.5" SATA tray(full-height)
· Excellent cooling with 3 x 4cm Fans(2 Ball Bearing)
· Support 2 x expansion slot for PCIe or PCI card
· With adjustable add-on card bracket
· Support 2 x 2.5" SATA tray(full-height)
· Excellent cooling with 3 x 4cm Fans(2 Ball Bearing)
Specification

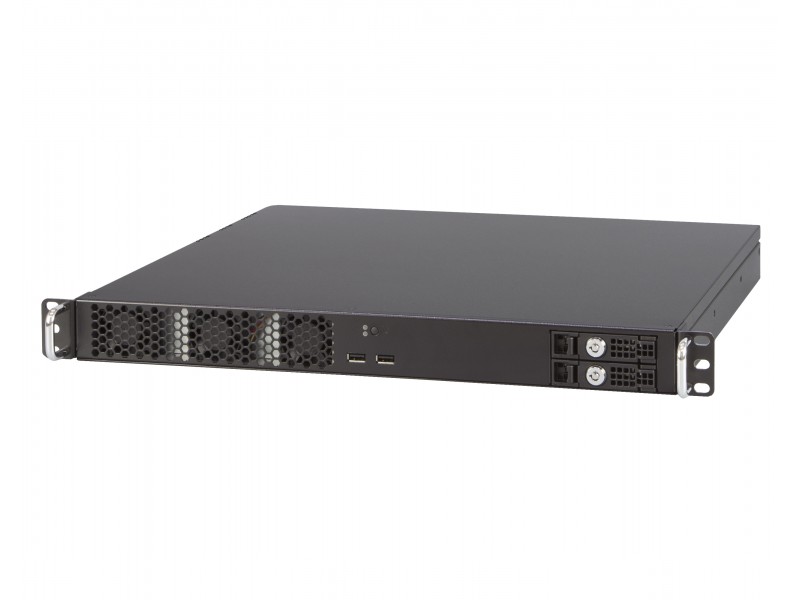

| Front Panel | |
| Power Switch | 1 |
| LED Indicators | HDD x1; Power x1 |
| USB Port | 2 |
| HDD/SSD # and type | 2.5" x2 |

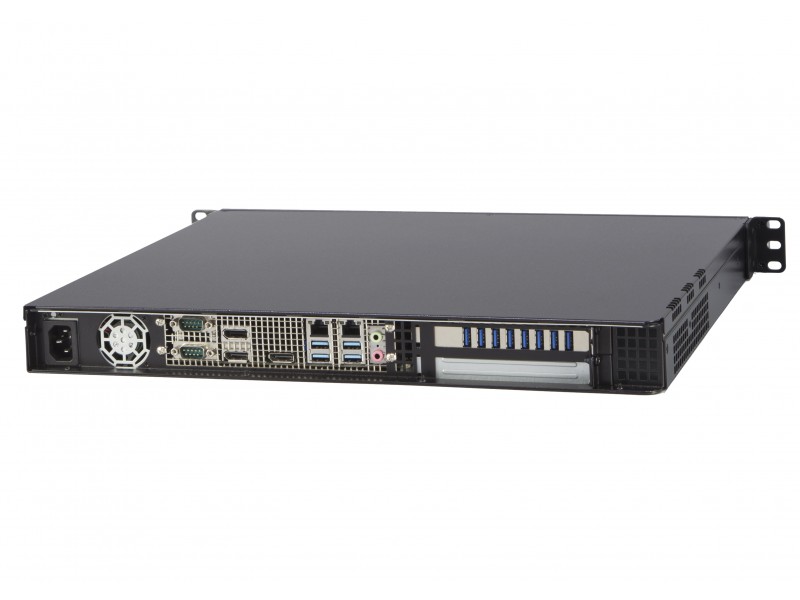

| Back Panel | |
| Standard I/O Shield | With Universal I/O Shield |
| Expansion Slot | 2 |
| AC Socket | 1 |

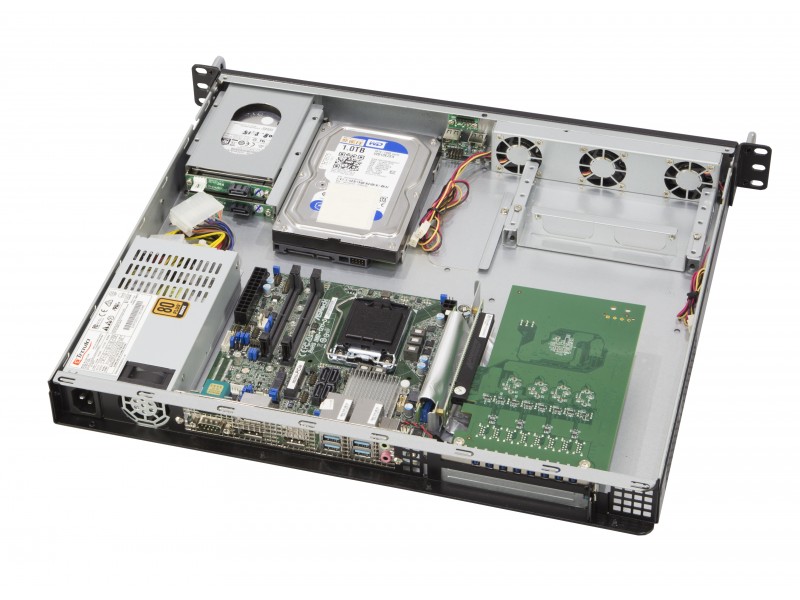

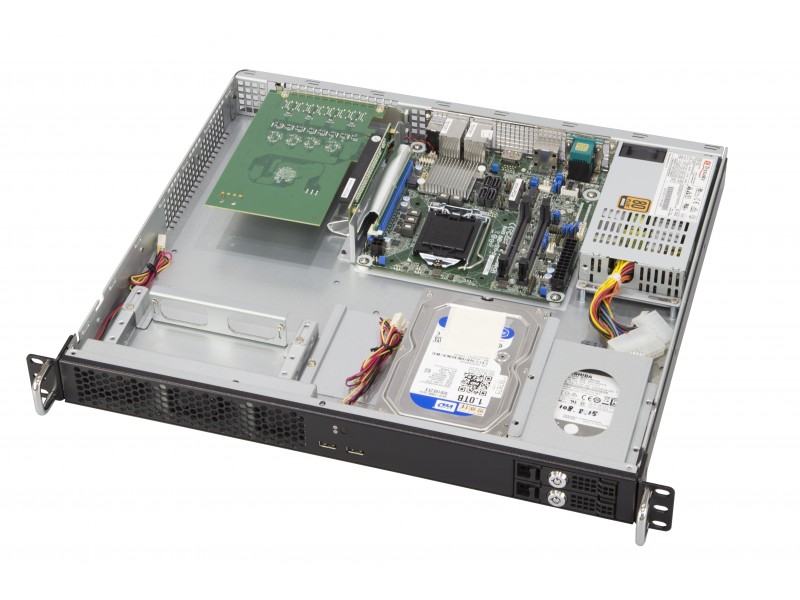

| Internal Structure | |
| System Cooling | 4cm Fan(2 Ball Bearing) x3 |
| Memory Height | Accept Standard Size |
| HDD/SSD # and type | 3.5" x1 or 2.5" x1 |
| Mechanical & Processing | |
| Dimensions | W:19.00"(482.6mm) x D:15.19"(385.9mm) x H: 1.73"(43.8mm) |
| Applied M/B Form Factor | MINI-ITX |
| Material | SGCC |
| Surface | Black Wet Paint with Texture Coat |
| Colour | Black / Customizable Colour |
| Power Solution Option | |
| Flex ATX Power Supply | Flex ATX 250W/300W/400W/500W Power Supply (AC 110~240V Auto-switching) |
