TAWA-T1220
1U Industrial Rackmount Chassis for Dual Mini-ITX Systems
· Front accessible connectors
· Support 2 x 3.5" SATA tray
· Simple assembling and easy system integration
· Both internal and external storage capacity
· Front accessible connectors
· Support 2 x 3.5" SATA tray
· Simple assembling and easy system integration
· Both internal and external storage capacity
Specification

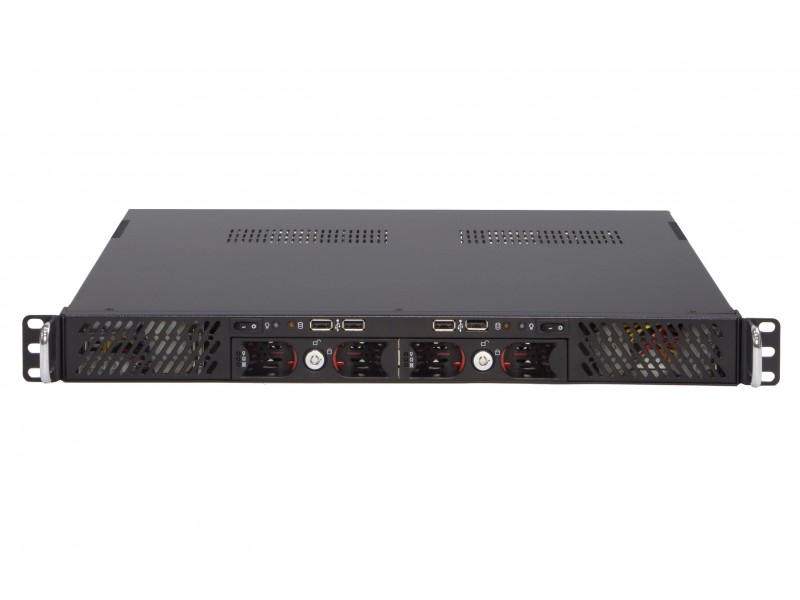

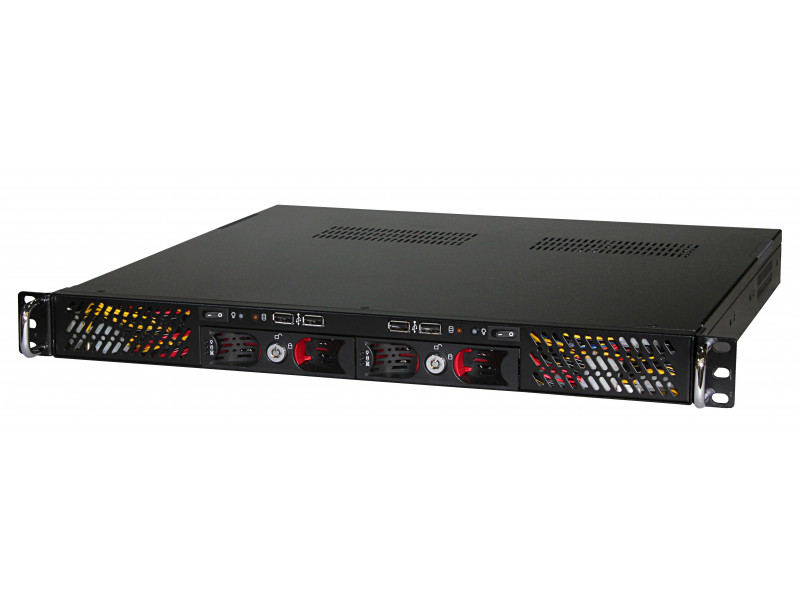

| Front Panel | |
| Power Switch | 2 |
| LED Indicators | HDD x2; Power x2 |
| USB 2.0 Port | 2 x2 |
| HDD/SSD # and type | 3.5" x2 |
| Back Panel | |
| Standard I/O Shield | With Universal I/O Shields |

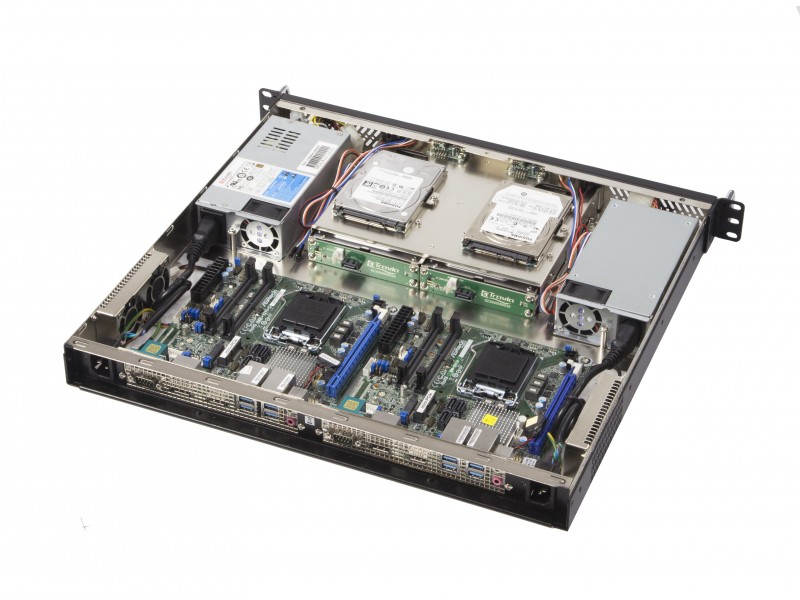

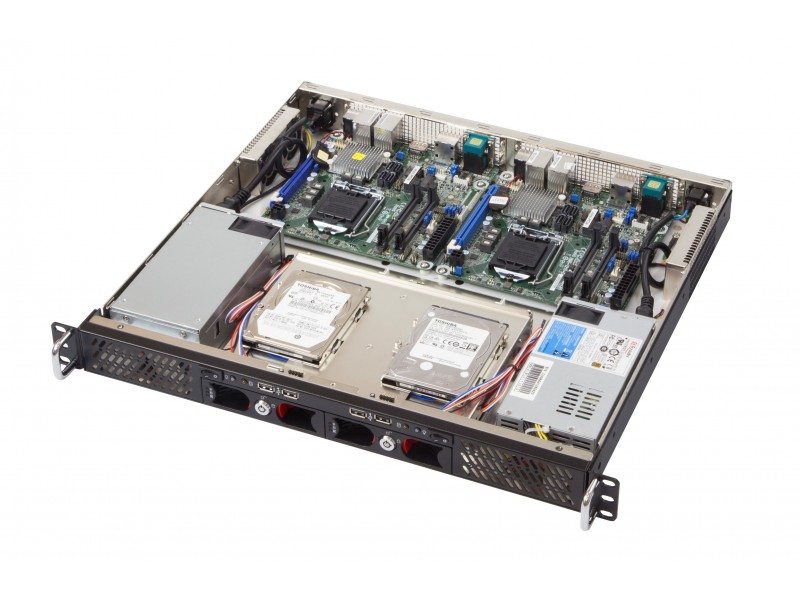

| Internal Structure | |
| System Cooling | 4cm Fan(2 Ball Bearing) x4 |
| Memory Height | Accept Standard Size |
| HDD/SSD # and type | 2.5" x2 |
| Mechanical & Processing | |
| Dimensions | W:19.00"(482.6mm) x D:16.06"(407.8mm) x H:1.73"(43.9mm) |
| Applied M/B Form Factor | Mini-ITX x2 |
| Material | Heavy Duty Cold-rolled Steel |
| Surface | Black Wet Paint with Texture Coat |
| Colour | Black / Customizable Colour |
| Power Solution Option 1 | |
| Internal DC Power Board | C7(80W) DC Power Board |
| External AC Adapter | 60W: Input(AC 100~240V); Output(DC 12V@5A) |
| Power Solution Option 2 | |
| Internal DC Power Board | C7(80W) DC Power Board |
| External AC Adapter | 80W: Input(AC 100~240V); Output(DC 12V@6.67A) |
| Power Solution Option 3 | |
| Internal DC Power Board | C4(150W, 19V~24V) DC Power Boar |
| External AC Adapter | 90W: Input(AC 100~240V); Output(DC 19V@4.74A) |
| Power Solution Option 4 | |
| Internal DC Power Board | C4(150W, 19V~24V) DC Power Boar |
| External AC Adapter | 120W: Input(AC 100~240V); Output(DC 19V@6.32A) |
| Power Solution Option 5 | |
| Flex ATX Power Supply | Flex ATX 250/300/400watts Power Supply(AC 110~240V Auto-switching) |
