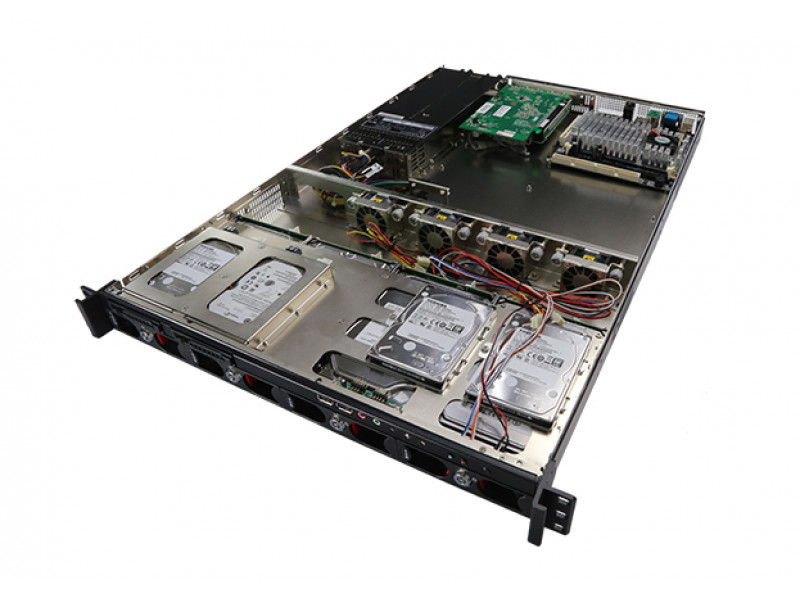

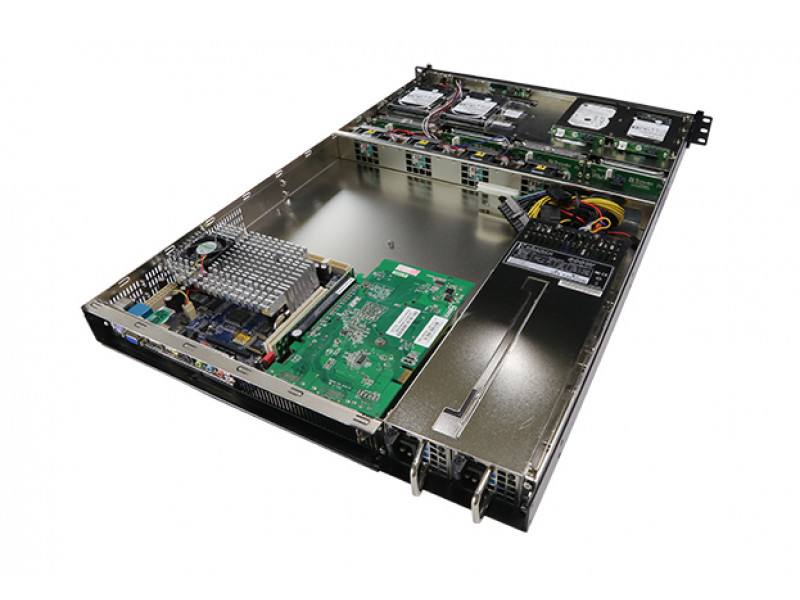

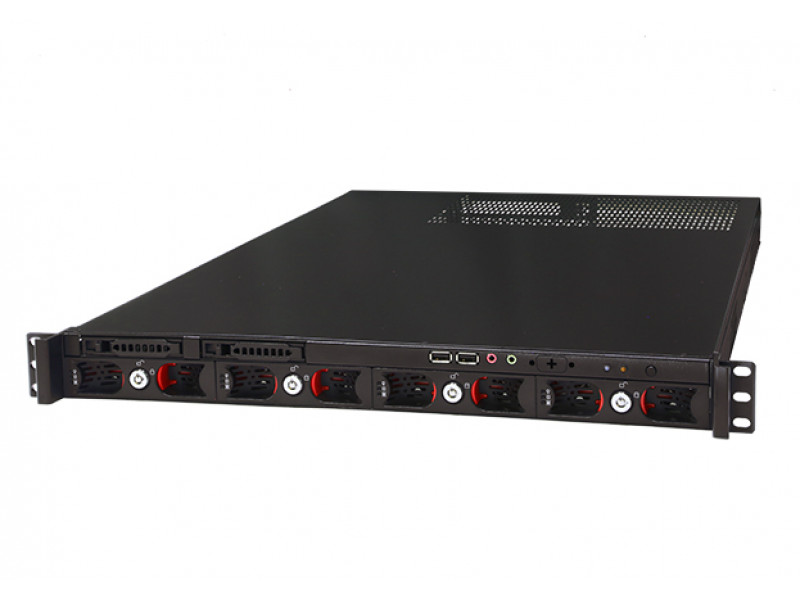

TAWA-T1442
1U Industrial Rackmount Chassis for ATX MB
· Support 4 x 3.5" SATA tray + 2 x 2.5" SATA tray<
· Support 1 x expansion slot for PCIe or PCI card
· Support 1U redundant power supply
· Excellent cooling with 4 x 4cm fan(2 ball bearing)
· Support 4 x 3.5" SATA tray + 2 x 2.5" SATA tray<
· Support 1 x expansion slot for PCIe or PCI card
· Support 1U redundant power supply
· Excellent cooling with 4 x 4cm fan(2 ball bearing)
Specification
| Front Panel | |
| Power Switch | 1 |
| LED Indicators | HDD x1; Power x1 |
| USB Port | 2 |
| Audio In/Out | 1 |
| HDD/SSD # and type | 2.5'' x2 + 3.5'' x4 |
| Back Panel | |
| Standard I/O Shield | With Universal I/O Shields |
| Expansion Slot | 1 |
| Internal Structure | |
| System Cooling | 4cm Fan(2 Ball Bearing) x4 |
| Memory Height | Accept Standard Size |
| HDD/SSD # and type | 2.5" x2 |
| Mechanical & Processing | |
| Dimensions | W:19.00"(482.8mm) x D:26.90"(684.5mm) x H:1.72"(43.85mm) |
| Applied M/B Form Factor | ATX |
| Material | Heavy Duty Cold-rolled Steel |
| Surface | Black Wet Paint with Texture Coat |
| Colour | Black / Customizable Colour |
| Power Solution Option | |
| Power Supply | 1U Redundant Power Supply |
