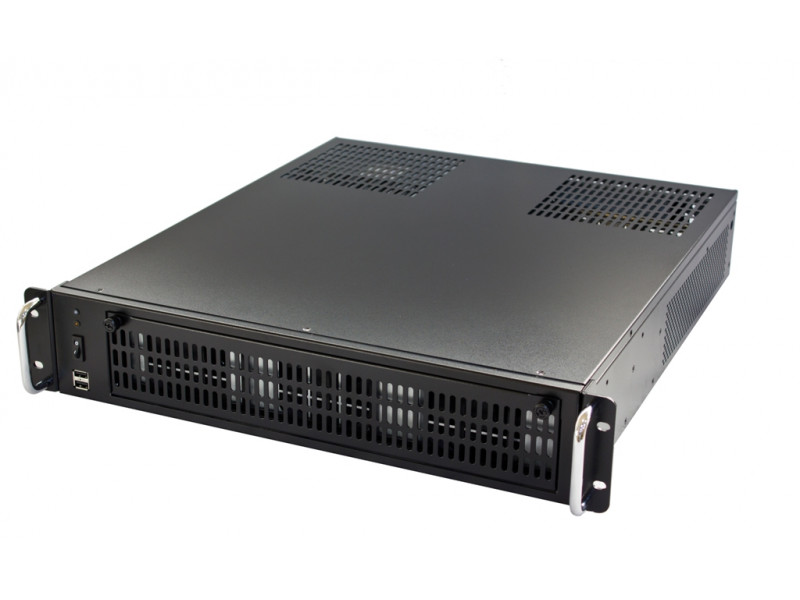

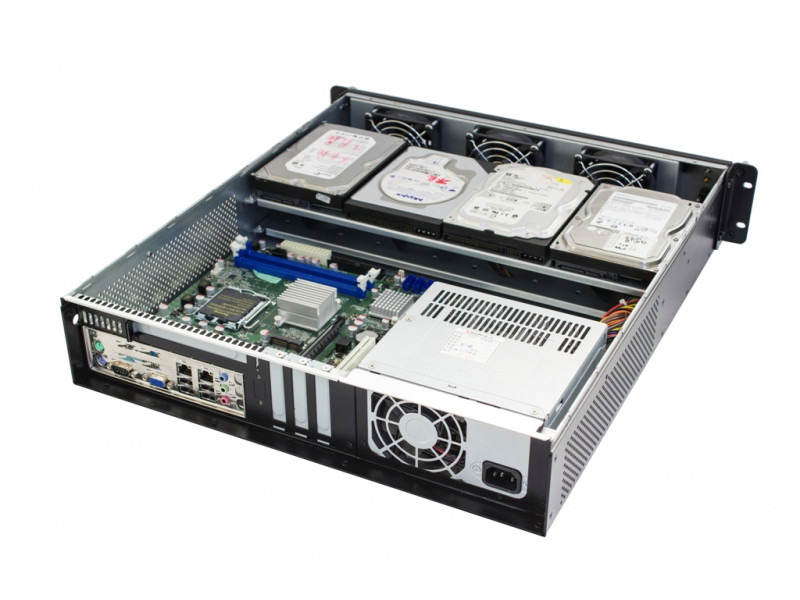

TAWA-T2308
2U Industrial Rackmount Chassis for Micro-ATX MB(9.6"x9.6")
· Support 3 x low-profile expansion slot for PCIe or PCI card
· Excellent cooling with x 8cm Fan(2 ball bearing)
· Support up to 8 x 3.5" HDD + 4 x 2.5" HDD
· Support 3 x low-profile expansion slot for PCIe or PCI card
· Excellent cooling with x 8cm Fan(2 ball bearing)
· Support up to 8 x 3.5" HDD + 4 x 2.5" HDD
Specification
| Front Panel | |
| Power Switch | 1 |
| LED Indicators | HDD x1; Power x1 |
| USB 2.0 Port | 2 |
| Back Panel | |
| Standard I/O Shield | 1(Not Included) |
| Expansion Slot | 3(Low Profile); 1(Full Size) |
| AC Socket | 1 |
| Internal Structure | |
| System Cooling | 8cm Fan(2 Ball Bearing) x3 |
| Memory Height | Accept Standard Size |
| HDD/SSD # and type | 2.5" x4 and 3.5'' x8 |
| Mechanical & Processing | |
| Dimensions | W:19.00"(482.6mm) x D:19.70"(500.4mm) x H:3.46"(88mm) |
| Applied M/B Form Factor | Micro-ATX |
| Material | Heavy Duty Cold-rolled Steel |
| Surface | Black Wet Paint with Texture Coat |
| Colour | Black / Customizable Colour |
| Power Solution Option | |
| Power Supply | PSII 300W/400W/500W/600W Power Supply or Mini Redundant |
