TAWA-T2340


2U Industrial Rackmount Chassis for Micro-ATX MB(9.6"x9.6")

· Support 4 x low-profile expansion slot for PCIe or PCI card
· Excellent cooling with x 8cm Fan(2 ball bearing)
· Support 4 x 3.5" SATA tray
· Front accessible connectors with CF card reader slot



Specification

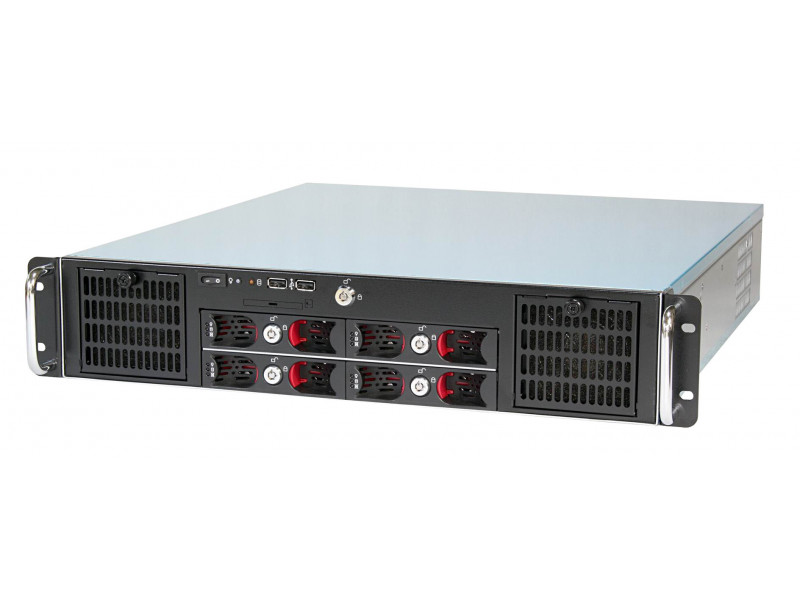

Front Panel
Power Switch 1
LED Indicators HDD x1; Power x1
USB 2.0 Port 2
HDD/SSD # and type 3.5" x 4
Back Panel
Standard I/O Shield 1(Not Included)
Expansion Slot 4(Low Profile)
AC Socket 1

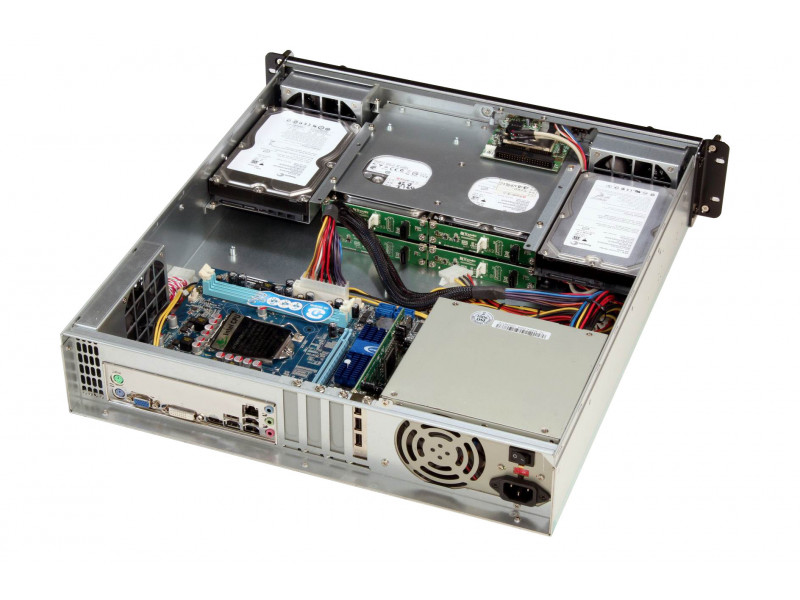

Internal Structure
System Cooling 8cm Fan(2 Ball Bearing) x3
Memory Height Accept Standard Size
HDD/SSD # and type 2.5" x2 and 3.5'' x2
Mechanical & Processing
Dimensions W:19.00"(482.6mm) x D:19.13"(485.9mm) x H:3.46"(88mm)
Applied M/B Form Factor      Micro-ATX
Material Heavy Duty Cold-rolled Steel
Surface Black Wet Paint with Texture Coat
Colour Black / Customizable Colour
Power Solution Option
Power Supply PSII 300W/400W/500W/600W Power Supply
