TAWA-T2342
2U Industrial Rackmount Chassis for Micro-ATX MB(9.6"x9.6")
· Support 4 x low-profile expansion slot for PCIe or PCI card
· Support 4 x 3.5" SATA tray
· Equipped with CF reader slot and lockable front panel
· Support 4 x low-profile expansion slot for PCIe or PCI card
· Support 4 x 3.5" SATA tray
· Equipped with CF reader slot and lockable front panel
Specification

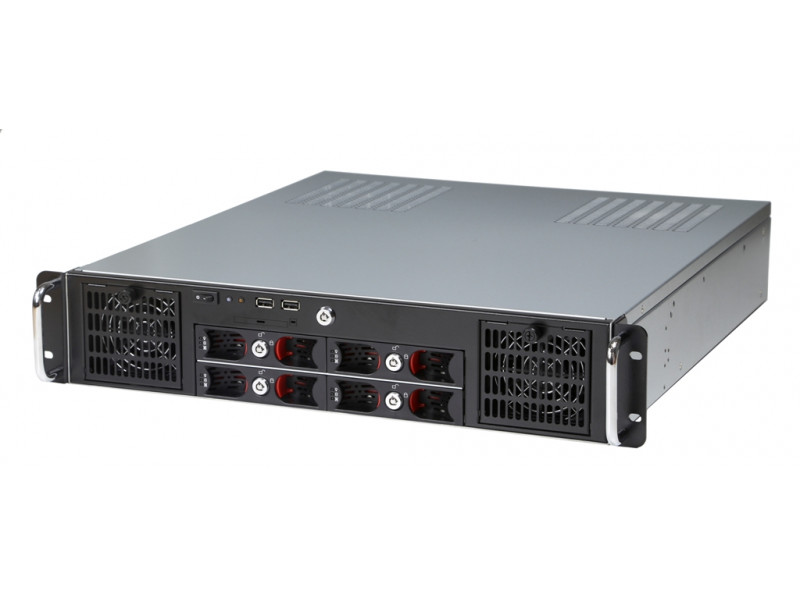

| Front Panel | |
| Power Switch | 1 |
| LED Indicators | HDD x1; Power x1 |
| USB 2.0 Port | 2 |
| Compact Flash Slot | 1 |
| HDD/SSD # and type | 3.5" x 4 |

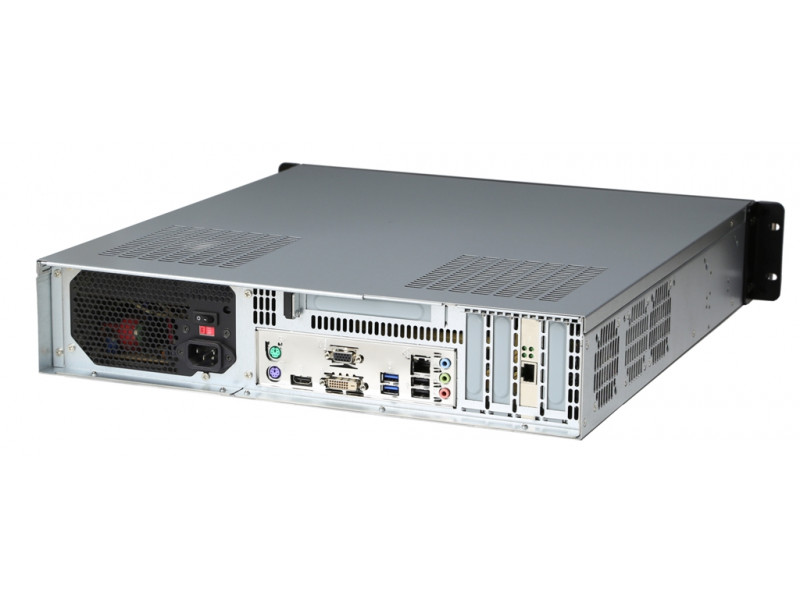

| Back Panel | |
| Standard I/O Shield | 1(Not Included) |
| Expansion Slot | 4(Low Profile)+1(Full Size) |
| AC Socket | 1 |

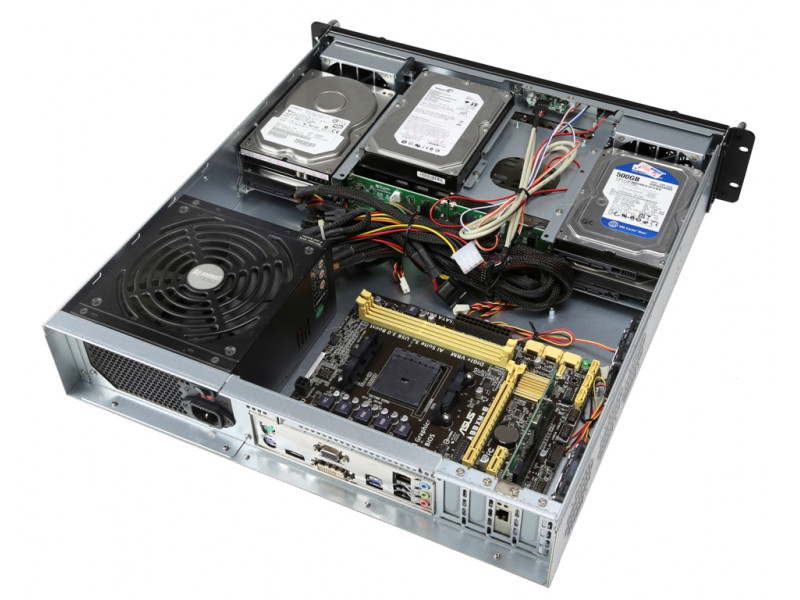

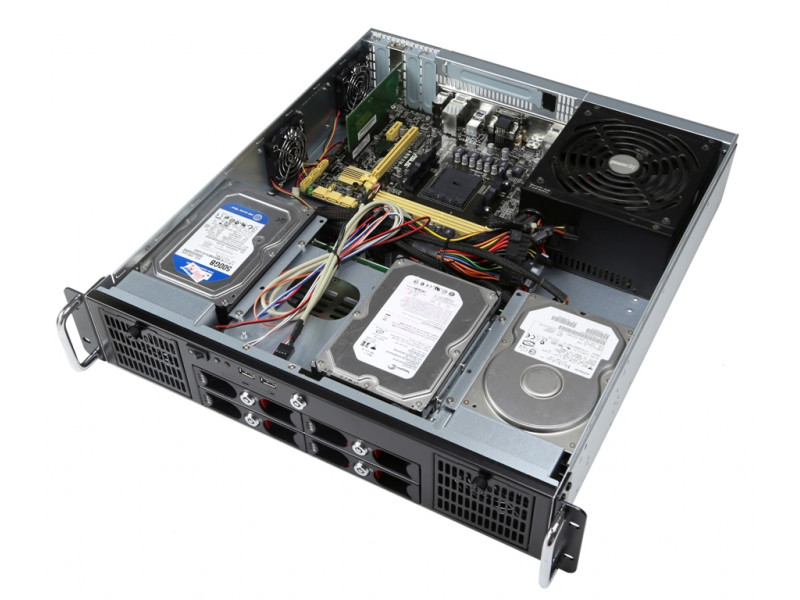

| Internal Structure | |
| System Cooling | Front: 8cm Fan(2 Ball Bearing) x2 Side: 6cm Fan(2 Ball Bearing) x3 |
| Memory Height | Accept Standard Size |
| HDD/SSD # and type | 2.5" x2 and 3.5'' x4 |
| Mechanical & Processing | |
| Dimensions | W:19.00"(482.6mm) x D:18.20"(488mm) x H:3.46"(88mm) |
| Applied M/B Form Factor | Micro-ATX |
| Material | Heavy Duty Cold-rolled Steel |
| Surface | Black Wet Paint with Texture Coat |
| Colour | Black / Customizable Colour |
| Power Solution Option | |
| Power Supply | PSII 300W/400W/500W/600W Power Supply or Mini Redundant |
