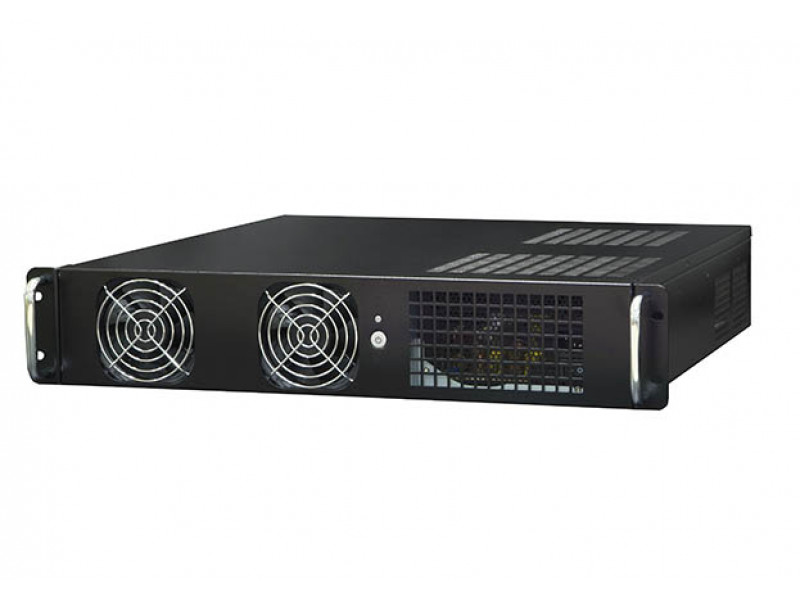

TAWA-T2400
2U Industrial Rackmount Chassis for Baby-ATX MB(9.6"x12")
· Support up to 2 x 3.5" SATA tray
· Support 6 x expansion slot for PCIe or PCI card
· Excellent cooling with 2 x 8cm Fan(2 ball bearing)
· Support up to 2 x 3.5" SATA tray
· Support 6 x expansion slot for PCIe or PCI card
· Excellent cooling with 2 x 8cm Fan(2 ball bearing)
Specification
| Front Panel | |
| Power Switch | 1 |
| LED Indicators | HDD x1; Power x1 |
| System Cooling | 8cm Fan(2 Ball Bearing) x2 |
| Back Panel | |
| Standard I/O Shield | 1(Not Included) |
| Expansion Slot | 6 |
| AC Socket | 1 |

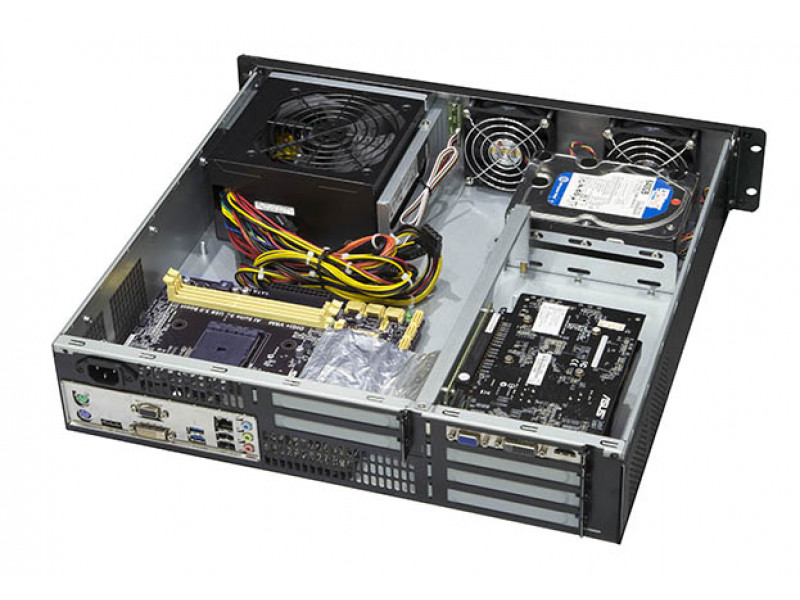

| Internal Structure | |
| Memory Height | Accept Standard Size |
| HDD/SSD # and type | 3.5'' x2 |
| Mechanical & Processing | |
| Dimensions | W:19.00"(482.6mm) x D:18.20"(488mm) x H:3.46"(88mm) |
| Applied M/B Form Factor | Baby-ATX(9.6"x12") |
| Material | SGCC |
| Surface | Black Wet Paint with Texture Coat |
| Colour | Black / Customizable Colour |
| Power Solution Option | |
| PSII Power Supply | PSII 300W~1200W Power Supply |
