TAWA-T2420
2U Industrial Rackmount Chassis for Baby-ATX MB(9.6"x12")
· Support 2 x 3.5" SATA tray
· Support 3 x expansion slot for PCIe or PCI card
· Excellent cooling with 2 x 8cm fan
· Support 2 x 3.5" SATA tray
· Support 3 x expansion slot for PCIe or PCI card
· Excellent cooling with 2 x 8cm fan
Specification

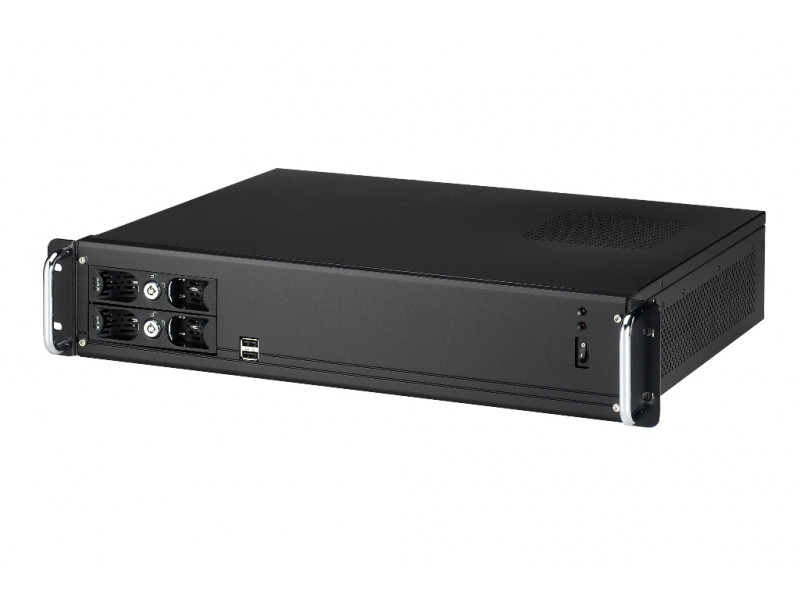

| Front Panel | |
| Power Switch | 1 |
| LED Indicators | HDD x1; Power x1 |
| USB 2.0 Port | 2 |
| HDD/SSD # and type | 3.5'' x2 |

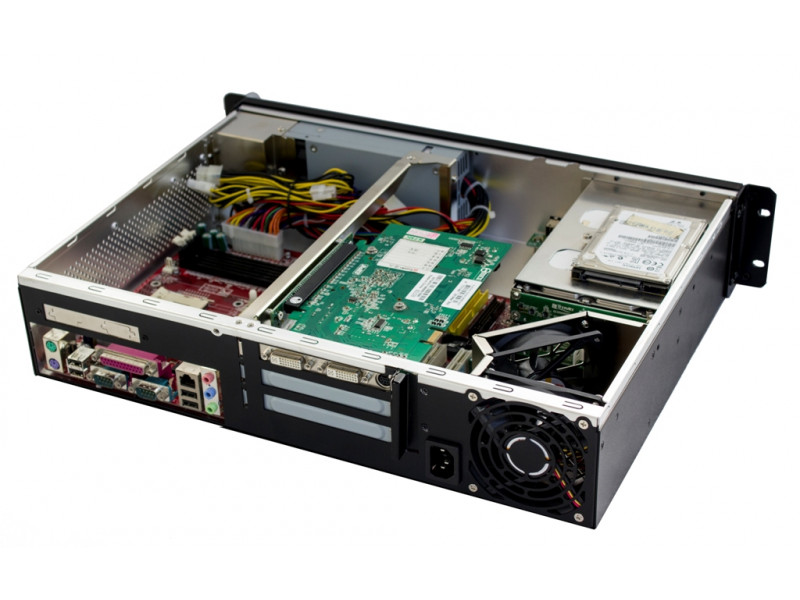

| Back Panel | |
| Standard I/O Shield | 1(Not Included) |
| Expansion Slot | 3(Can Add up to 4 Slots) |
| AC Socket | 1 |
| Internal Structure | |
| System Cooling | 8cm Fan(2 Ball Bearing) x2 |
| Memory Height | Accept Standard Size |
| HDD/SSD # and type | 2.5'' x1 |
| Mechanical & Processing | |
| Dimensions | W:19.00"(482.6mm) x D:13.7"(384.3mm) x H:3.46"(88mm) |
| Applied M/B Form Factor | Baby-ATX(9.6"x12") |
| Material | Heavy Duty Cold-rolled Steel |
| Surface | Black Wet Paint with Texture Coat |
| Colour | Black / Customizable Colour |
| Power Solution Option | |
| Flex ATX Power Supply | Flex ATX 250/300/400watts Power Supply(AC 110~240V Auto-switching) |
